European Quality 5 Axes CNC Router Machine Woodworking ATC Nesting Drilling Boring Surface Design Cutting Saw
¥876,698.48
- USD: $126,157.50
- AUD: A$186,589.34
- GBP: £100,142.62
- EUR: €116,617.59
- JPY: ¥18,888,542
The European Quality 5-Axis CNC Router Machine is a high-performance woodworking solution designed for precision tasks such as ATC nesting, drilling, boring, surface design, and cutting. Equipped with advanced 5-axis technology, it offers exceptional versatility for complex woodwork, including intricate cuts and designs, while integrating sawing capabilities for added functionality. Ideal for professional woodworking applications, it ensures efficiency and accuracy.
Description
Product descriptions from the supplier

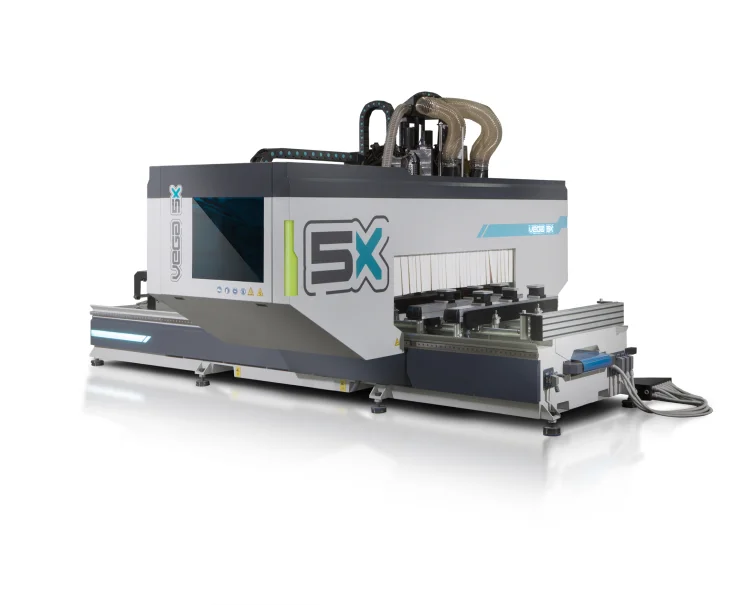

VEGA 5X, guarantees high performance even in 5 Axis CNC applications. It provides optimum processing for creative results and top-level use. VEGA 5X can be used in your door, window, furniture, kitchen and bathroom equipment, and solid wood processing applications. Apart from wood, materials such as aluminum, plastic, plexiglass, and alucobond can also be processed.
www.boygatech.com
+90 552 694 59 34 (Whatsapp available)
[email protected]
with 5 Axis Application

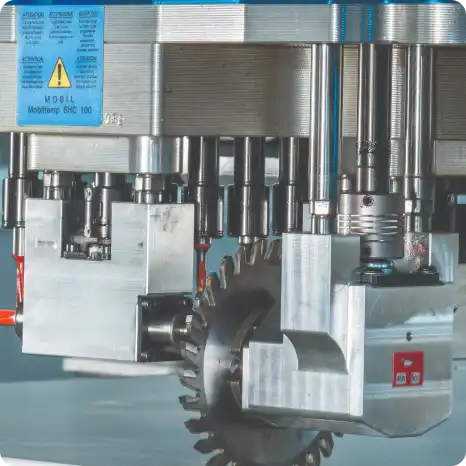

Boring Unit Based on Customer Needs

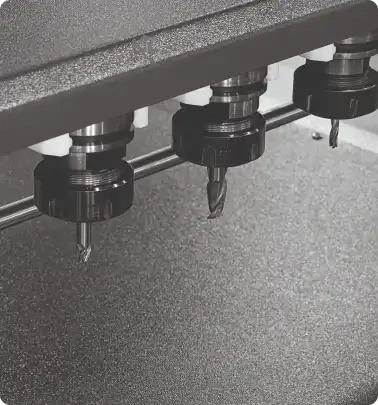

LINEAR TOOL CHANGER UNIT

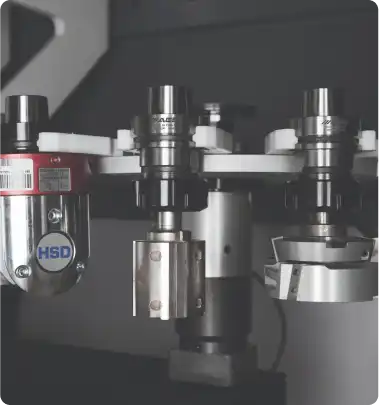

ROTARY TOOL CHANGER UNIT
|
Working area : 1550×3200 mm

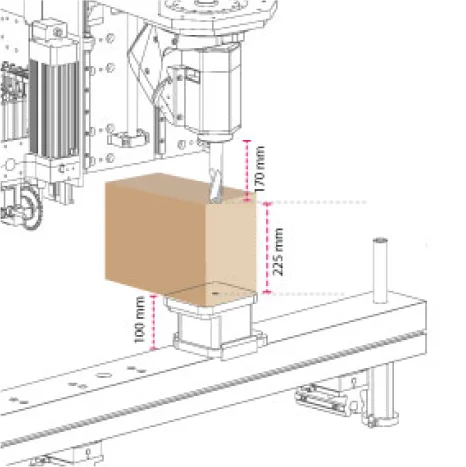

Z Axis : 470 mm
A Axis : Endless
B Axis : Endless
Spindle Motor Power : 11 kW HSK F63 Axis Spindle Motor (Liquid Cooled System)
Spindle Engine Speed : 24.000 rpm
Boring Unit : 10 V – 3×2 H – 1 S
CAD/CAM Program : Alphacam Ultimate Router 3D (One Post)
Working Table : Console Table
Vacuum Console Number : 6 pcs
Axis Speeds (X-Y-Z) : 80 – 80 – 20 m/min
Axis Speeds (A-C) : 120°/sec
Vacuum Pump Power : 140 m³/h 5,4 hp
Working Area : 4 Area
Conveyor Belt : Optional
Control Unit : PC Based
Installed Power : 30 kw
Weight : 4500 kg
|
Boygatech operates with years of experience in the machinery sector with high quality and high efficiency. In order to increase the effectiveness of our company in the international market, we carry forward our export targets in our field of expertise.
We offer an experience beyond the demands and expectations of our customers by quickly adapting our machines to the developing technology. Our main priority is customer satisfaction, energy saving, efficiency and domestic production.
Our company serves as a direct factory sales point. Our company has edge banding machines, CNC drilling machines, CNC router, mdf multiple rip saw machines, wooden door production machines, wrapping machines, painting machine, packaging machines.
Our company also carries out turnkey wooden door and furniture factory projects.
Specification
Additional information
| Weight | 990 kg |
|---|
