Name: ▷ Buy New Cnc Eps Styrofoam Cutting and Forming Machine: 3d foam cutting machine [Super Serial] () - Available at MachineryGenie.com
SKU: 1600441276091-2022
Price: 24300.00 USD
Availability: InStock

Description

Product descriptions from the supplier

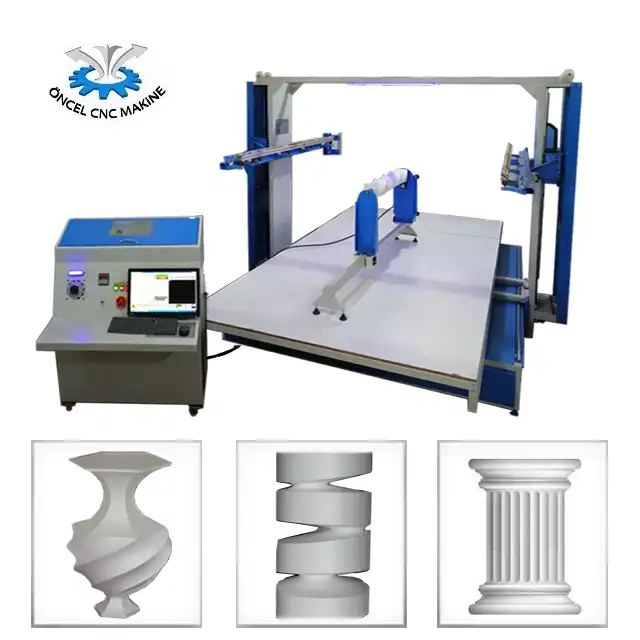

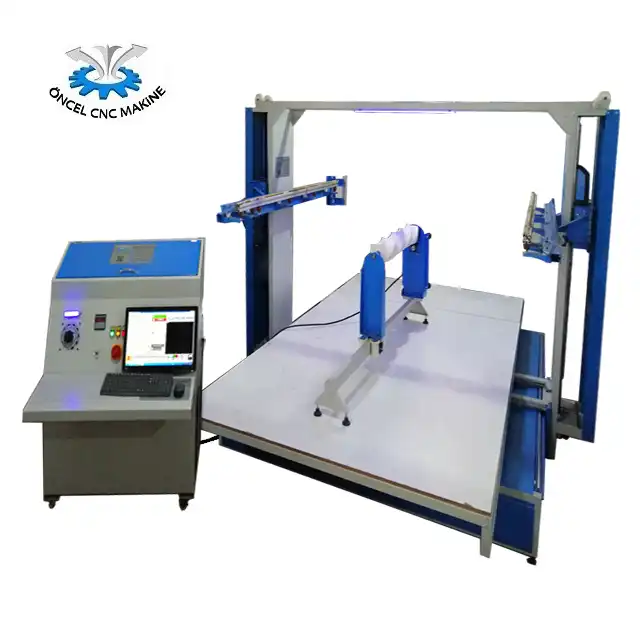

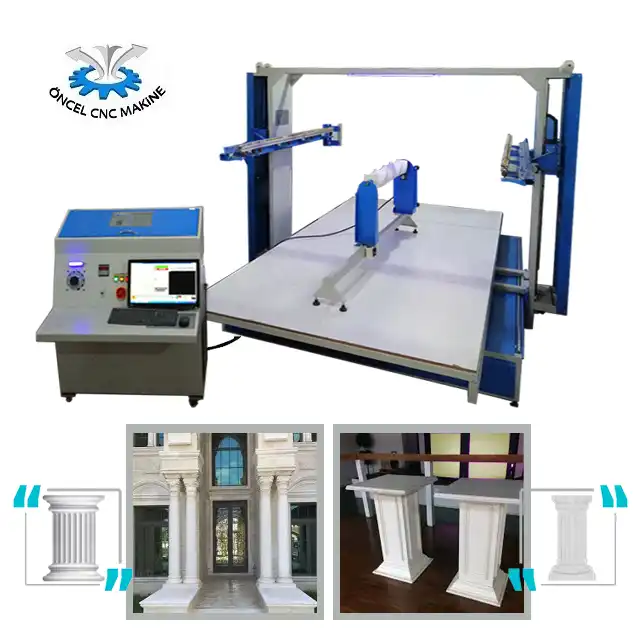

Cnc Eps Styrofoam Cutting Machine

Öncel Cnc Makine

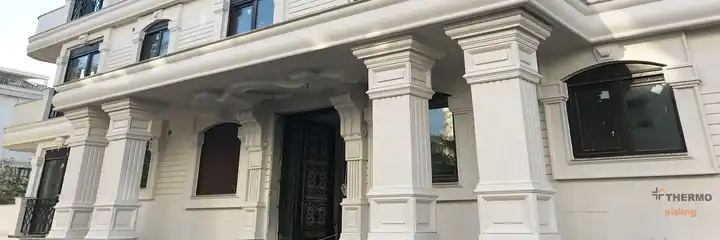

Cnc Eps Styrofoam Cutting Machine is Used in The Production Of Products Such As Frames, Panels, Crown, Floor Molding, Applique Keystone, Which Are Used For insulation And Decoration On Exterior Facades.

Cnc Eps Styrofoam Cutting Machine is used in the production of products such as jambs, panels, crowns, floor moldings, applique keystones, which are used for insulation and decoration on exteriors.

Cnc styrofoam cutting machine makes cuts with 3D cuts. Stropier cutting machine creates 3D cutting by giving shapes such as 3d etc. to styrofoam. The businesses that prefer these segments the most are hotels, cafes and restaurants. These businesses use it for decoration purposes.

Styrofoam Cnc Cutting Machine

You can contact us for more information about Cnc Styrofoam Cutting Machine. You can learn more by visiting our social media and websites. If you want to know more about You can contact us. You can get more information by visiting our web pages.

Or you can follow us on social media and take advantage of our posts. You can reach our website by clicking the link we will provide.

Machine Dimensions		3700 x 3250 x 2500 mm
Control Panel		1000 x 800 x 1100 mm
Circular Tray Dimensions		X = 3700 mm Y = 2000 mm
Cutting Capacity of the Machine		Capacity of 2 Blocks on Vertical Arm, 4 Blocks on Horizontal Arm
Number of Wires That Can Be Connected		26 Pieces 0.30 Mm Wire Binding Capacity
Maximum Cutting Dimensions		X = 2100 mm Y = 1450 mm
Resistance Height		1200 mm
Horizontal Resistance Length		2400 mm
Energy Use of the Machine		Min. 1kw, Maks. 5kw
X-Axis Engine Power and Quantity		2 Engines with 4.5NM Power
Y-Axis Engine Power and Quantity		2 Engines with 4.5NM Power
Machine Control Program		Mach3 Controller
G Code Program		lazy camera
Movement System of the Machine		oncLinear Rail and Rack Gear
Machine Weight		350 KG

3d Rotary Table

Oncel Cnc Machine

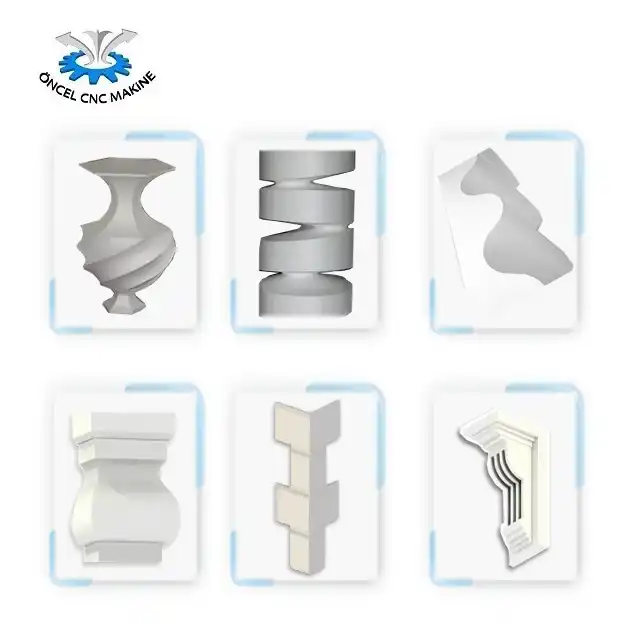

3d Rotary Table Module Allows Us To Make 3-Dimensional Cuts By Attaching To The Cnc Styrofoam Cutting Machine. Products Such As Polygon, Auger Polygon, Curved Auger Polygon Are Made With 3d Table Module.

3d Table: 3D Styrofoam Cutting Machine Prices Are You Curious? The cutting process is started by placing the 3d styrofoam cutting machine on the cnc eps cutting machine bench. You can move your 3d table with the help of the keyboard while you are on the cnc eps cutting bench. It makes hot cuts with the help of titanium wire. Since it cuts with steam, it cuts clean and useful styrofoam.

3D Styrofoam Machine: It allows you to shape styrofoam by cutting it in 3d. These styrofoam ornaments are used for exterior 3d wall and ceiling decoration etc. can be used as The businesses that prefer these styrofoam the most are hotels, restaurants and cafes. If you want to own this machine. You can have machines guaranteed for 2 years with the assurance of Öncel Cnc Makine

Module Dimensions		2000 x 240 x 750 mm
MDF Table Diameter Dimensions		500 mm
Maximum Cutting Dimensions		X = 1800 mm Y = 1200 mm D = 1200 MM
Module Energy Consumption		0,25 KW
Module Motor Power		4.5 Node
Module Control Program		Mach 3
Module Weight		40 KG
