Description

Product descriptions from the supplier

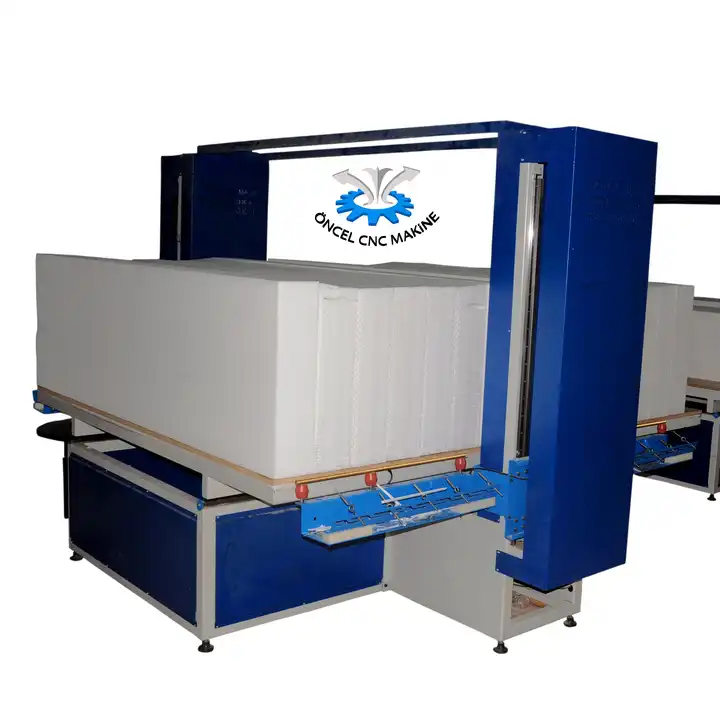

Cnc Xps Stropiyer Cutting Machine

Cnc Xps Stropiyer Cutting Machine: Öncel Cnc Makine It is Used in The Production Of Extrude Polystyrene Products Such As Strophier-Lath-Curtain Used in interior Walls

Cnc Xps Stropier Cutting Machine is used in the manufacture of xps (Extruded Polystyrene) products such as stropier-cheetah-drapery used in interior walls.

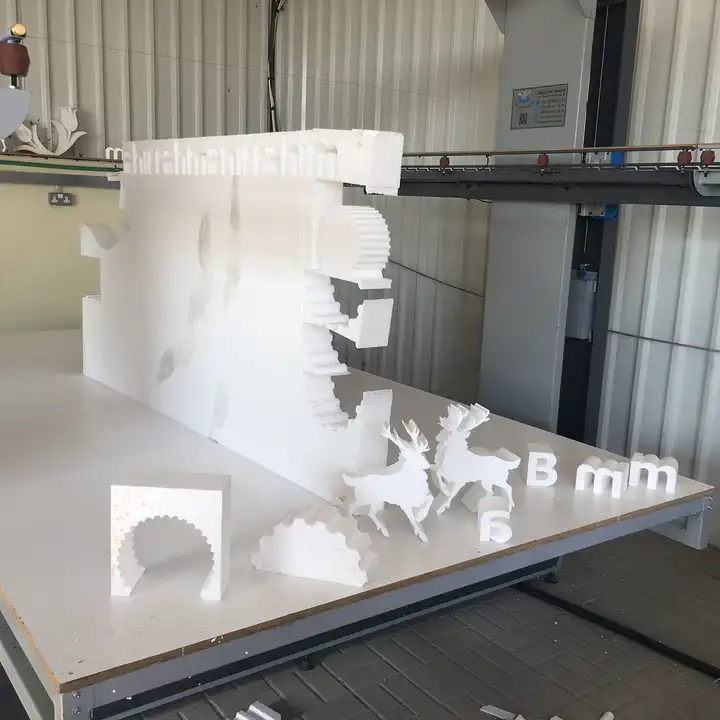

Cnc machines vary according to the type of workbench and workbench. These changes may also vary according to prices and demands. Siensi machines workbenches; we can say it as cutting, spraying, mixing. Cnc cutting styrofoam cuts cleanly and conveniently. Spraying makes a mortar coating on the styrofoam. Mortar mixing, on the other hand, allows you to obtain useful mortar by mixing the mortar with acrylic. Most preferred businesses; Hotels, cafes and the most preferred construction sector.

Cnc machine prices vary according to bench and machine types. If you prefer xps cut instead of eps cut, the price changes. And if you prefer our new R&D studies, it will be good for both your business and the employee. That’s why we prefer our new R&D studies.

Machine Dimensions		2100 x 2950 x 1800 mm
Control Panel		1150 x 800 x 1100 mm
Circular Tray Dimensions		X=2410 mm Y=2000 mm
Cutting Capacity Of The Machine		Capacity of 2 blocks in the vertical arm, 10 blocks in the horizontal arm
Number Of Wires That Can Be Connected		46 pcs 0.30 mm wire binding capacity
Maximum Cutting Dimensions		X=1000 mm Y=1000 mm
Resistance Height		750 mm
Energy Usage Of The Machine		Min. 1kw, Max. 5kw The highest 8 KW
Power And Quantity Of Engine At X-Axis		2 Engines With 4.5NM Power
Power And Quantity Of Engine At Y-Axis		2 Engines With 4.5NM Power
Machine Control Program		Mach3 Controller
G-Code Program		Lazycam
Movement System Of The Machine		Linear Rail And Rack Gear
Weight Of The Machine		450

Attachments (PDF)

Specification

Additional information

Weight	990 kg
