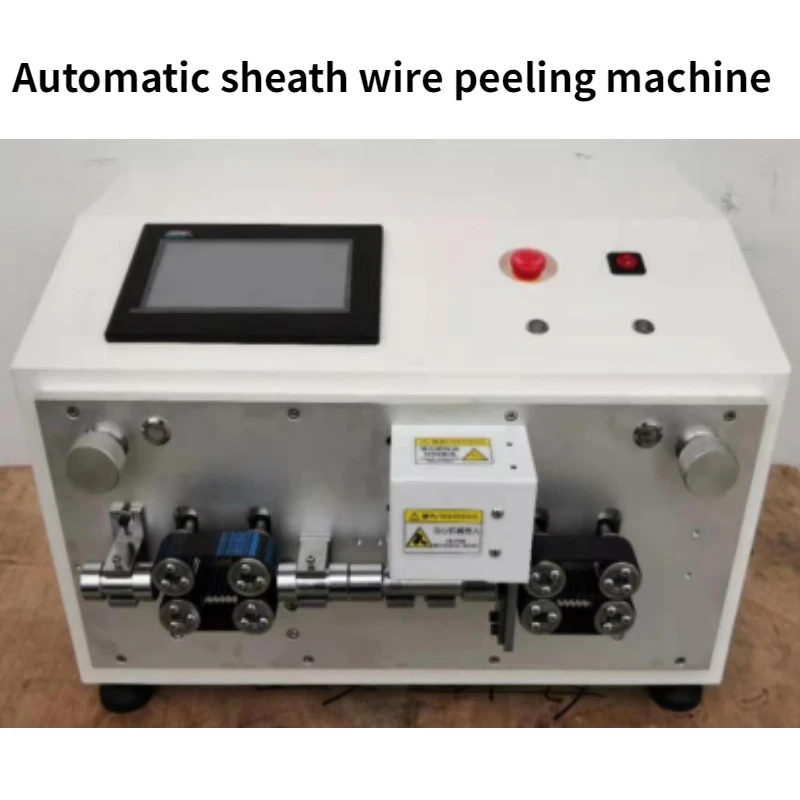

Automatic Computer Sheath Wire Stripping Machine Multifunction Sheath Core Wire Stripper Machine Sheath Cable Stripping Machine – 110V

$8,050.53

  • AUD: A$12,502.23
  • GBP: £6,709.96
  • EUR: €7,813.84
  • JPY: ¥1,265,608
  • CNY: ¥58,742.30

100 in stock

  Chat Now
SKU: 1005005658475423-110v Categories: ,

$8,050.53

  • AUD: A$12,502.23
  • GBP: £6,709.96
  • EUR: €7,813.84
  • JPY: ¥1,265,608
  • CNY: ¥58,742.30

Description

  • Application: electronic
  • Model Number: BTXBPJ
  • Brand Name: XMSJ
  • Origin: Mainland China
  • Certification: CE
Product parameters

Model: JYF8-16 (belt)
Voltage: 220V/110V (optional)
Conduit diameter: 6.0-16MM
Blade material: imported high-speed steel
Drive mode: 8-wheel drive
Cutting length: 1~99999.9MM
Line pressure adjustment: manual
Peeling length: Front end: 300MM; Rear end: 150MM
Pulse equivalent: no error within 5MM
Intermediate stripping: 15 sections
Drive motor: stepper motor
Cutting wire core: 0.1-16MM ² (Multi core sheath)
Production efficiency: 1200-3000 Pcs/hour
Cutting tolerance: 0.002 * L MM
Note function: automatic wire entry and exit, automatic and manual wheel lifting, output setting, and timed start
External dimensions: 59 * 45 * 39cm
Net weight: 65KG

This machine is suitable for 0.1 square to 16 square BVR multi-core cables,. At the same time, it can peel 2 layers of sheath and is compatible with multi-core power cords (outer diameter 3mm-15mm). The front end is peeled 150mm-500mm, and the back end is peeled within 150mm.
