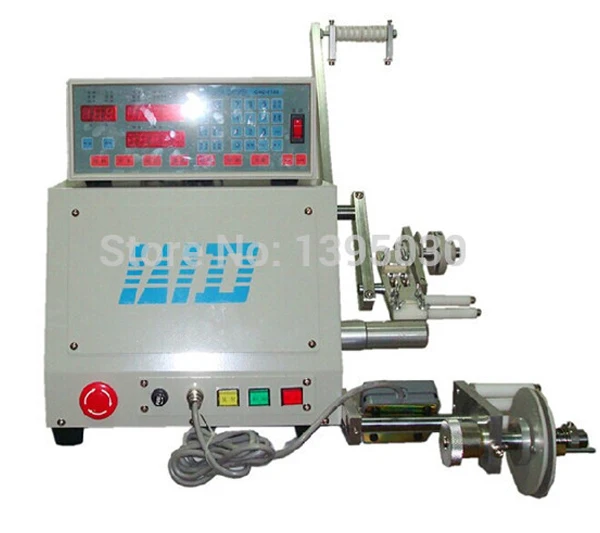

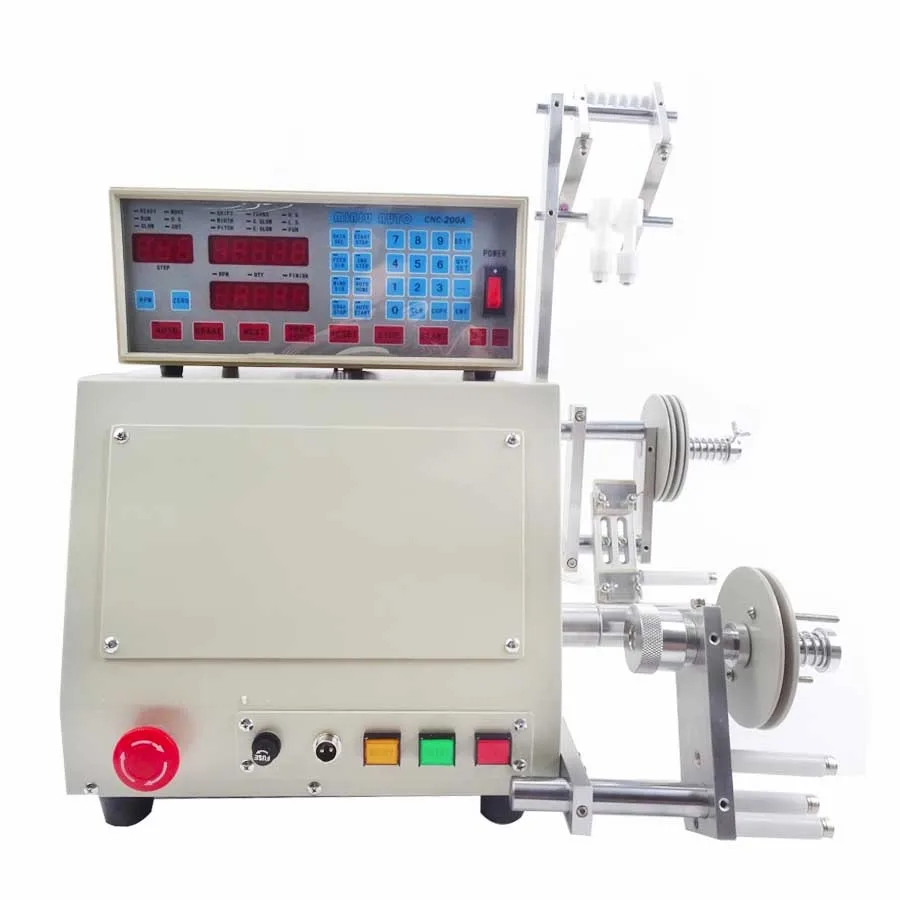

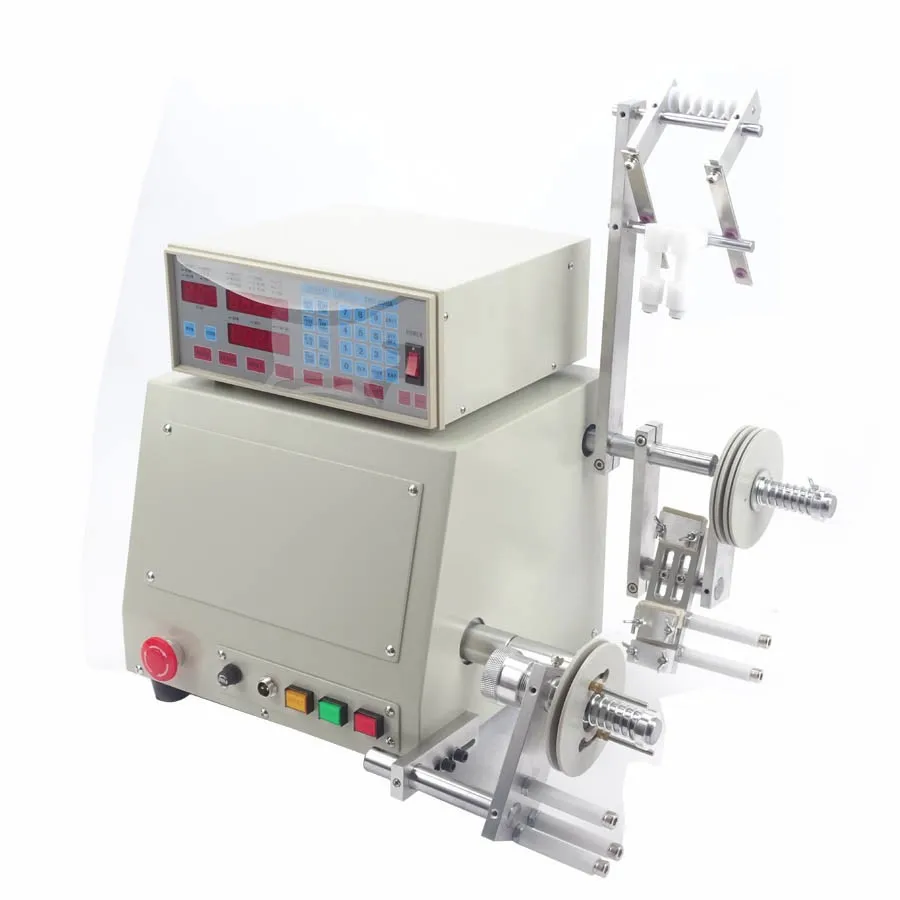

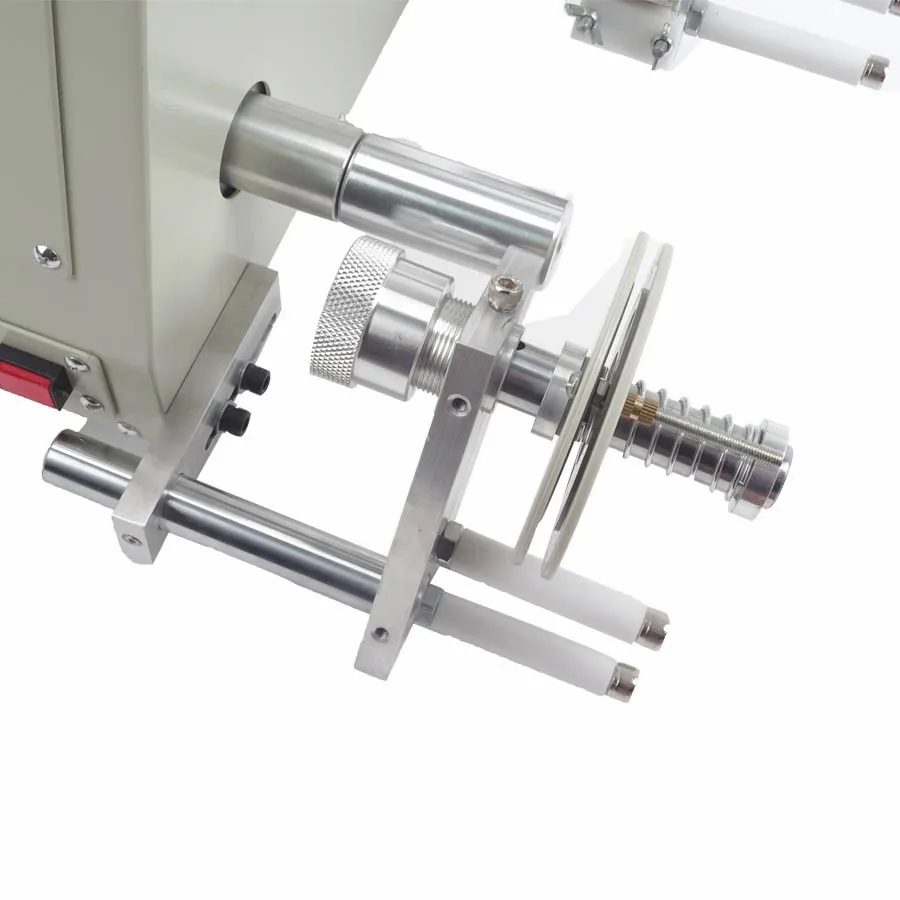

Automatic Coil Winder 110V/220V High Quality Coil Winding Machine Computer Control 0.03-1.2mm Wire Winder

Feature

1.This series of automatic filament winder computer controller adopts the latest synchronous winding , it is with high precision and there will be no obstacles appear when in excessive speed winding displacement process .

2.Super elevated wisdom model , it has self-inspecting functions, including the errors of the equipments ,excessive speed tracking and the calibration of the speed.

3.Has vernier caliper functions and can measure the winding width and starting point easily.

4.The speed of the cop motor can be changed at random when in operation , and the strand oscillator  also can synchronize with it.

5.After the startup of the cop motor , the time of speed growing can be changed at random depend on the type of the machines.

6.Obtain winding excessive speed detecting function , and it can reduce the winding speed automatically to the most steady state.

7.Can settle data: starting point, wire gage, winding displacement width, circles, speed of starting the winding , stopping slow-speed, winding speed, slow lathe speed , winding displacement direction , winding direction , two-terminal stopping , automatic reset, automatic start (job-hopping winding)

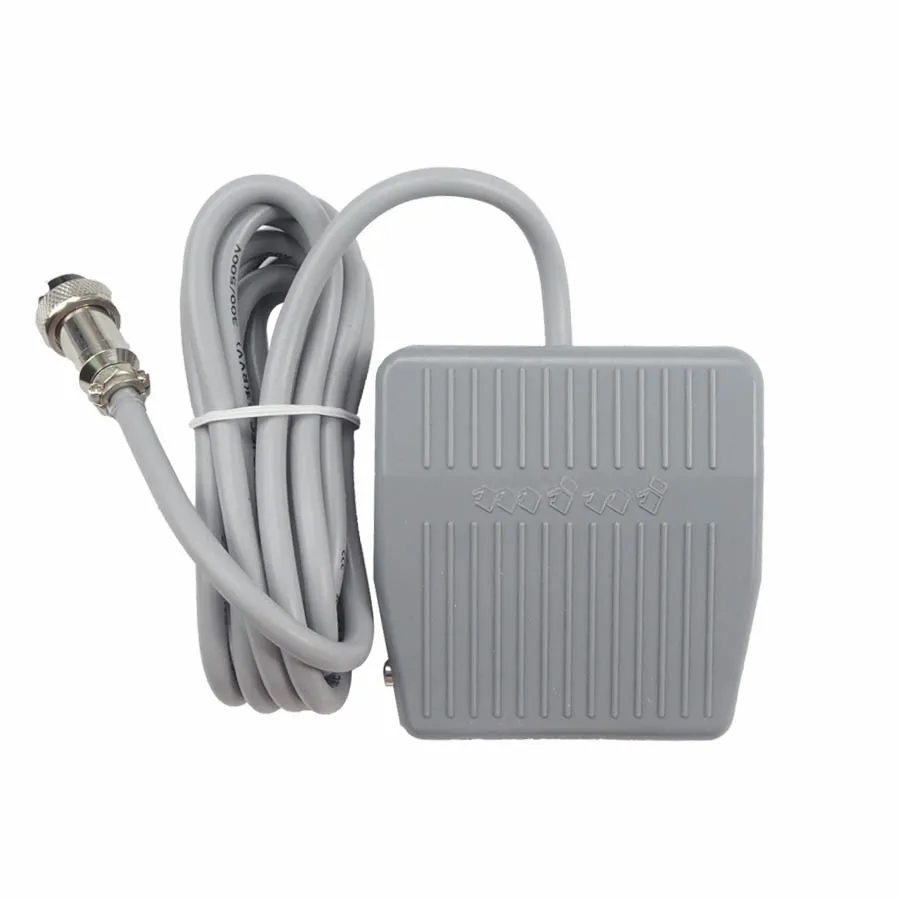

8.Foot-switch connection for better efficiency.

9.Winding parameters and options can be set independently for each step.

10.Memory capacity accommodates 999 steps of parameters with off-power memory retention.

Specification

power voltage:single phase AC 220V  50HZ(for 110V voltage,we suggest that you can prepare a step up 110V/220V volatge converter)

Cop motor:three phase machine 400W(1/2hp)

winding displacement machine:step-servo motor

Spindle motor: Brushless DC

Numbers of cop:1

Windable wire gage:0.03-1.2mm

Maximum winding width:108mm

Maximum framework diameter:200mm

Maximum turning speed of cop:6000circles/minute,speed adjust function

Storable winding groups:999 groups

Counting resolution:0.1 circle

Complete appliance weight:30kg

Size:510*490*450mm
