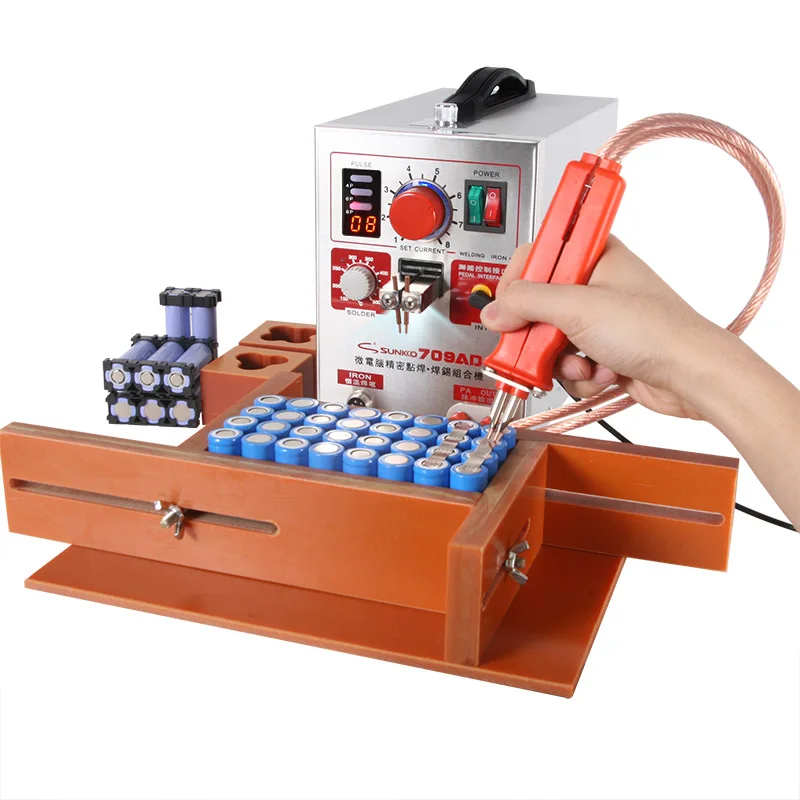

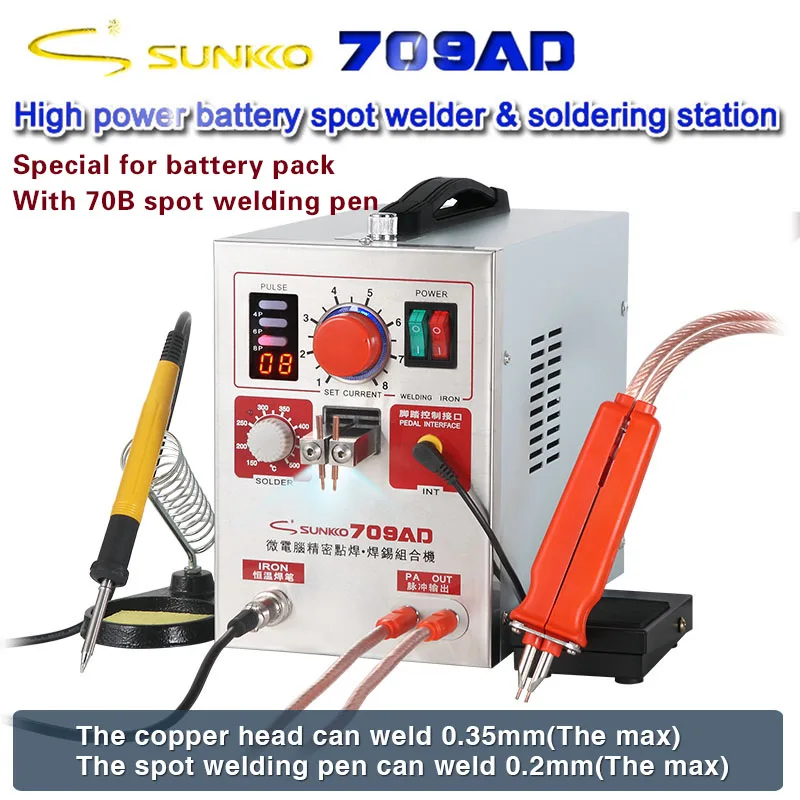

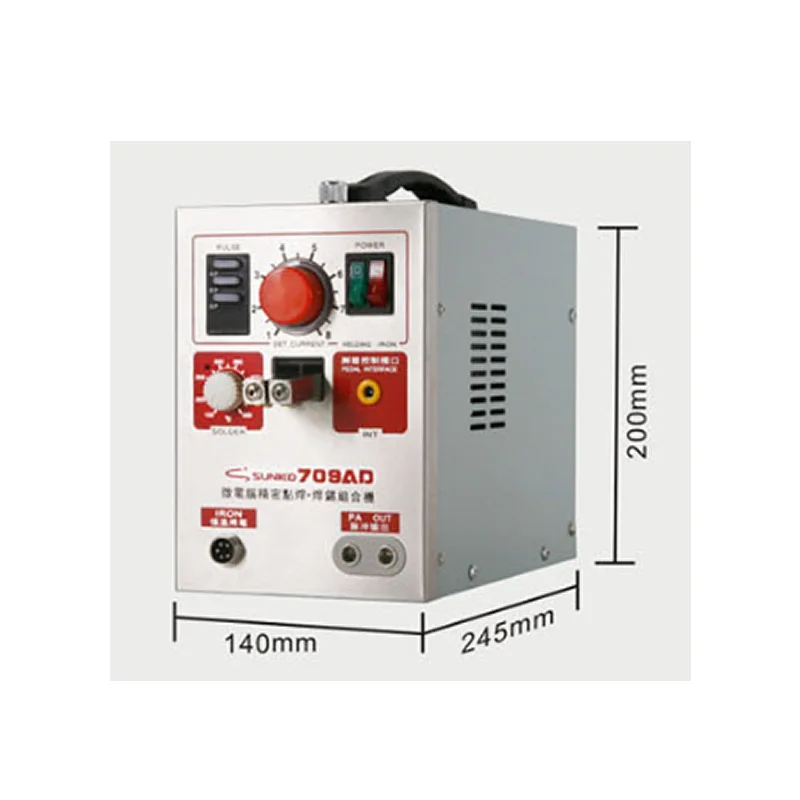

709AD Spot Welding Machine 3.2kw Pulse Induction Automatic Spot Welder For 18650 Battery Pack With S70BN Pen

709AD Spot Welding Machine 3.2kw Pulse Induction Automatic Spot Welder For 18650 Battery Pack With S70BN Pen

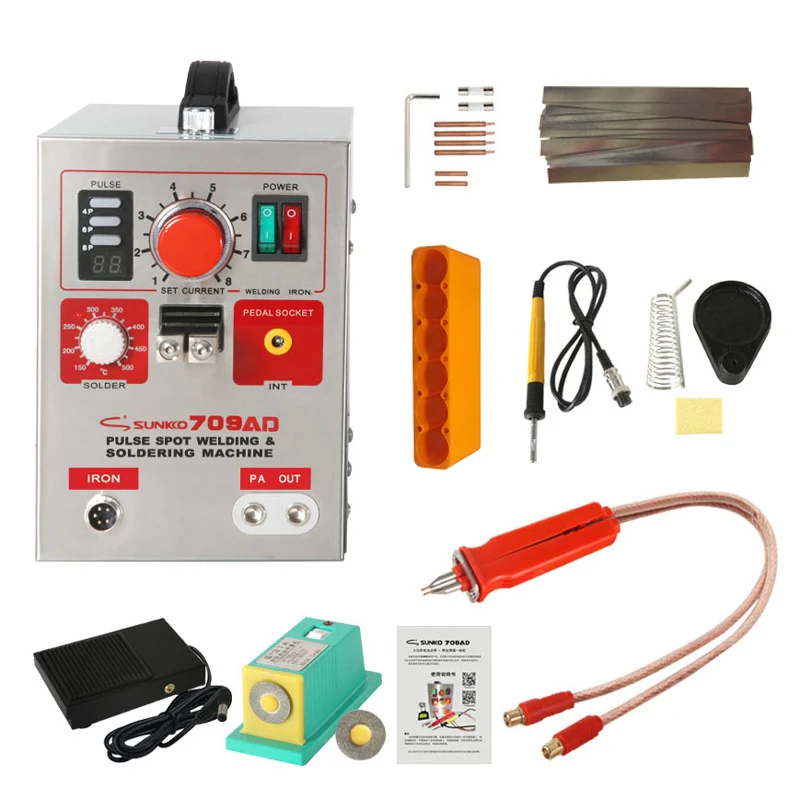

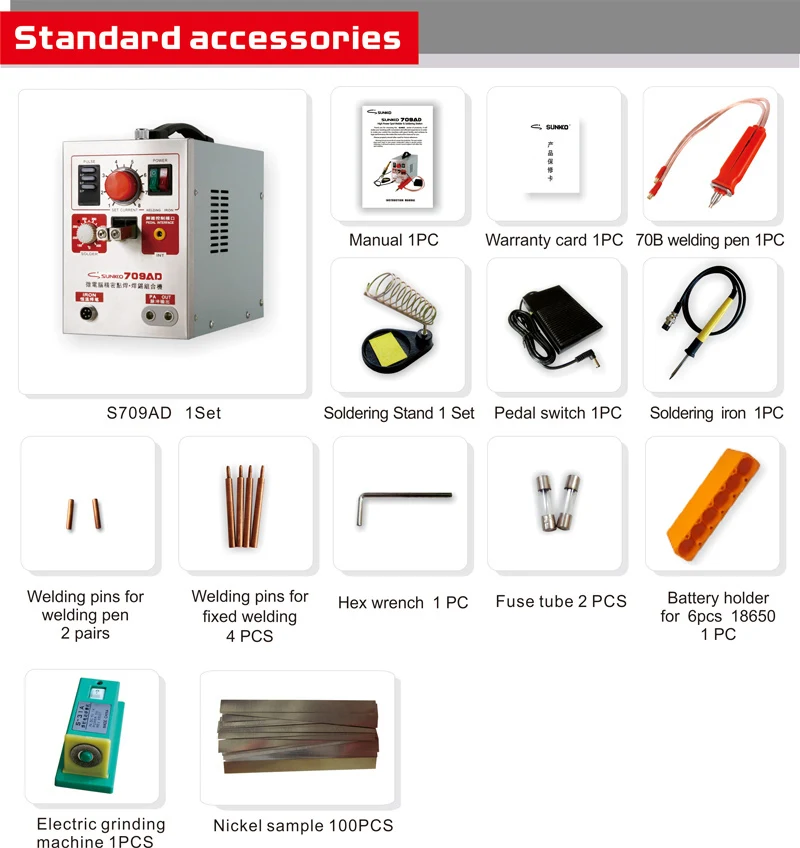

Packing list

709ADmain machine:1pc

Instruction:1

Warranty card:1

Constant temperature soldering pen:1

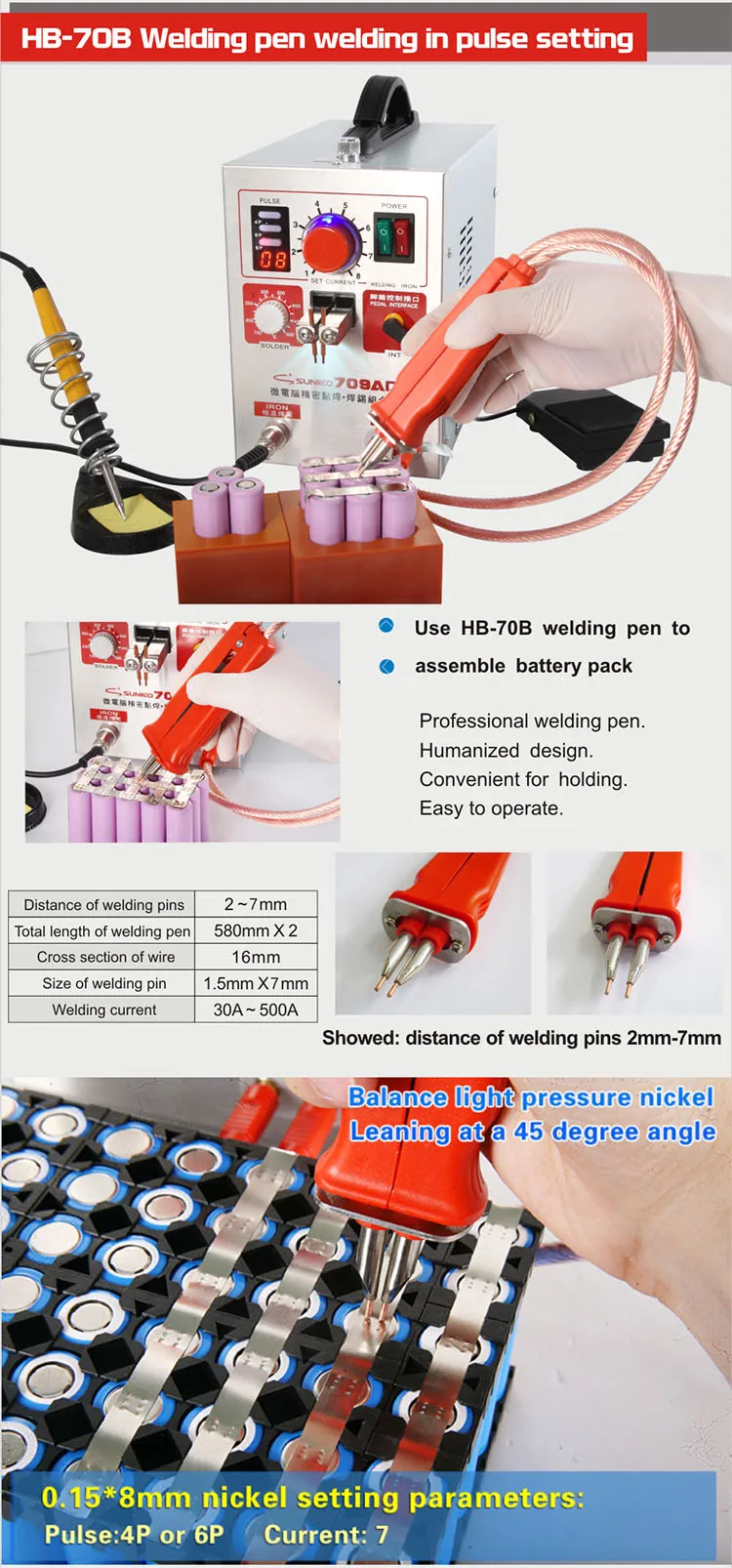

70Bspot welding pen:1

Solder pen bracket:1

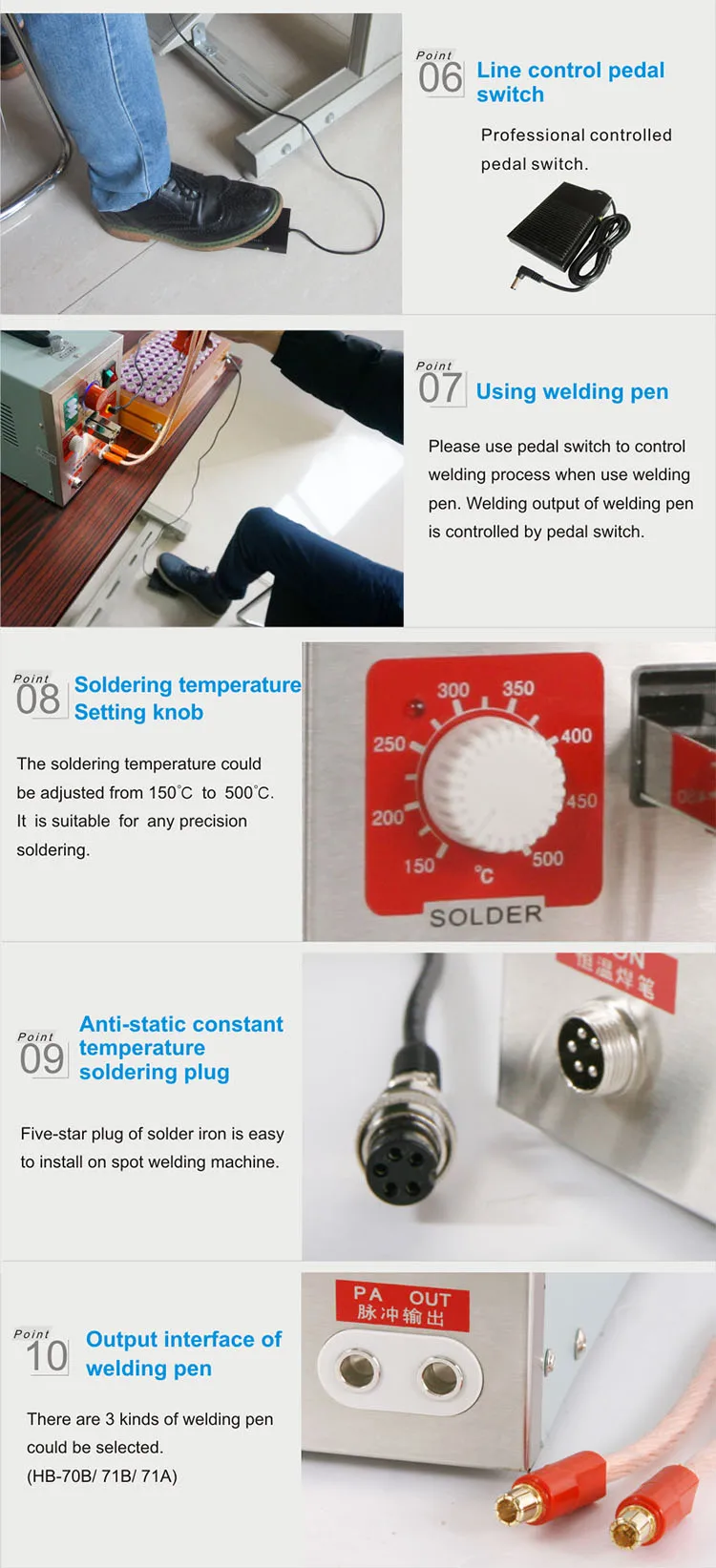

Wire-controlled pedal switch:1

ABSSix section fixture:1

Hexagonal screw wrench:1

20A/30A Safety Pipe:2

Spot Welding Needle for Push Welding Joint:4

Spot welding pen spot welding needle:2

Welding needle grinder:1

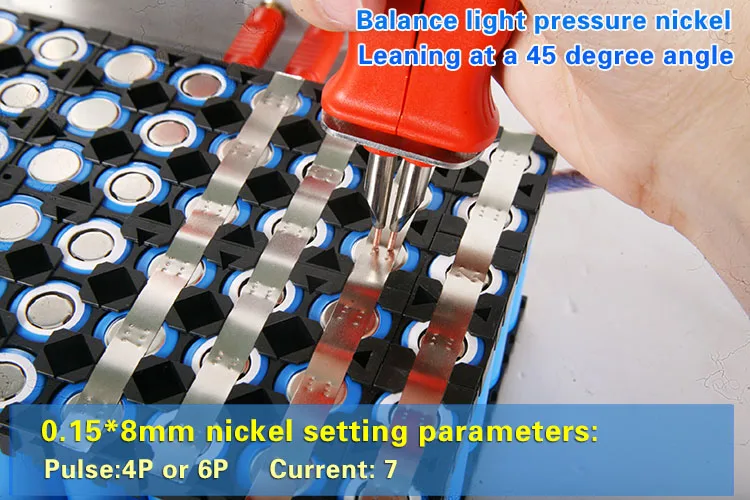

100 nickel plated sheets (0.1x4x100mm50 sheets, 0.15x8X100mm50 sheets)

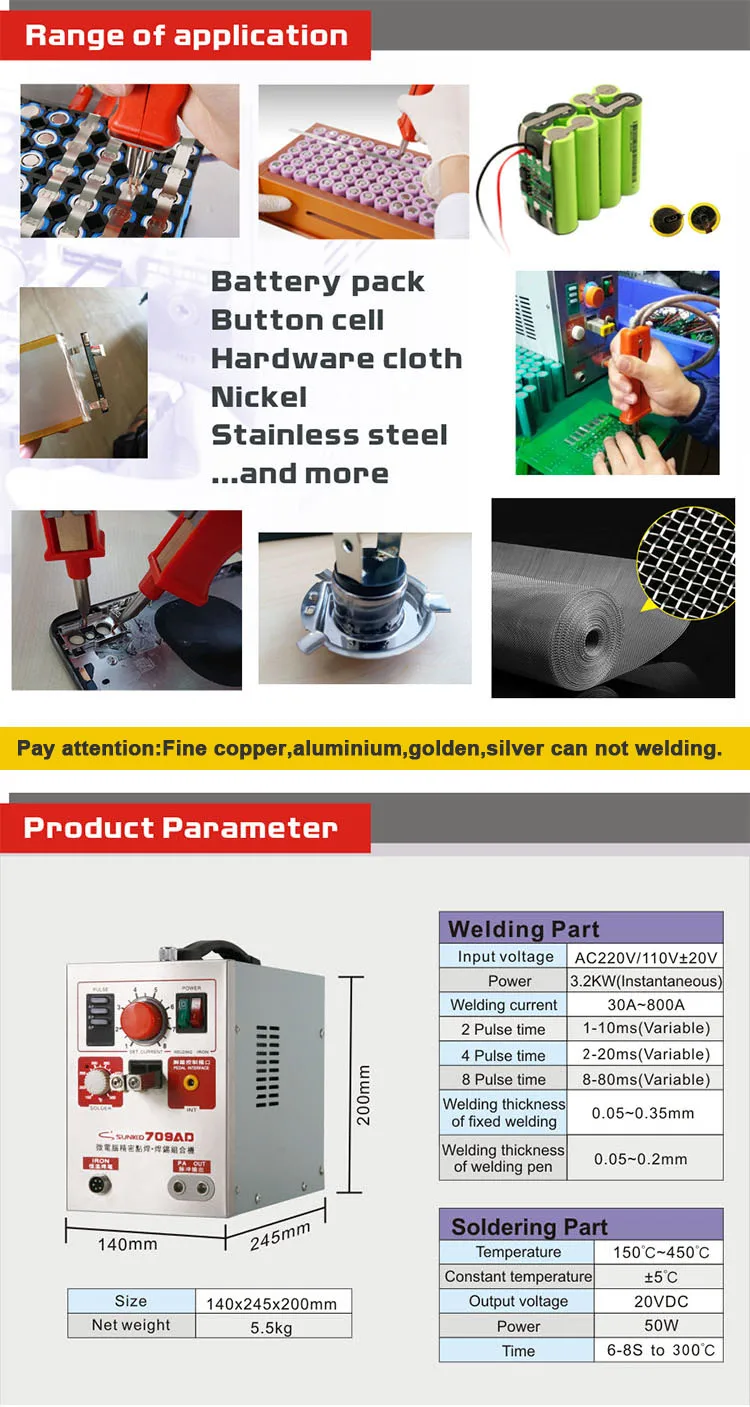

Parameters:

Spot-welder part
Supply Voltage   220V / 50 HZ, AC 110 V / 60 Hz(select)

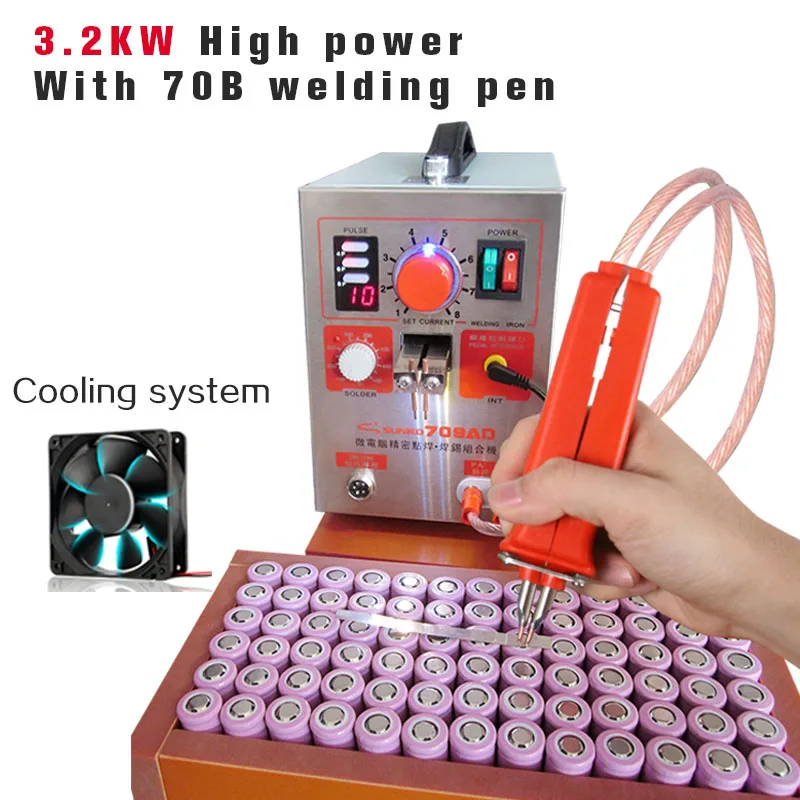

Power    3.2 KW (Instantaneous)
Current    800 A
Electric leakage Switch Requirement    60 A or more than 60 A

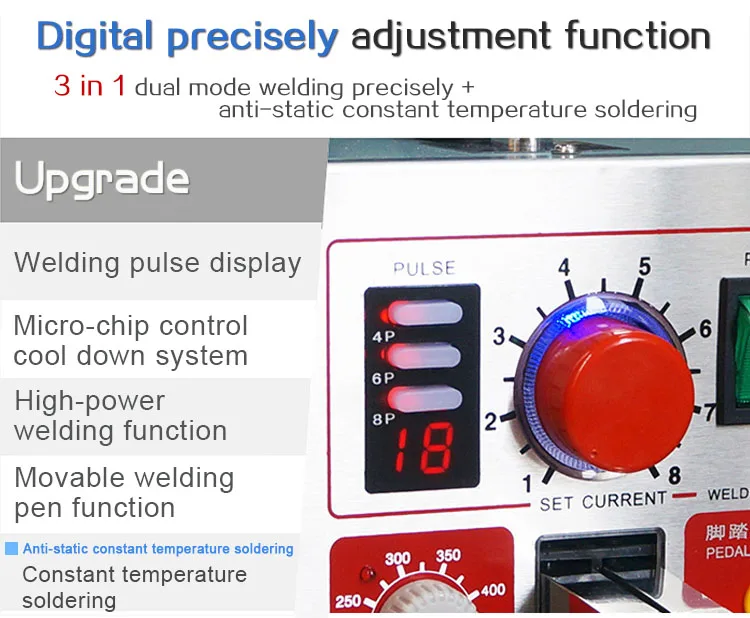

Time of Double Pulse    1 ~ 10 ms
(Instantaneous Welding Time)    (adjustable, by adjusting the welding current knob)
Time of Four Pulses    2 ~ 20 ms (adjustable)
(Instantaneous Welding Time)
Time of Eight Pulses    8 ~ 80 ms (adjustable)
(Instantaneous Welding Time)
Welding Pin Range    5 – 6 mm
Welding Pressure    300 – 500 g
Welding Distance    Adjustable

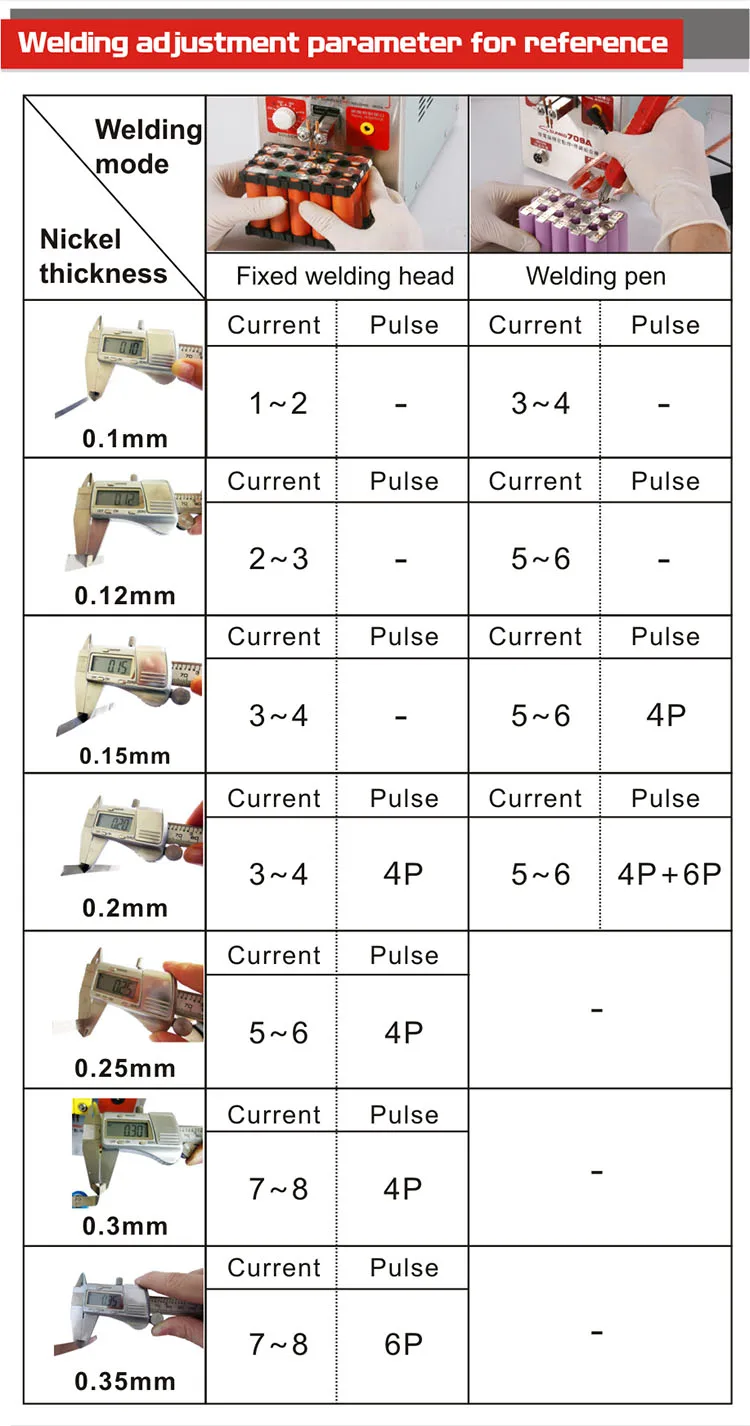

Suitable Welding Thickness    0.03 – 0.3 mm for Fixed Copper Head
0.03 – 0.2 mm for Mobile Welding Pen

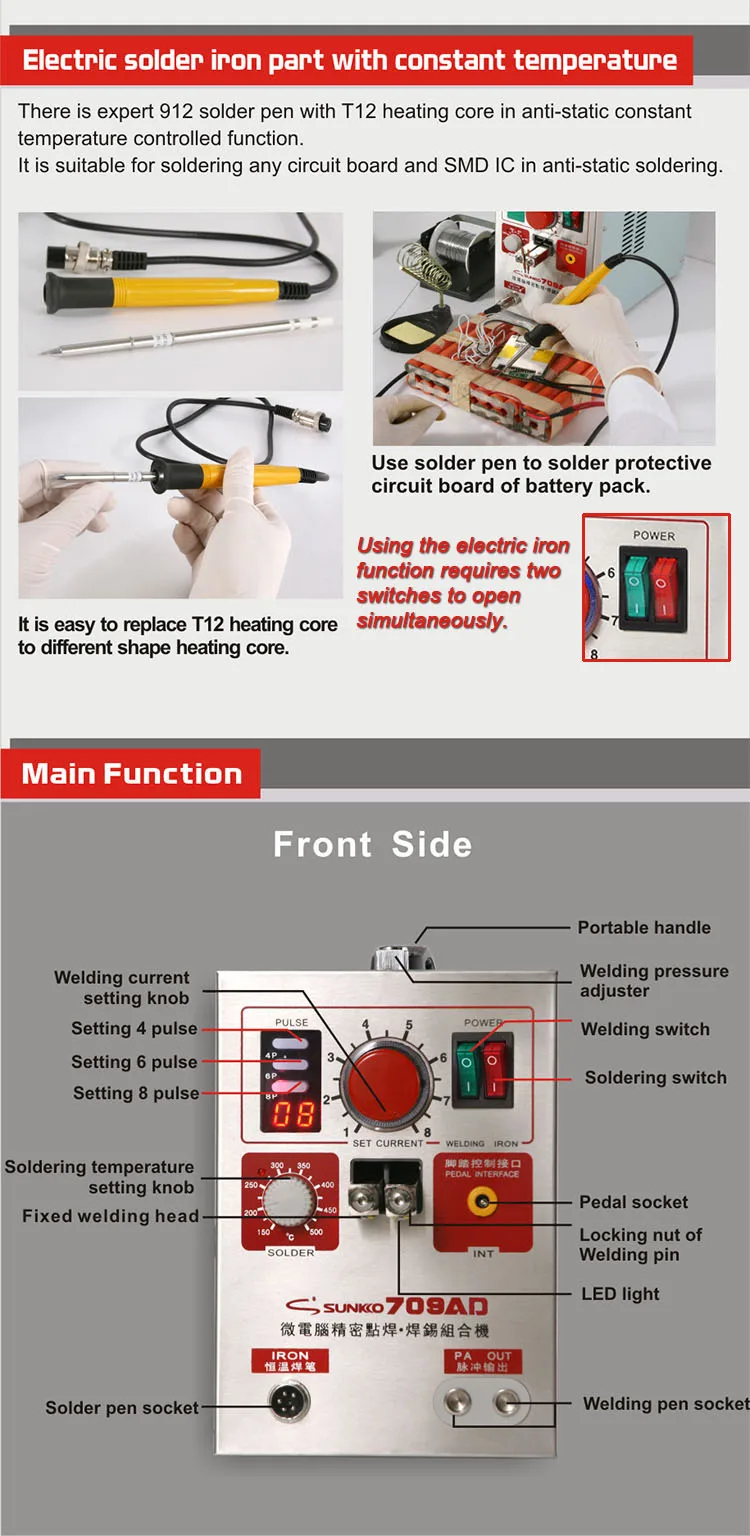

Soldering iron part
Temperature    150°C ~ 450°C
Power    50 W
Output Voltage    20 V DC

Note:

The welding thickness 0.03 – 0.3 mm indicates the thickness range of all alloy it can be weld, for nickel or nickel plated steel, the range is 0.08 – 0.3 mm.
