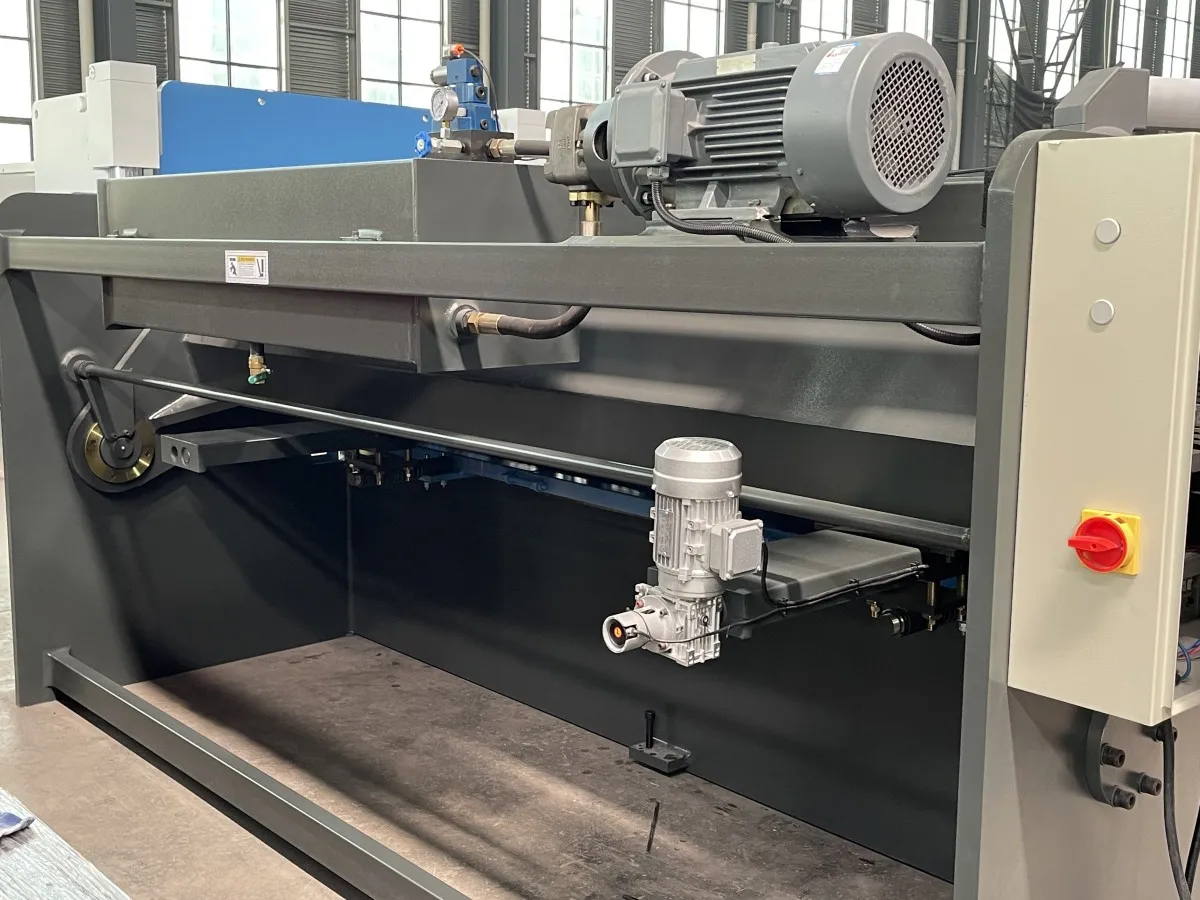

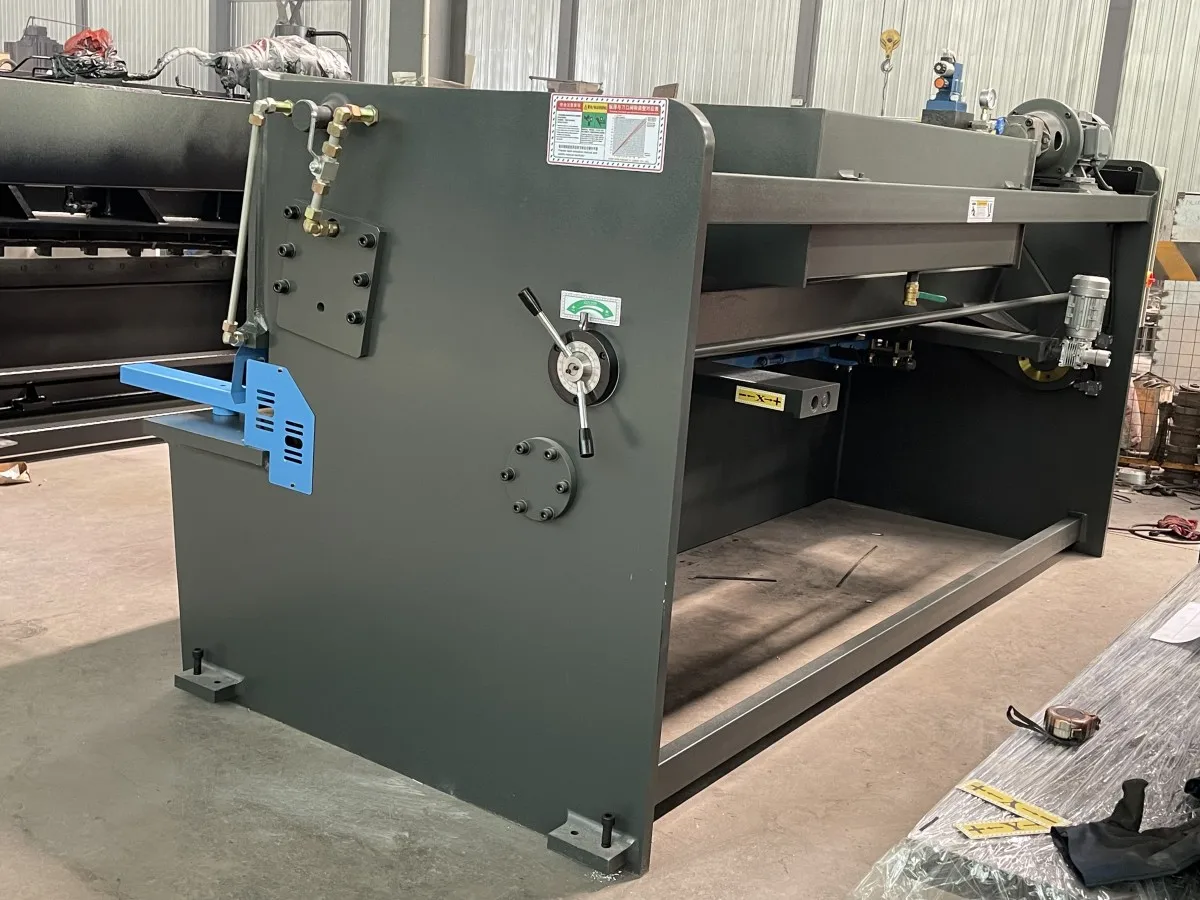

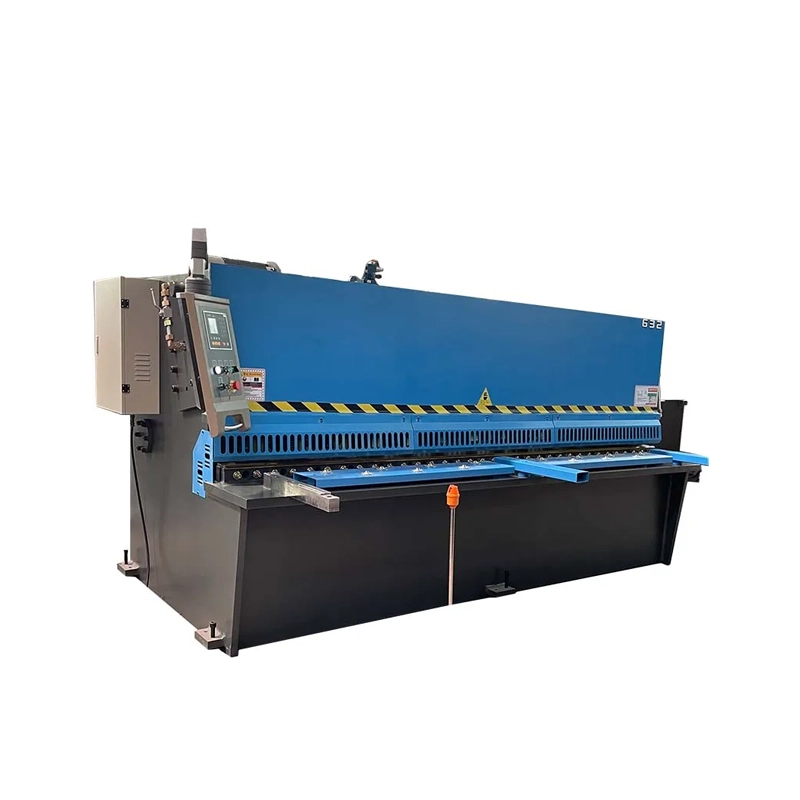

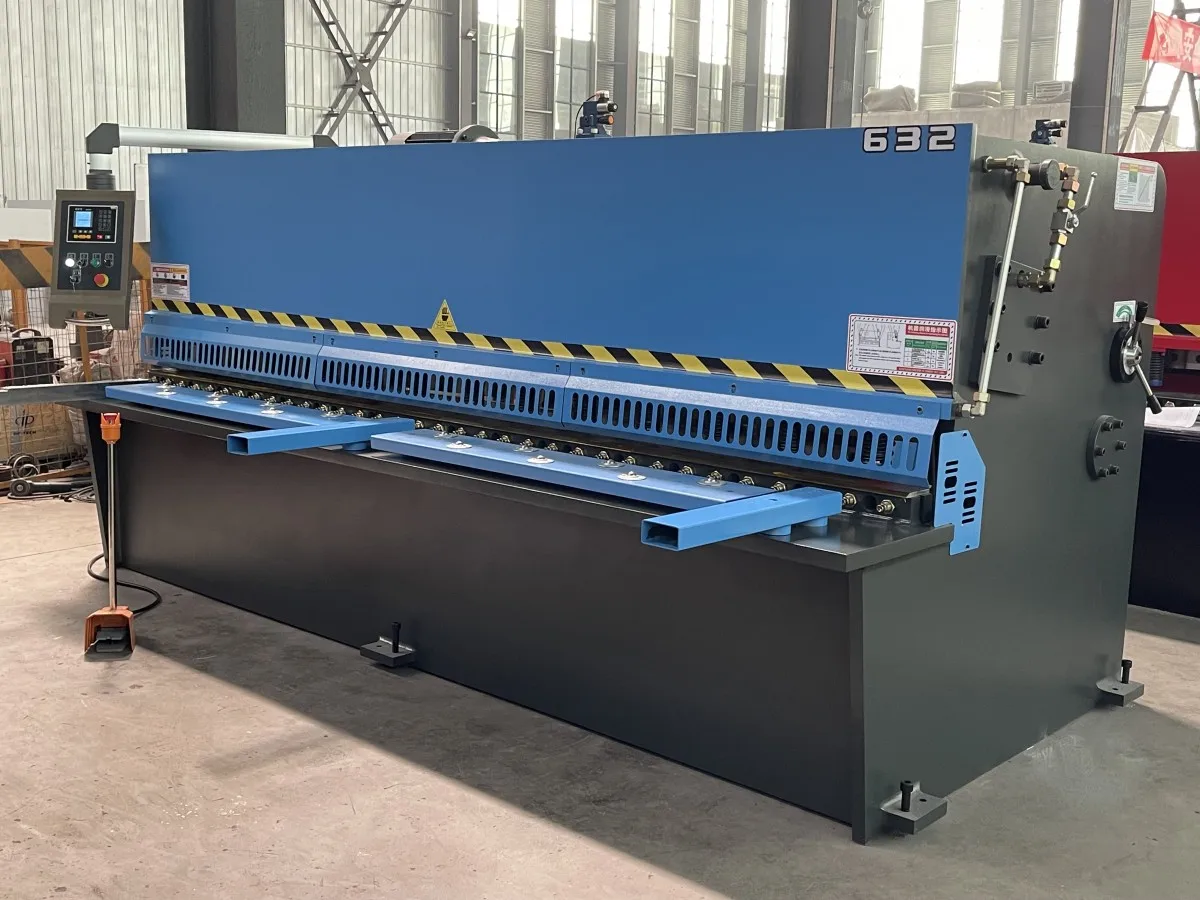

Name: ▷ Buy New 6*3200 hydraulic metal shear guillotine shearing machine () - Available at MachineryGenie.com
SKU: 1005006734409171
Price: 9600.00 USD
Availability: InStock

Description

My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! And welcome to add my WHATSAPP (+8618175124931) This product does not include free shipping. Please check the shipping cost with the customer service staff when purchasing. Thank you.

high precision heavy duty lathe bench metal lathe gap bed lathe C6246DX2000

Feature:

Precision ground and supersonic frequency,hardened bed ways is designed in double wall structure,

giving superb rigidity.The spindle system is high in rigidity and accuracy.

Specification :

Item/Model	C6246DX1000	C6246DX1500	C6246DX2000
Max.swing over bed	Φ460mm(18″)
Max.swing over cross slide	Φ270mm(8 3/4″)
Max. swing over gap	Φ690mm(27 1/8″)
Length of gap	165mm(6 1/2″)
Max.length of workpiece	1000mm(40″)	1500mm(60″)	2000mm(80′)
Width of bed	300mm(11 13/16″)
Spindle nose	D1-6
Spindle bore	82mm
Taper of spindle bore	M.T.#6
Range of spindle speed	12changes25-2000r/min
Max.travel of compound rest	128mm(5″)
Max.travel of cross slide	285mm(11 1/4″)
Leadscrew pitch	metric 6mm
Max.section of tool	25mm×25mm(1×1″)
Range of longitudinal feeds	42kinds 0.031-1.7mm/rev (0.0011″-0.0633″/rev)
Range of cross feeds	42kinds 0.014-0.784mm/rev (0.00033″-0.01837″/rev)
Metric threads range	41kinds 0.1-14mm
Inch threads range	60kinds 2-112 T.P.I.
Diametrical pitches range	50kinds 4-112D.P.
Module piches rang	34kinds 0.1-7 M.P.
Dia. of tailstock sleeve	60mm(2 5/16″)
Travel of tailstock sleeve	120mm(4 3/4″)
Morse taper of tailstock sleeve	M.T.#4
Power of main motor	5.5kw(7.5HP)3PH
Power of coolant pump	0.1kw(8/1HP)3PH
Ovelall Dimension(LxWxH)cm	220x108x137	275x108x137	325x108x137
Net weight/Gross weight(kg)	1645/1910	1810/2115	1965/2295
