550w Mill/Drill Milling and Drilling Integrated Machine Brushless Motor desktop bench drill high precision metal processing – Red
A$2,381.82
- USD: $1,610.41
- GBP: £1,278.32
- EUR: €1,488.63
- JPY: ¥241,113
- CNY: ¥11,191.09
Description
Drilling and Milling Machine Specifications:
Model: Type 9512
Voltage: 220V/50Hz
Power: 550W

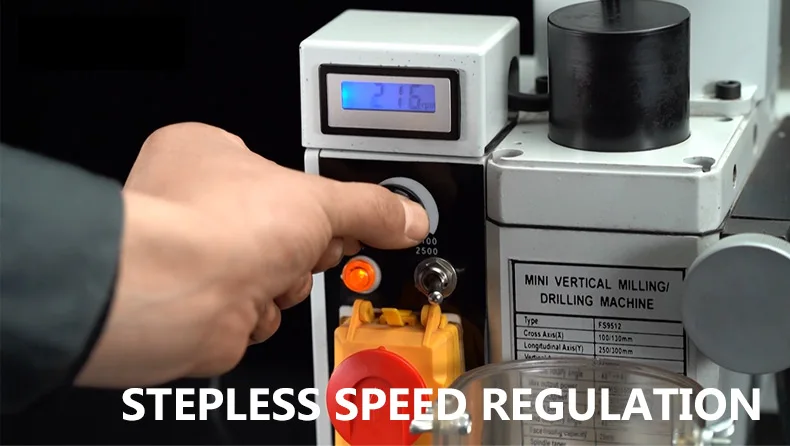

Speed: 20-2250rpm
X axis travel: 250mm
Y axis travel: 100mm
Z axis travel: 200mm

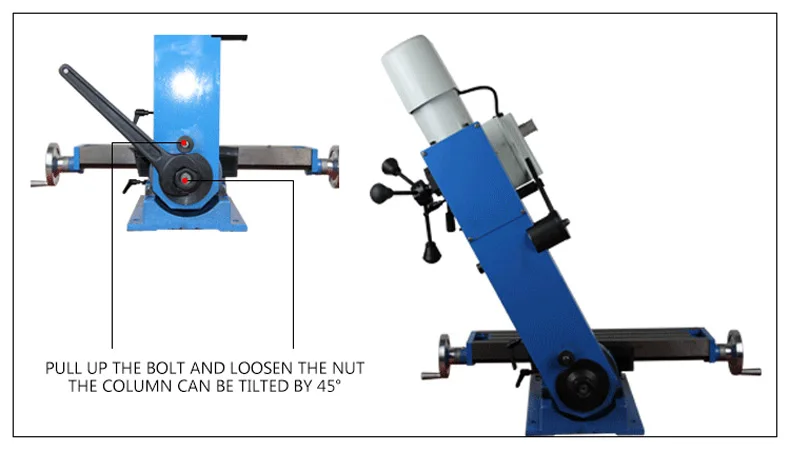

Tilt range: 45°
Drilling capacity: 13mm
Grip shank diameter: 13mm
Spindle hole Morse taper: MT3
Maximum milling diameter: 13mm
Maximum face milling diameter: 30mm

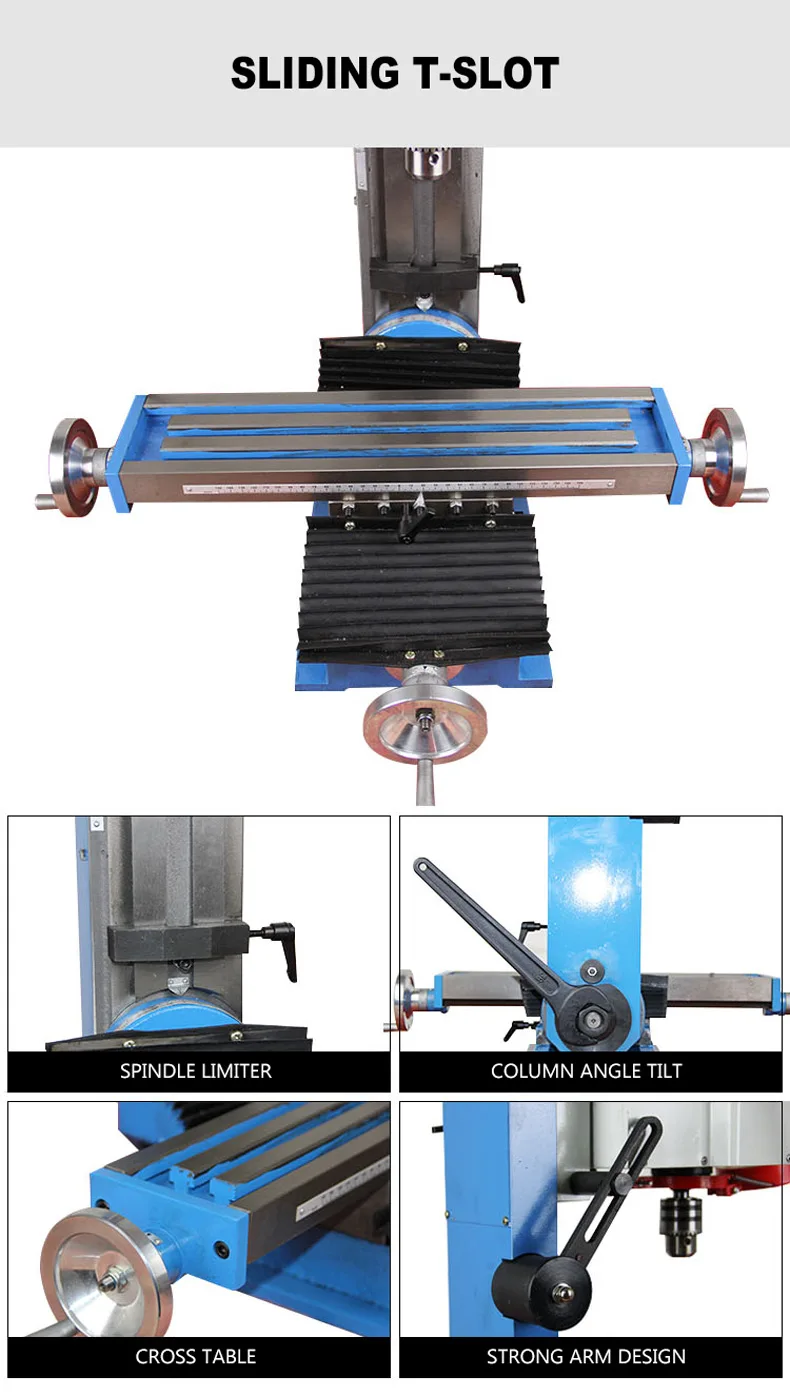

Lengthened worktable: 500*140mm
Distance between chuck and table top: 180mm
Table T-slot width: 10mm Gross
weight: 75KG
Packing size: 64*56*76cm
Specification
Additional information
| Weight | 100 kg |
|---|
