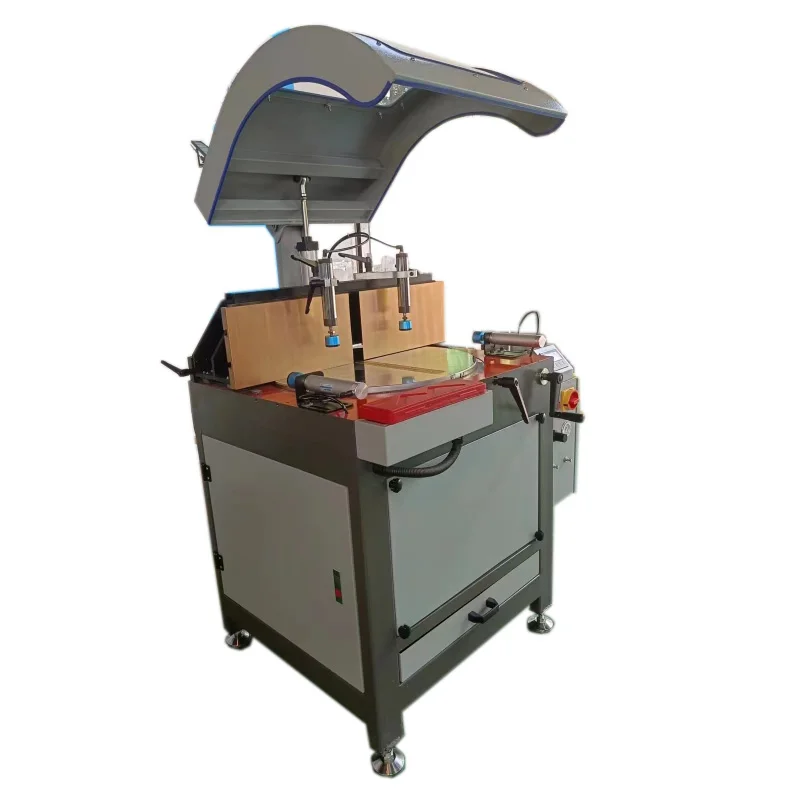

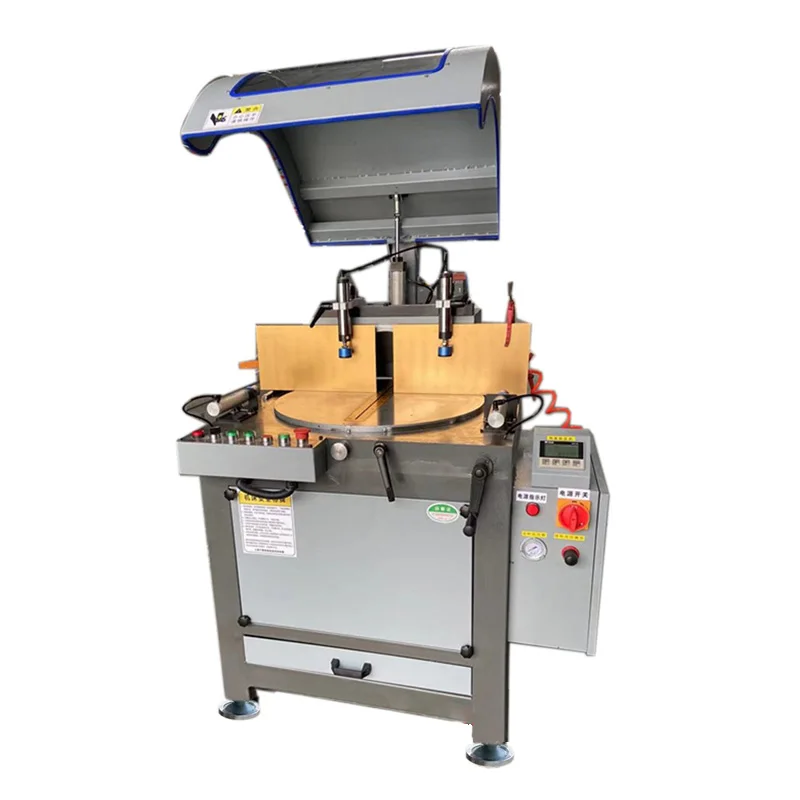

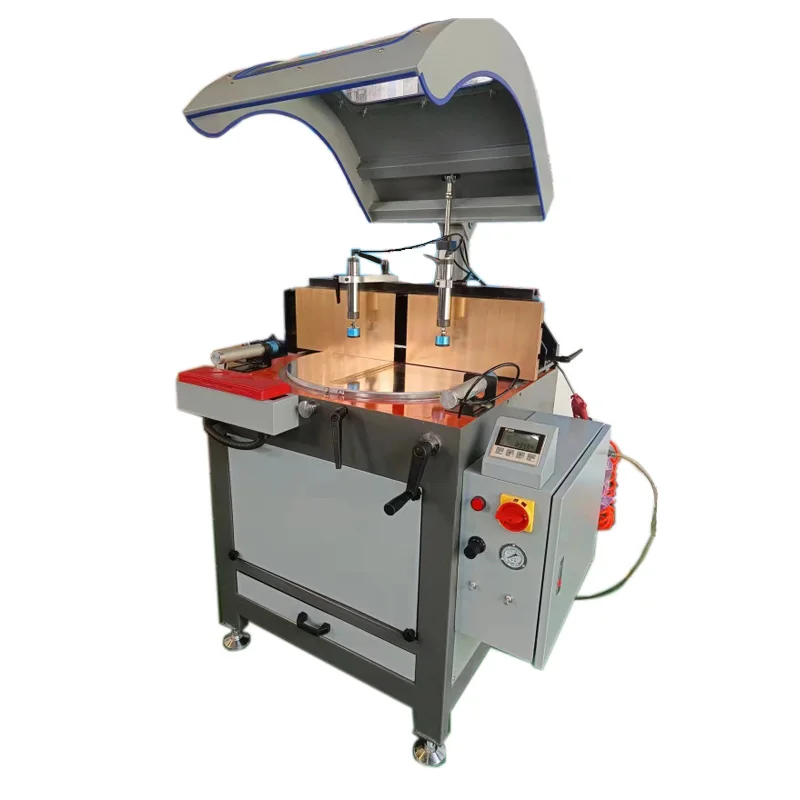

Name: ▷ Buy New 380V Precision CNC Multi-Angle Cutting Machine Digital Display 2.2KW Heavy-duty Cutting Saw Door and Window Processing Machine (XMSJ) - Available at MachineryGenie.com
Brand: XMSJ
SKU: 1005006269458524
Price: 18522.77 USD
Availability: InStock

Description

Condition: New
Model Number: SXQGJ
Type: Horizontal
Brand Name: XMSJ
Origin: Mainland China
Certification: CE

Buyers need to know when placing an order: Due to the heavy weight of the product package, it can only be transported by sea. If you need to purchase, please contact us for a cheaper shipping quotation. If you do not consult for payment, we will default to shipping by sea. Please be informed.

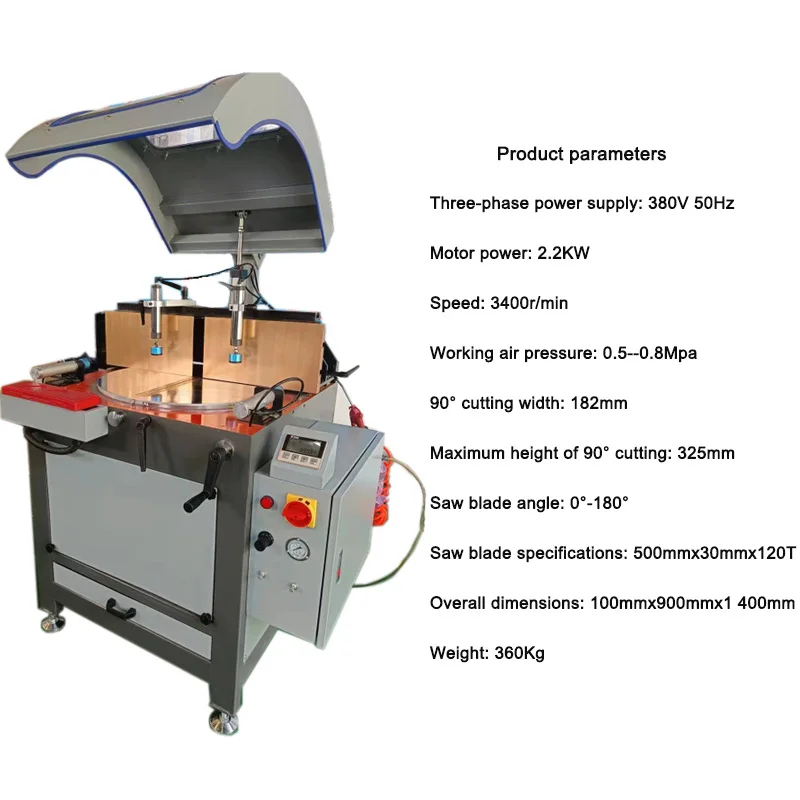

RY500 machine parameters

Power three-phase: 380V
Motor power: 2.2KW
Speed: 3400r/min
Working pressure: 0.5-0.8Mpa
90 ° cutting maximum width size: 182mm
90 ° cutting maximum height size: 328mm
Saw blade angle: 0 ° -180 °
Saw blade specification: 500mm * 30mm * 120T
Machine dimensions: 1000mm * 900mm * 1400mm
Machine weight: approximately 400kg

Product Usage Description

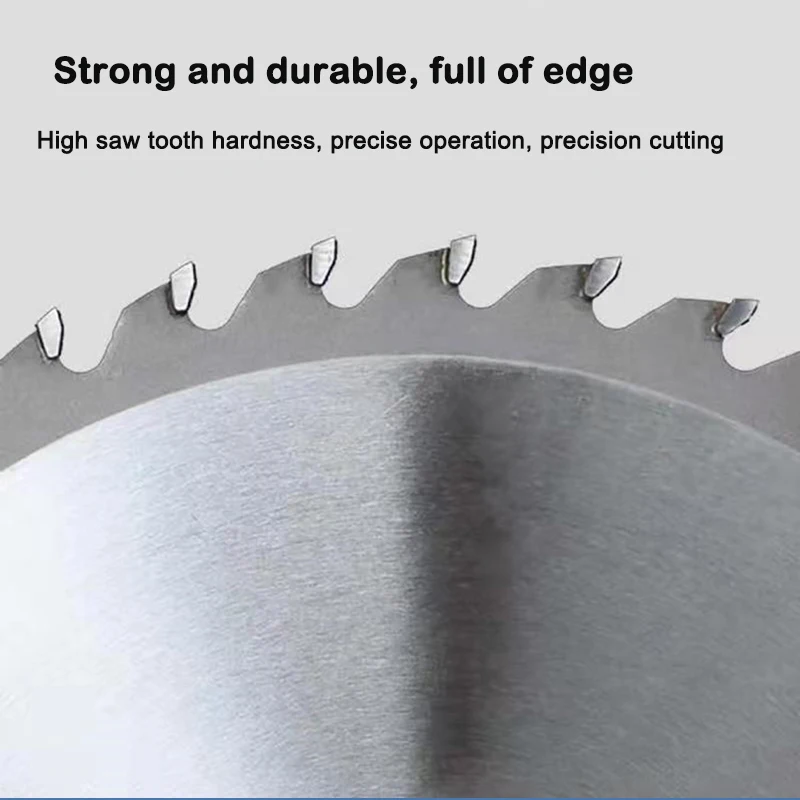

This machine is easy to operate, reliable in performance, advanced in technology, and easy to maintain. The cutting tool uses a hard alloy saw blade with high cutting speed and machining accuracy, designed specifically for cutting large-sized aluminum profiles. Can cut sunlight room profiles, large door and window profiles, industrial aluminum profiles, etc. It can cut at 90 °, 45 °, and any angle. The saw is simple to operate, safe and convenient, and can be operated by one person. It has high work efficiency and cutting accuracy, and is a capable assistant for manufacturers of doors and windows, as well as sunlight rooms.

Attachments (PDF)

Specification

Additional information

Weight	100 kg
