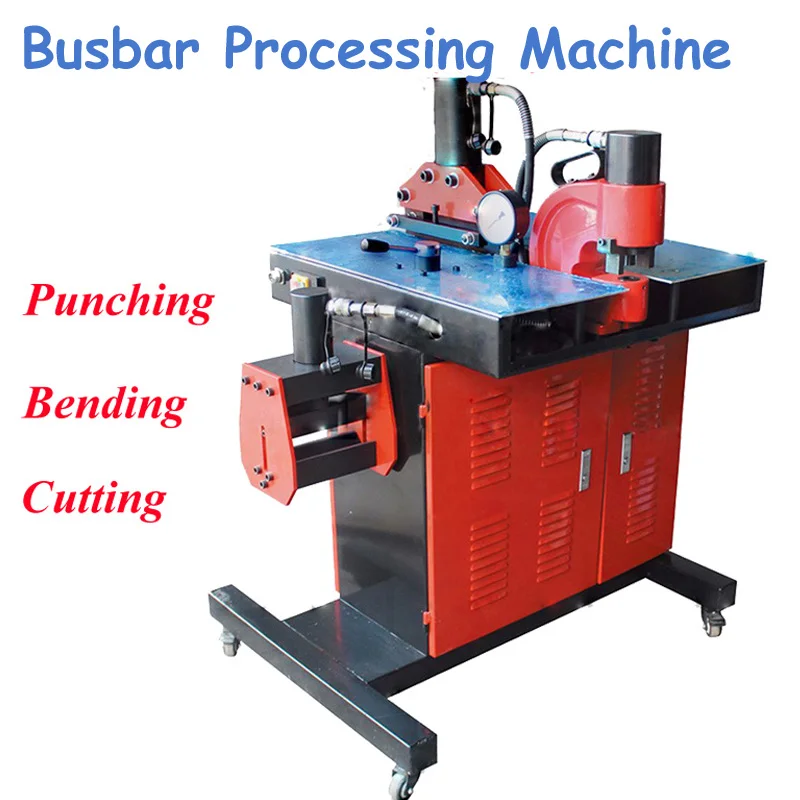

3 In 1 Copper Busbar Processing Machine Combined Busbar Hydraulic Electric Punching Machine, Cutting Machine, Bending Machine
A$2,892.75
- USD: $1,955.86
- GBP: £1,552.54
- EUR: €1,807.96
- JPY: ¥292,834
- CNY: ¥13,591.71
Description
Busbar Processing Machine for Punching Bending and Cutting Function DHY-200
Product Name: three in one multifunctional bus processing machine (electronic valve, foot switch control!)
Product model: DHY-200
Technical parameter:
Functions: cutting, punching, bending
Flow table size: 850mm (L) *650mm (W) * 1200mm (H)
Input voltage: single phase 220V, 50Hz
Rated working pressure: 700Kgf/cm2 (overpressure relief valve setting value)
Cutting capacity: copper / aluminum row
200mm * 10mm
200mm * 10mm
Punching machine output: 30ton
From the hole to the edge of the line: 80mm
Punching capacity aperture
10.5mm,
13.8mm,
17.5mm,
20.5mm
10.5mm,
13.8mm,
17.5mm,
20.5mm
Row thickness: 10mm
Punching capacity – aluminum row aperture 8mm to 21mm
Row thickness: 10mm
Bending capacity: copper / aluminum row 200mm * 10mm
Weight: 175Kg
Specification
Additional information
| Weight | 100 kg |
|---|
