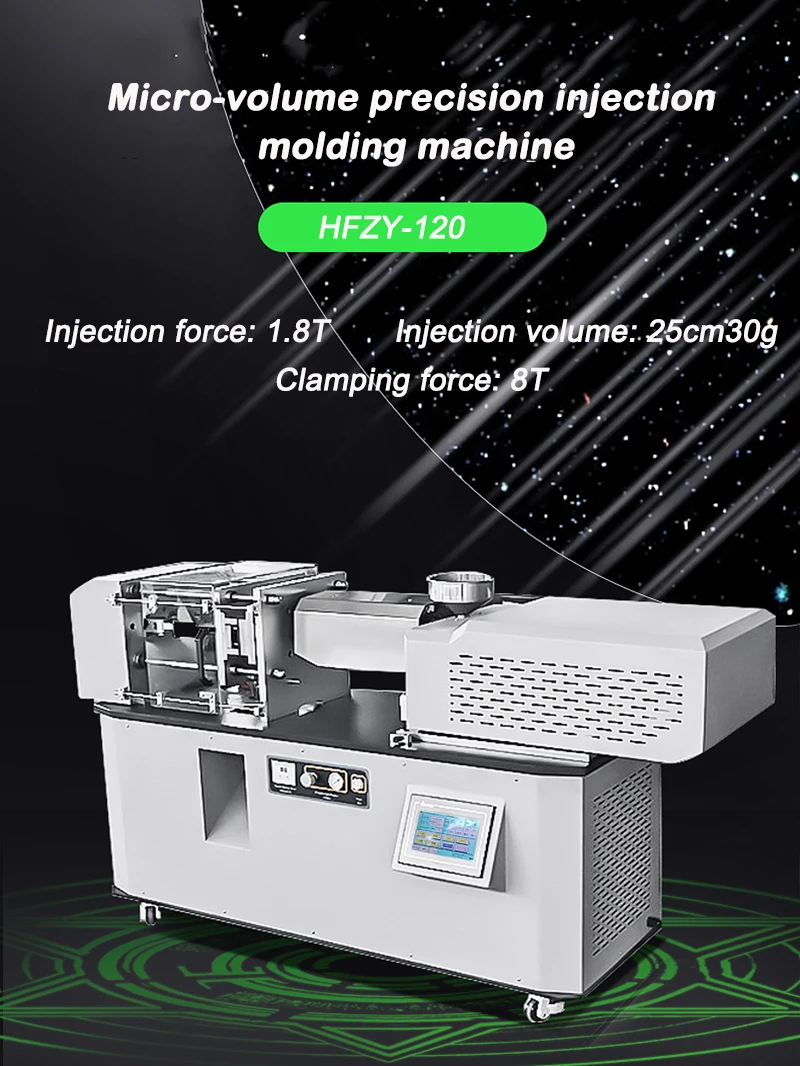

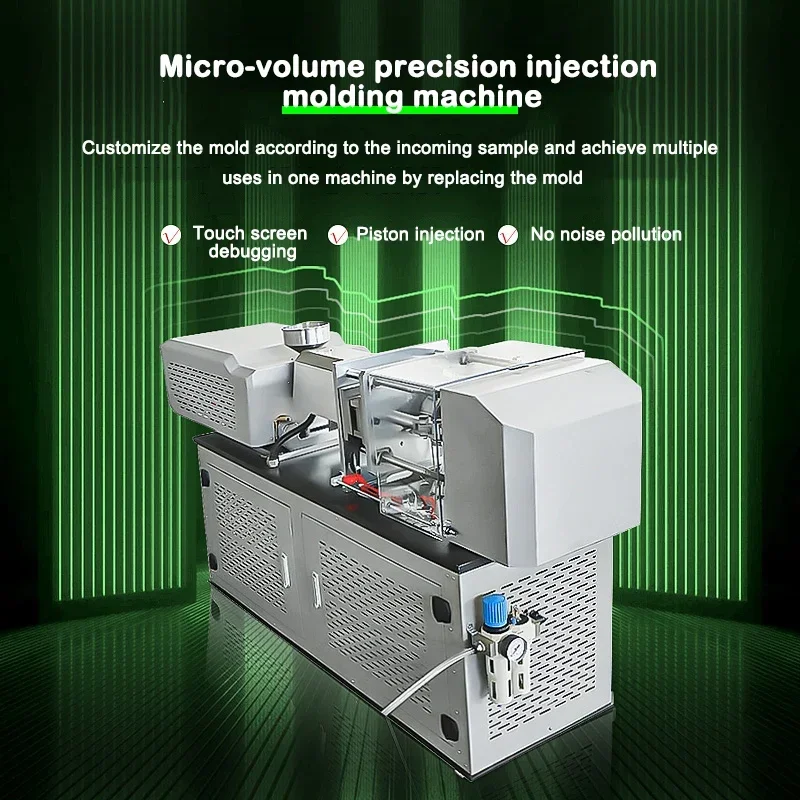

220V 6T 30g Micro Precision Injection Molding Machine Automatic Horizontal Injection Molding Machine Plastic Molding Machine
£53,832.71
- USD: $67,817.28
- AUD: A$100,303.05
- EUR: €62,689.01
- JPY: ¥10,153,733
- CNY: ¥471,278.44
Description
- Condition: New
- Model Number: WLWSZSJ
- Type: Horizontal
- Brand Name: XMSJ
- Origin: Mainland China
- Certification: CE
If you choose the seller’s shipping method, the prices in most countries include double customs clearance and door-to-door delivery (excluding Asian and South American countries)
For more information, please contact us for consultation

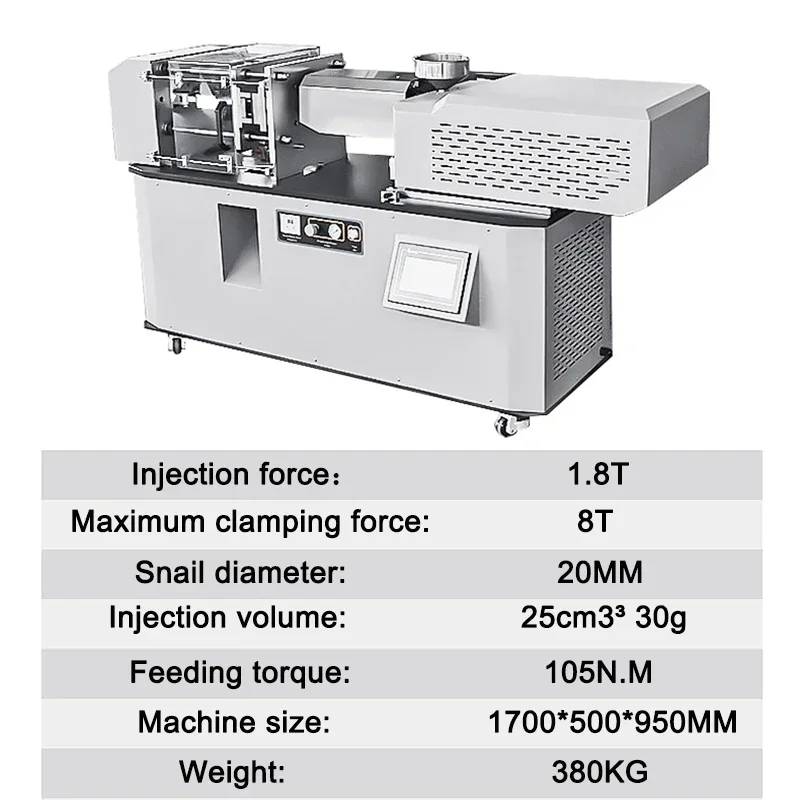

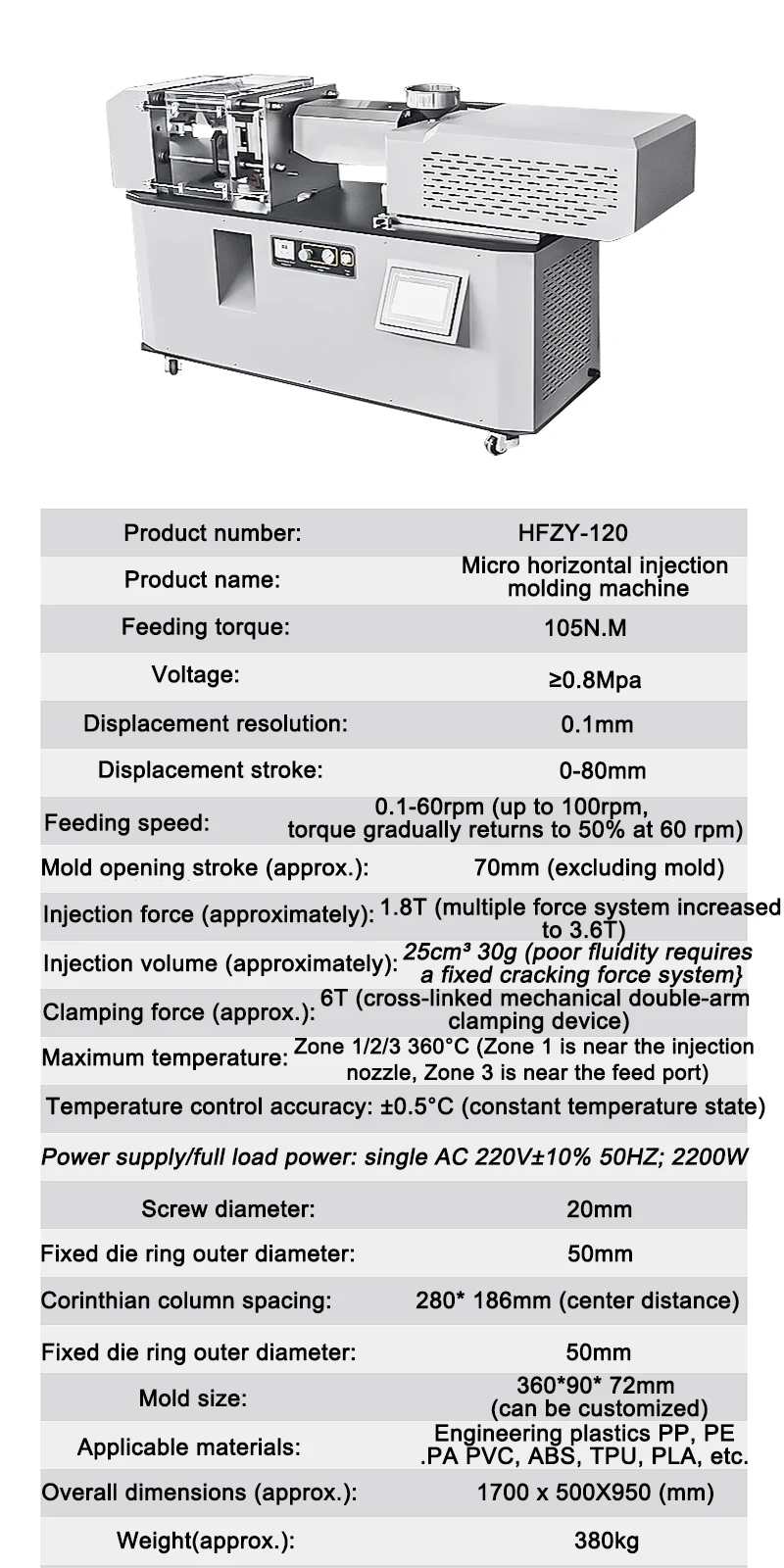

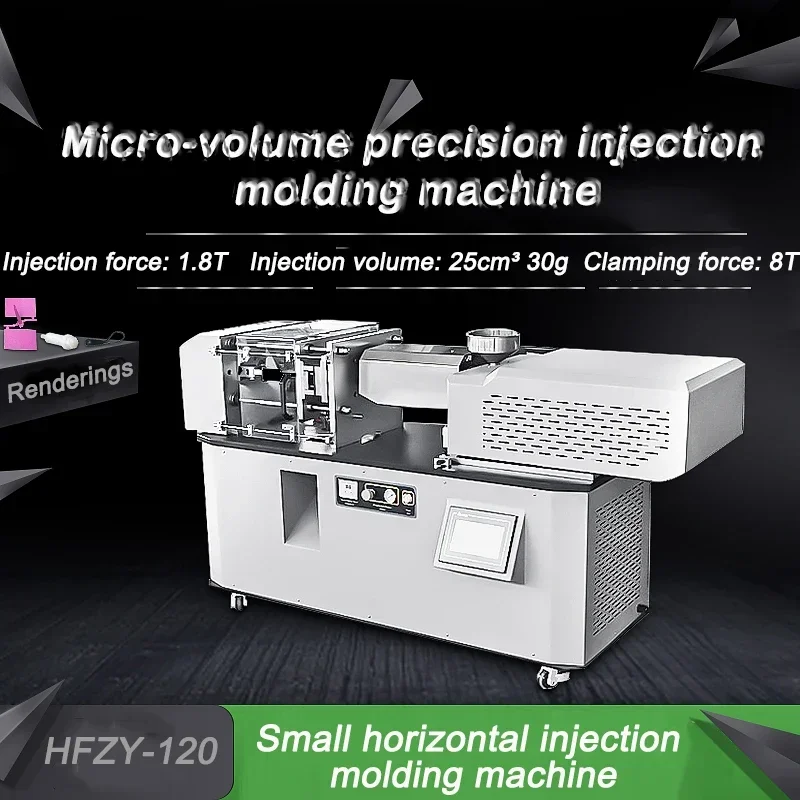

Product model: HFZY-120
Product Name: Micro Horizontal Injection Molding Machine
Feeding torque: 105N. M
Displacement resolution: 0.1mm
Displacement stroke: 0-80mm
Feeding speed: 0.1-60rpm (maximum 100rpm, torque gradually decreases after reaching 60rpm, until 50%)
Mold opening stroke: approximately 70mm (excluding molds)

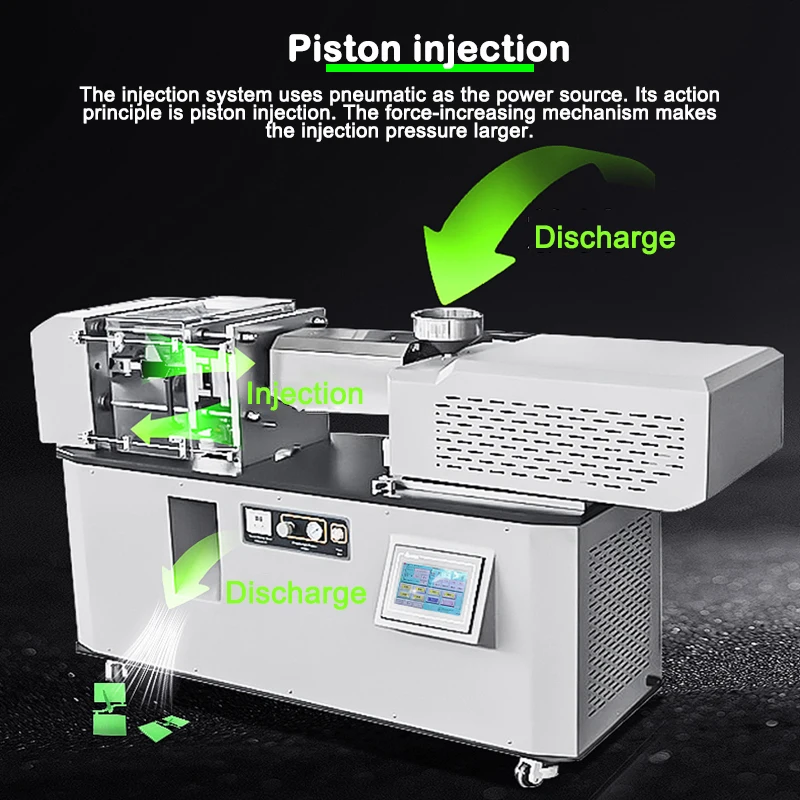

Injection force: about 1.8T (increased to 3.6T by the double force system)
Maximum ejection volume: approximately 25cm ³ 30g (for those with poor liquidity, a customized power system is required)
Maximum locking force: about 6T (cross-linked mechanical only curved arm locking device)
Maximum temperature: 360 ℃
Temperature accuracy: ± 0.5 ℃ (constant temperature state)
Power supply voltage: 220V
Full load power: 2200W
Screw diameter: 20mm
Outer diameter of fixed mold ring: 50mm
Golin column spacing: 280 * 186mm (center to center distance)
Maximum mold size: 360 * 90 * 72mm

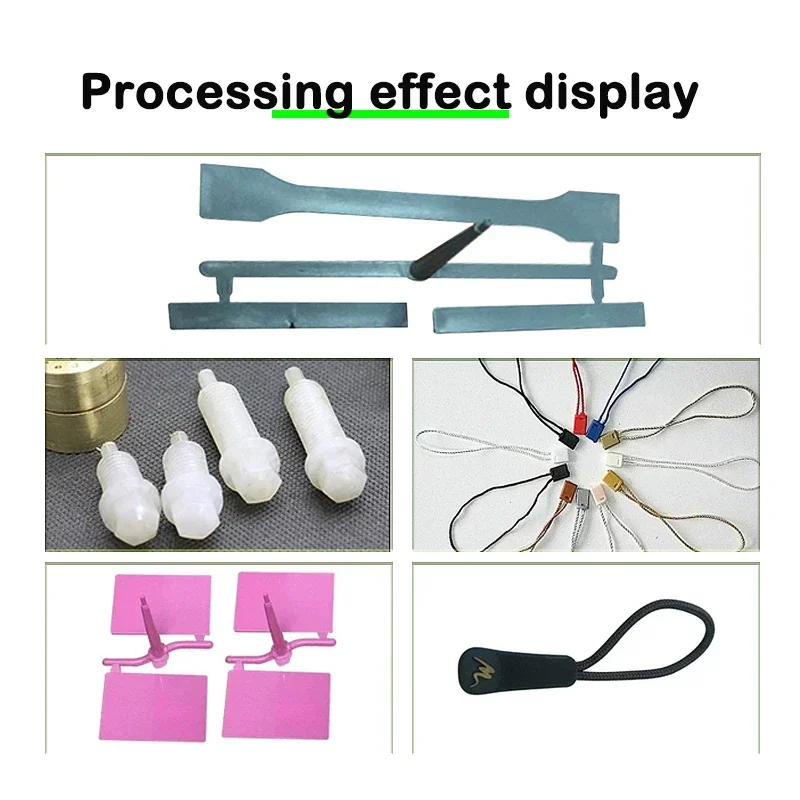

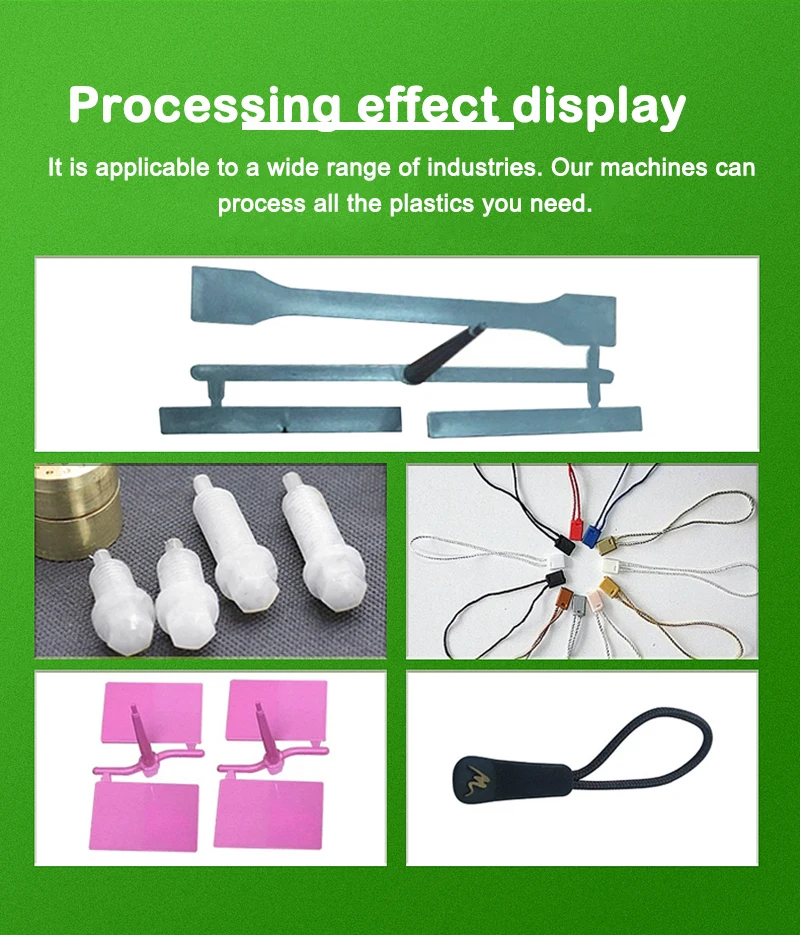

Applicable materials: PP, PE, PA, PVC, ABS, TPU, PLA, etc
Machine weight: approximately 380kg
Machine size: approximately 170 * 50 * 95cm
Packaging size: approximately 183 * 68 * 123cm
