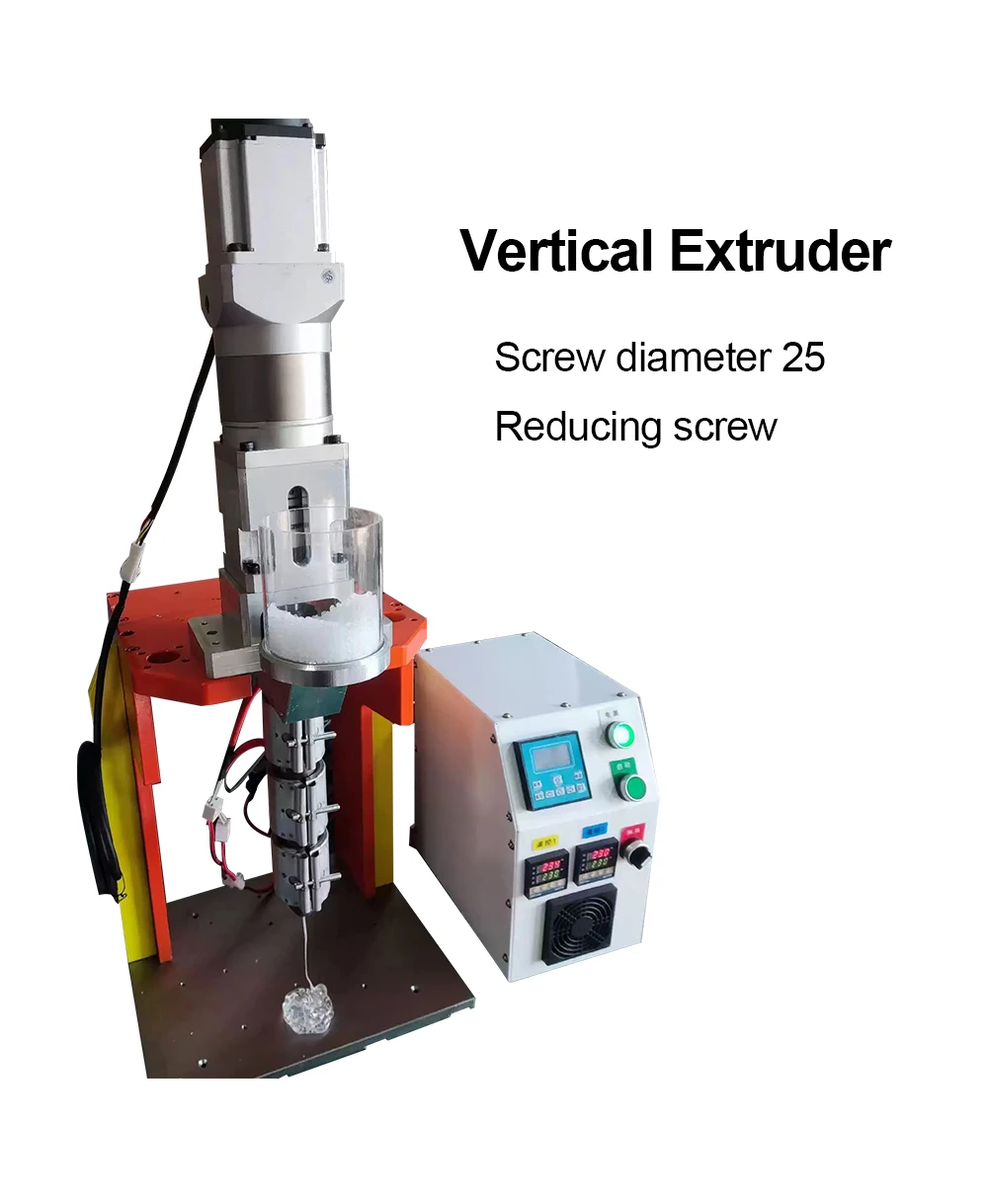

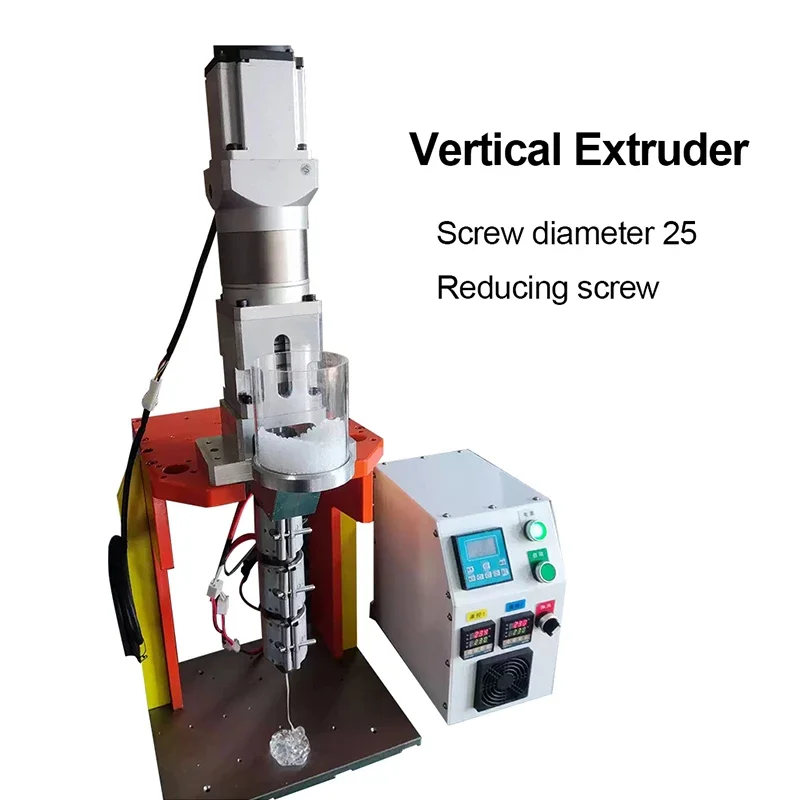

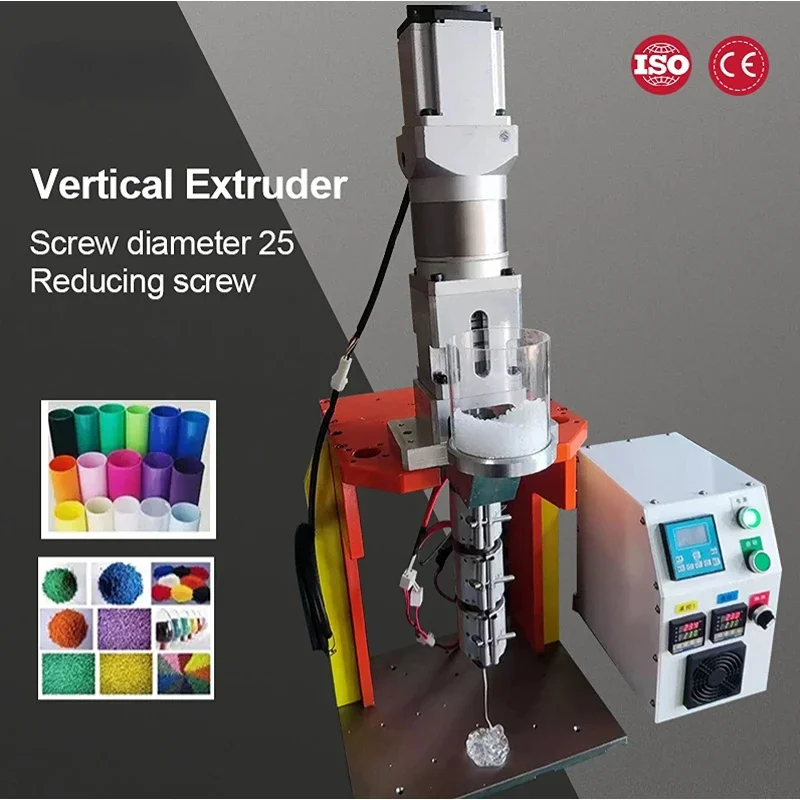

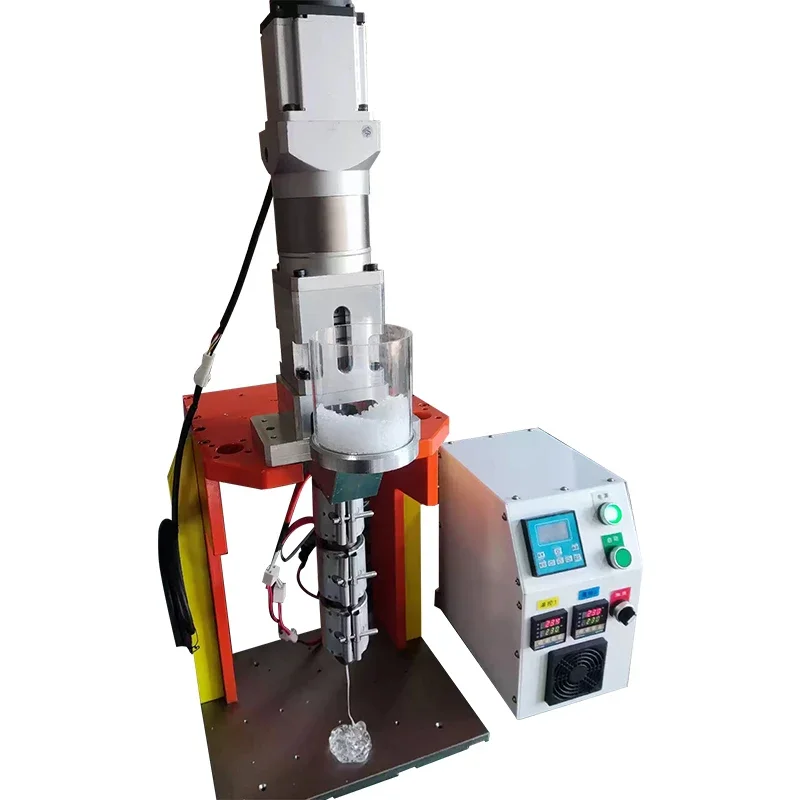

220V/110V 3D Vertical Extruder Automatic Desktop 0.1-4kg/h 1200W PP PE PS AS ABS Laboratory Extruder Support Customiz – 220V

$4,363.96

  • AUD: A$6,777.10
  • GBP: £3,637.27
  • EUR: €4,235.66
  • JPY: ¥686,049
  • CNY: ¥31,842.51

100 in stock

  Chat Now
SKU: 1005005258863352-220v Categories: ,

$4,363.96

  • AUD: A$6,777.10
  • GBP: £3,637.27
  • EUR: €4,235.66
  • JPY: ¥686,049
  • CNY: ¥31,842.51

Description

  • Condition: New
  • Model Number: DDJCJ
  • Type: Vertical
  • Brand Name: XMSJ
  • Origin: Mainland China
  • Certification: CE

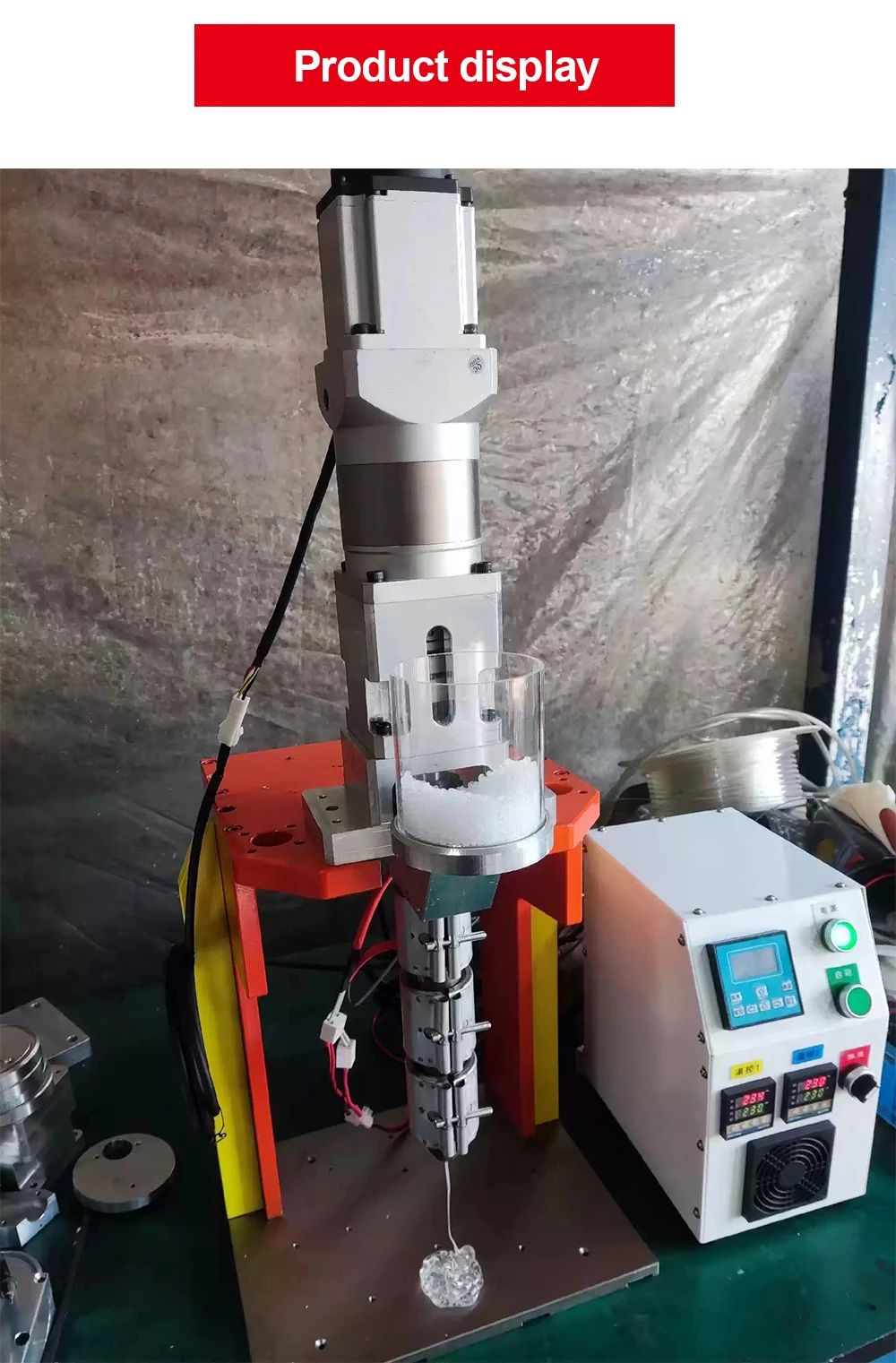

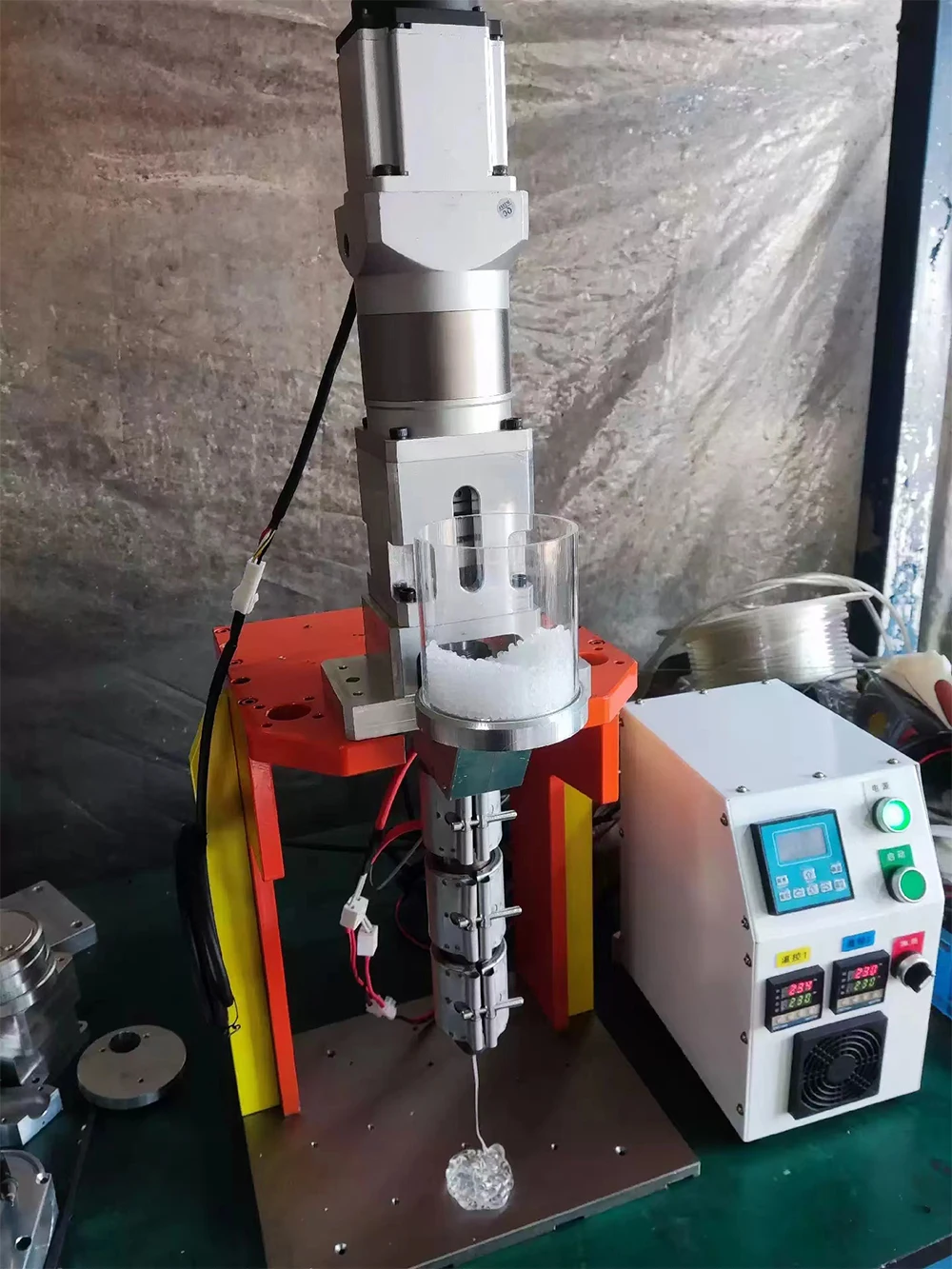

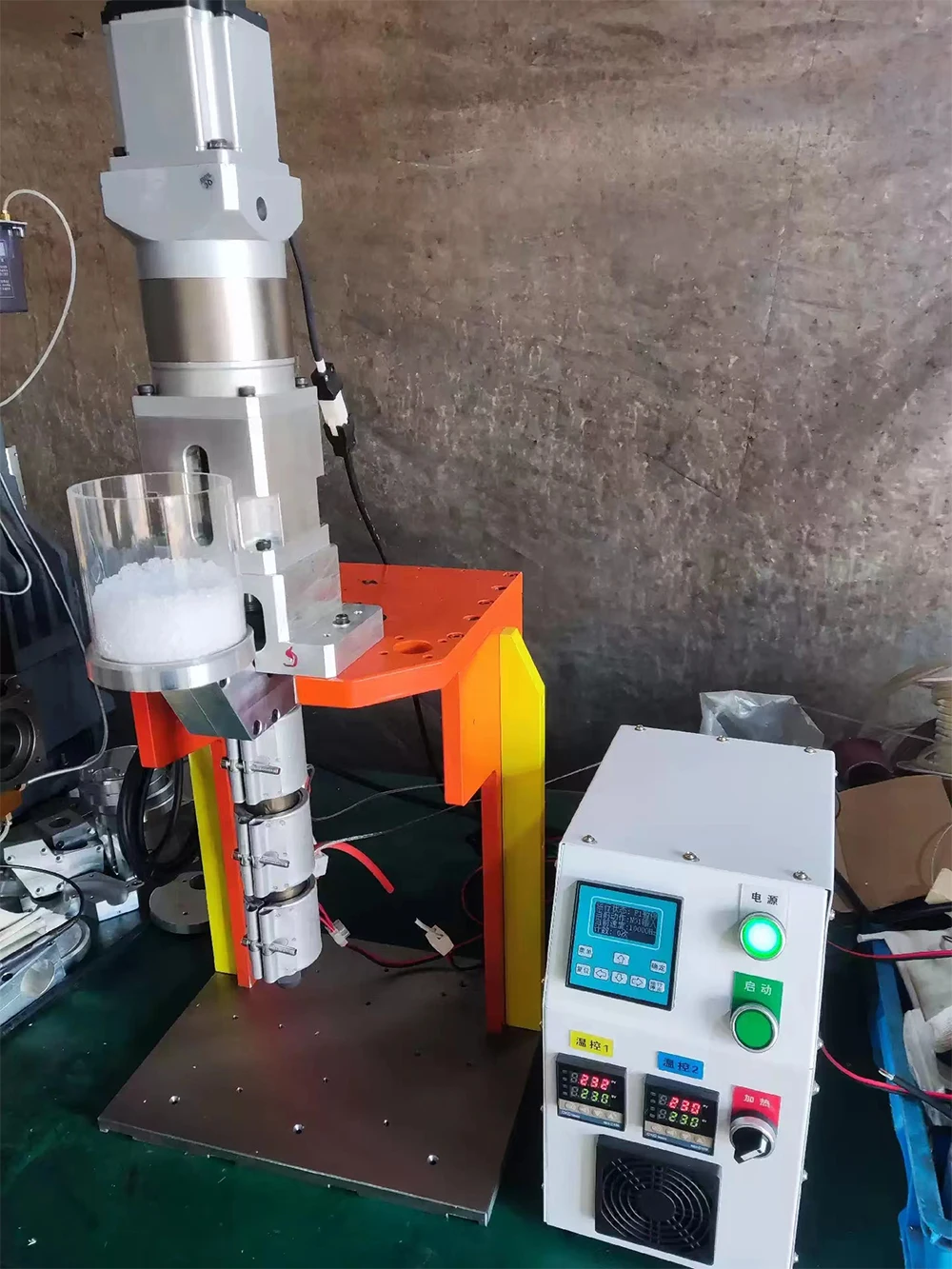

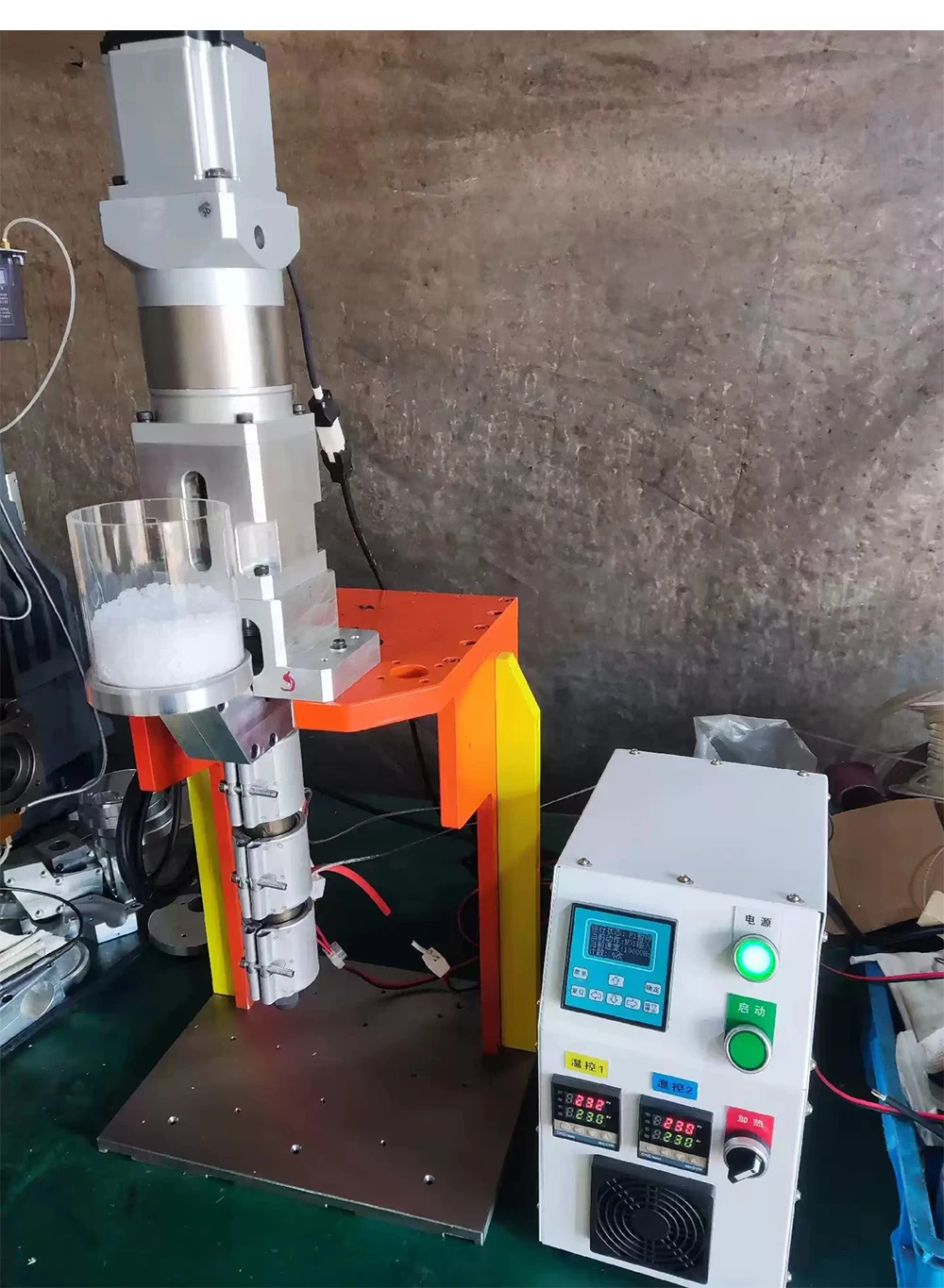

Reminder: The delivered package does not contain the orange steel plate bracket in the picture. The orange steel plate bracket in the picture is only used to fix the machine for easy taking pictures. The actual shipment does not contain the orange steel plate bracket. Please note that

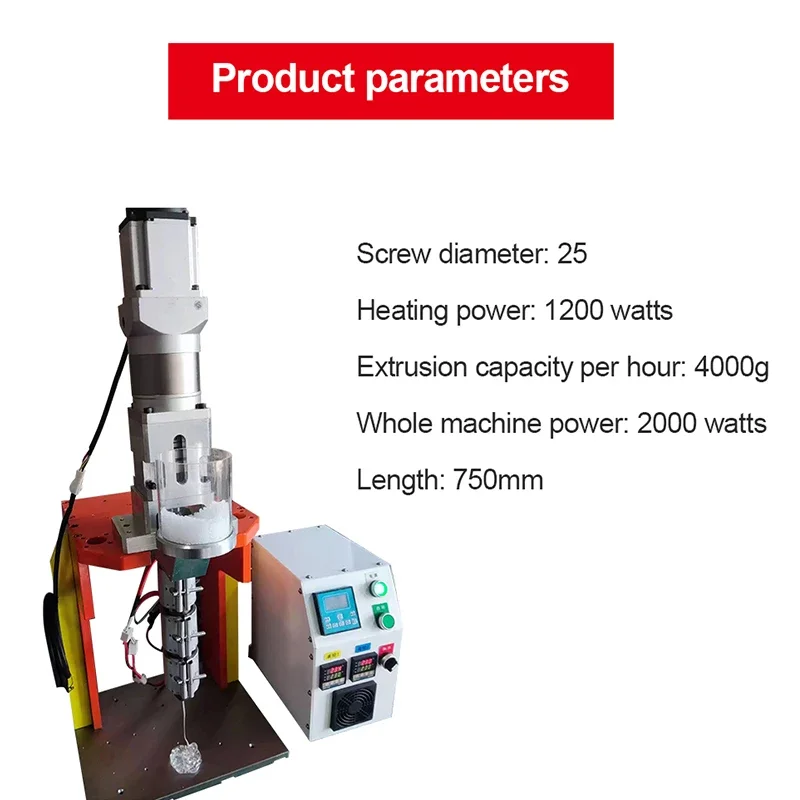

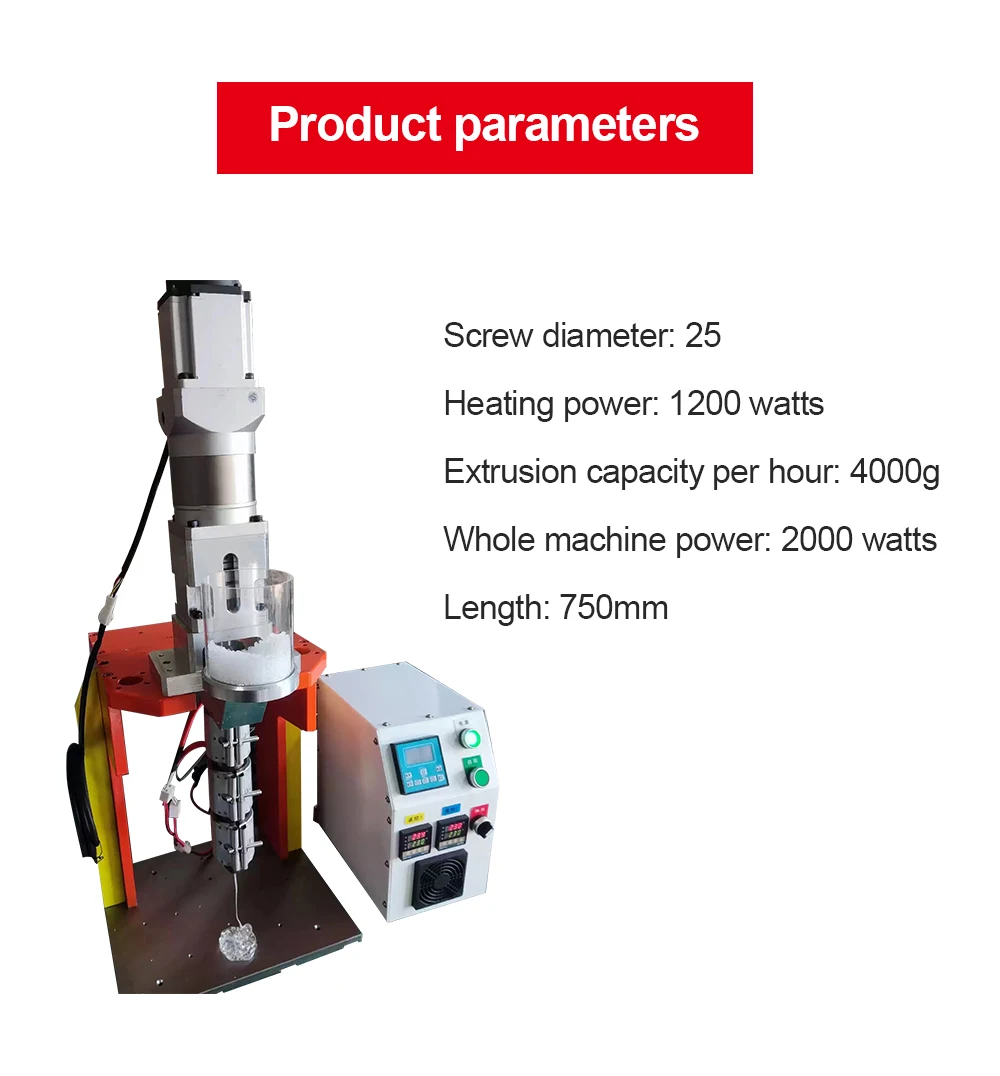

Product Parameters

1. Screw diameter 25mm, output: 4.5-5.5kg/hour;

2, Length, width and height, 0.4*0.4*0.9 Weight: 30KG

3. Production line speed: 1-40 m/min (the actual production speed depends on the customer’s line regulations);

4. Center height of extruder: 300mm;

5. Production direction: top feed → bottom feed, vertical feeding. the

6. Motor power: 0.25kw is equipped with a high temperature resistant gearbox, and the total installed power is 1200W.

7. Power supply voltage: conventionally 220V single-phase household voltage, or according to customer voltage;

8. Screw aspect ratio: 12:1

9. The maximum heating temperature is 300 degrees, heating element: stainless steel heating (the company also provides high-temperature models, the maximum temperature can reach 500 degrees, and it needs to be customized)

10. The feeding port is equipped with a cooling device (to prevent the temperature of the feeding port from being too high, causing the material to melt prematurely and causing blockage)

11, barrel screw 38CR nitriding treatment
