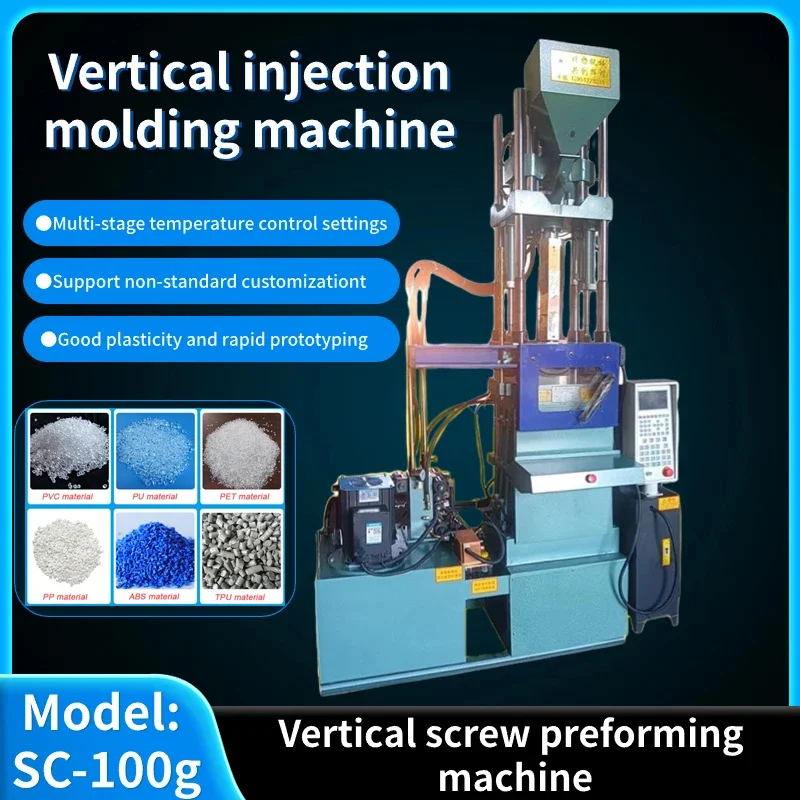

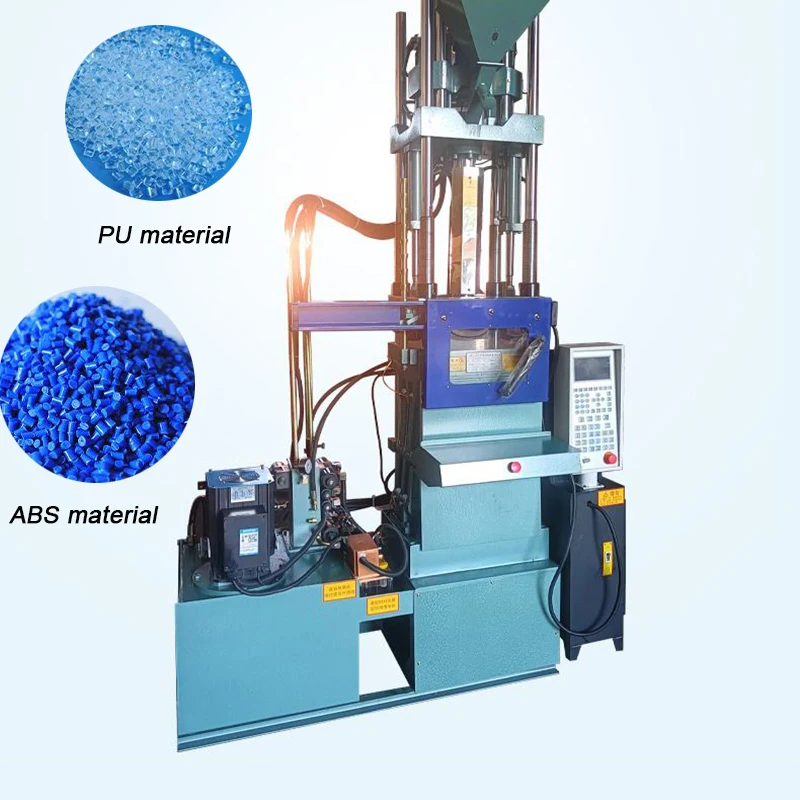

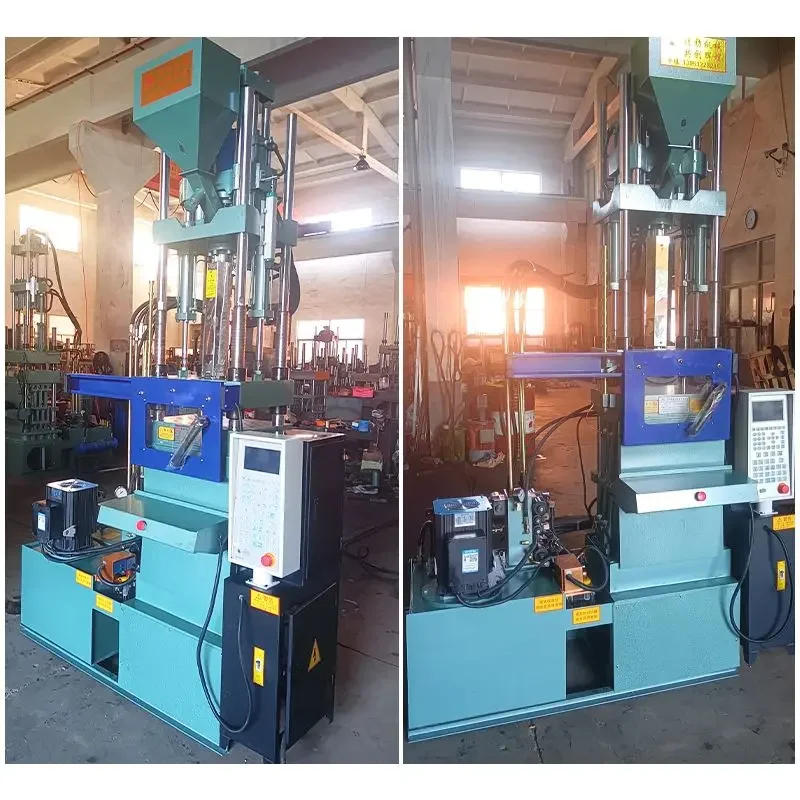

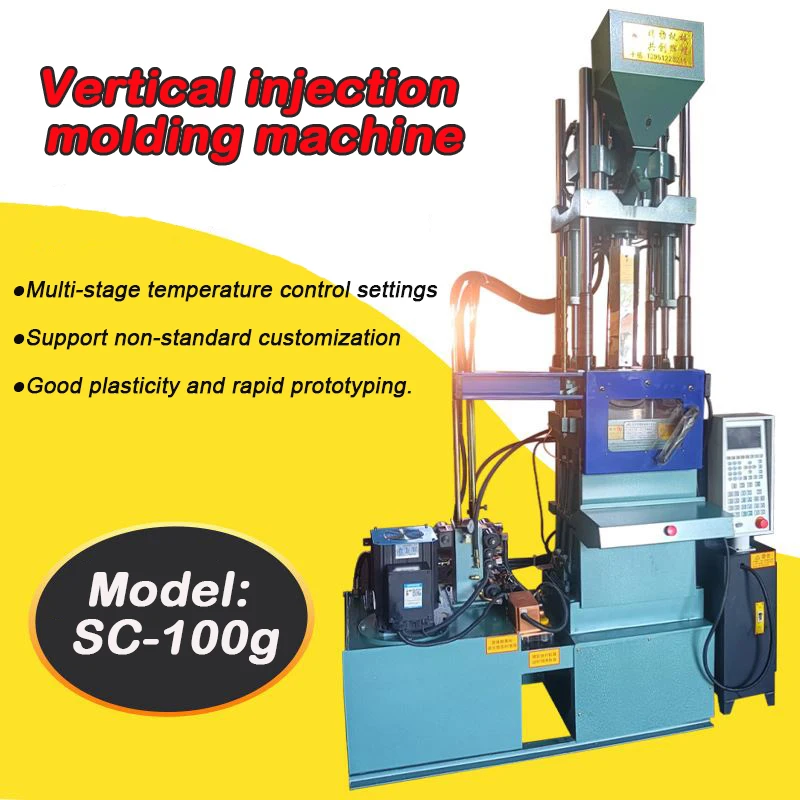

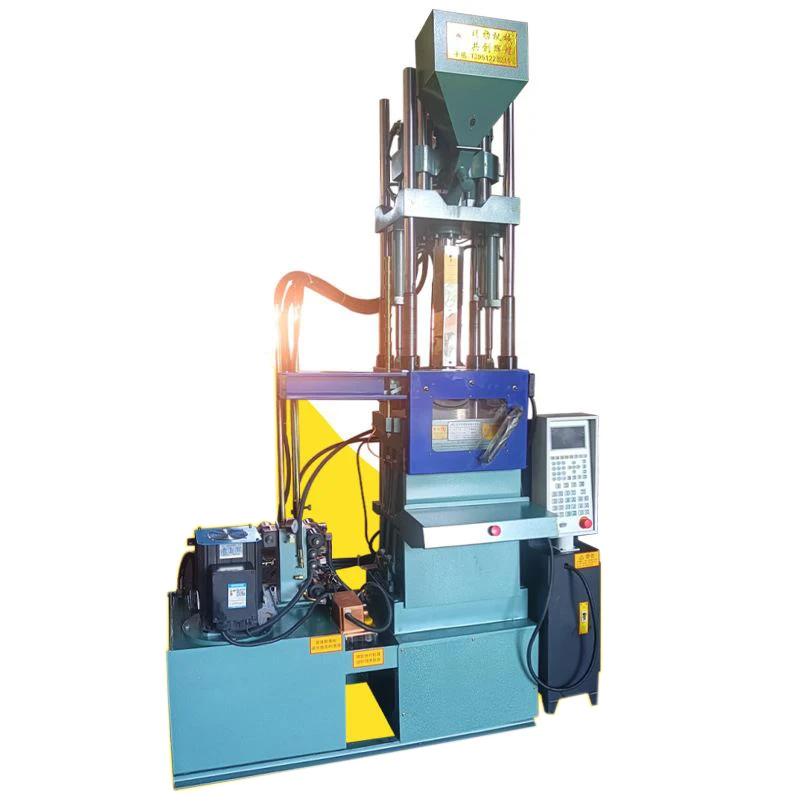

220V/110V 1-100g Injection Molding Machine Vertical Screw Molding Machine 320mm USB Plastic stroke Injection Molding Machine – 220V
$45,083.23
- AUD: A$70,012.90
- GBP: £37,575.97
- EUR: €43,757.78
- JPY: ¥7,087,445
- CNY: ¥328,958.80
Description
- Condition: New
- Model Number: ZSJ
- Type: Vertical
- Brand Name: XMSJ
- Origin: Mainland China
- Certification: CE
If you choose the seller’s shipping method, the prices in most countries include double customs clearance and door-to-door delivery (excluding Asian and South American countries)
For more information, please contact us for consultation

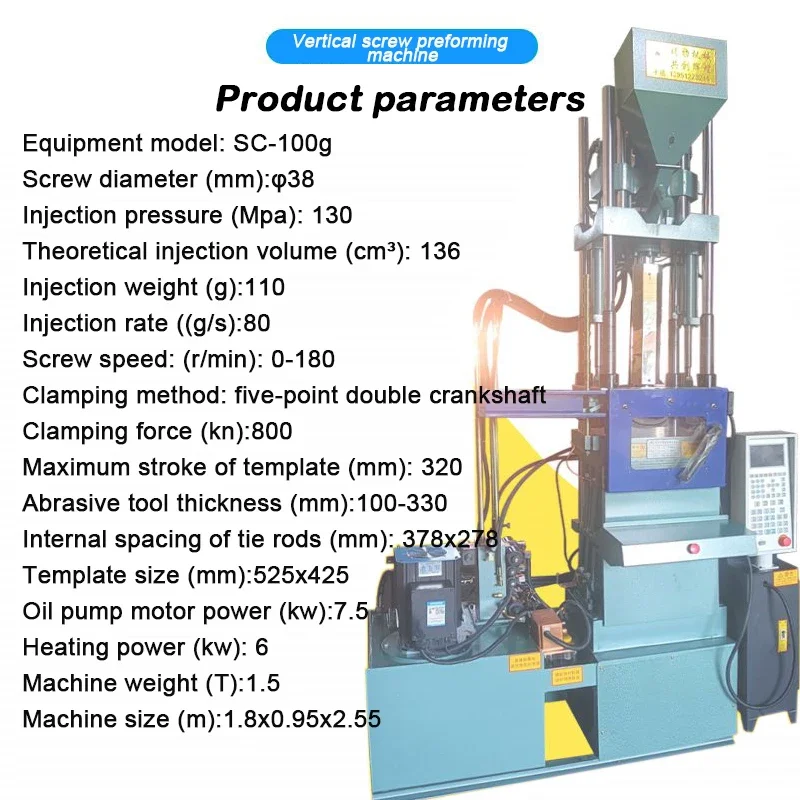

Product parameters
Voltage: 220V/110V (optional)
Oil pump motor power: 7.5KW
Screw diameter: 38mm
Injection pressure: 130MPa
Theoretical injection volume: 136cm ³
Maximum injection weight: 100g
Injection rate: 80g/s
Screw speed: 0-180r/min
Locking mode: five fulcrum hyperbolic axis
Locking force: 800KN
Maximum stroke of template: 320mm
Mold thickness: 100-330mm
Distance between pull rods: 378 * 278mm
Template size: 525 * 425mm
Heating power: 6KW
Machine weight: approximately 1.5T
Machine size: approximately 180 * 95 * 255cm
Specification
Additional information
| Weight | 100 kg |
|---|
