Description

  • Condition: New
  • Model Number: LQJBJ
  • Type: Vertical
  • Brand Name: XMSJ
  • Origin: Mainland China
  • Certification: CE
Reminder: Because this product is too large and heavy, it can only be shipped by sea. If you need to purchase it, please contact the seller for a lower shipping cost. By default, it will be shipped by sea

Product Description

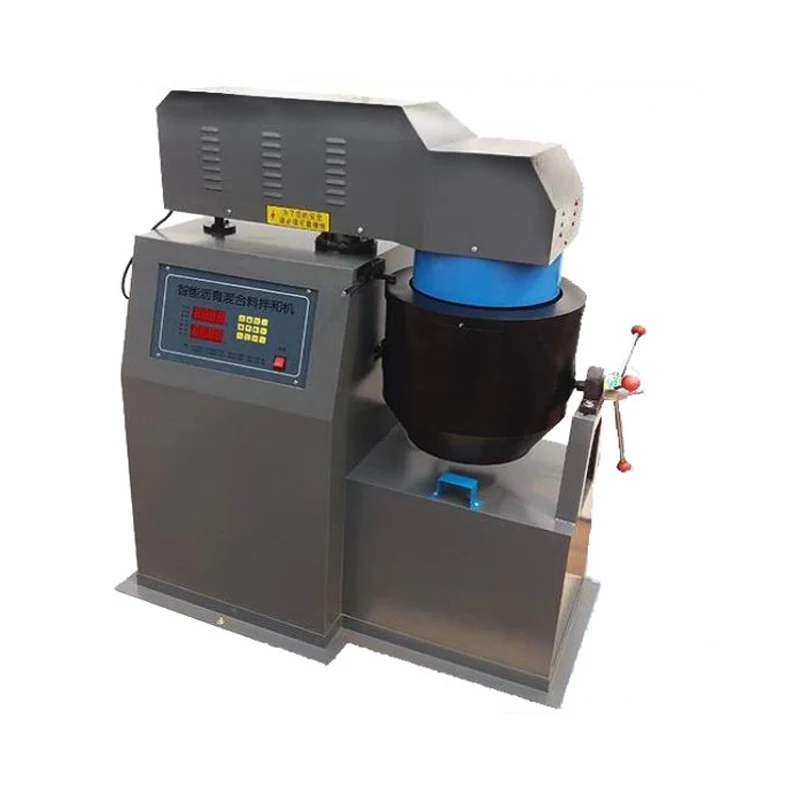

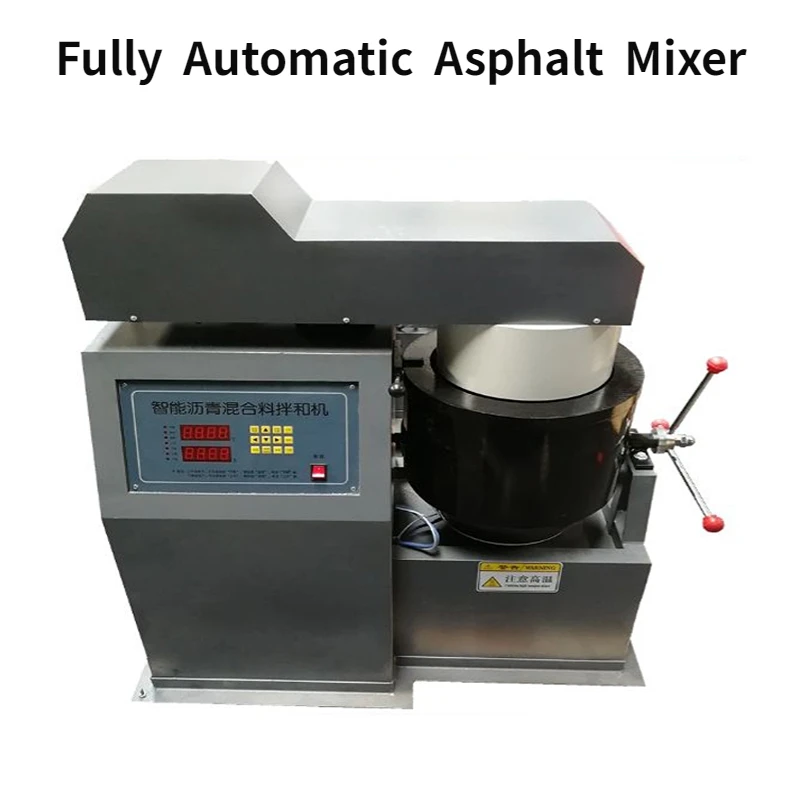

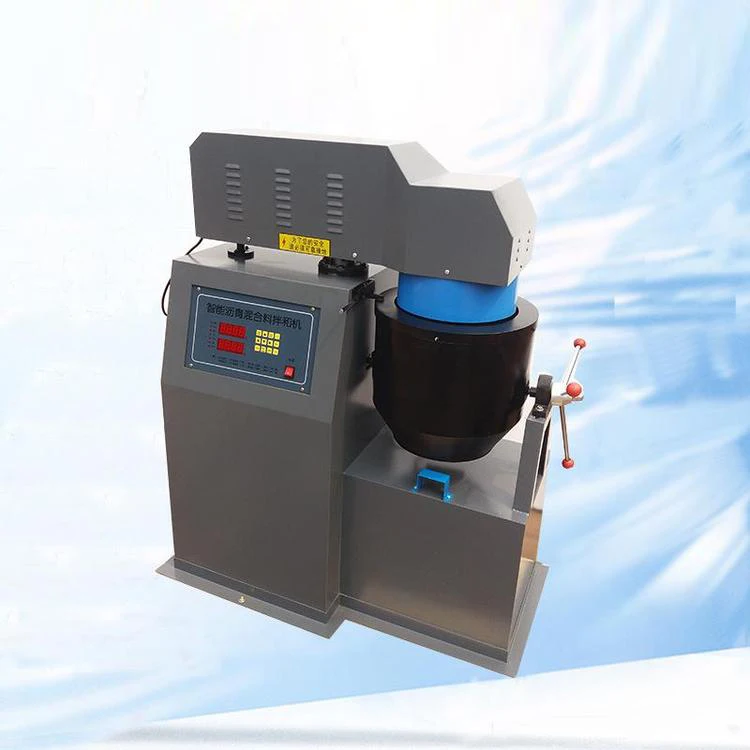

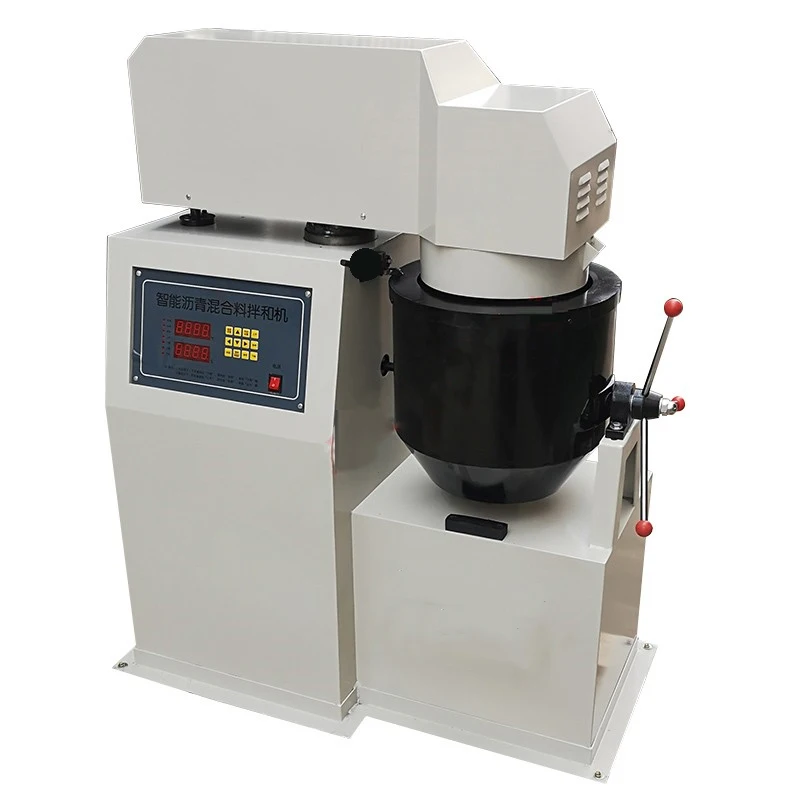

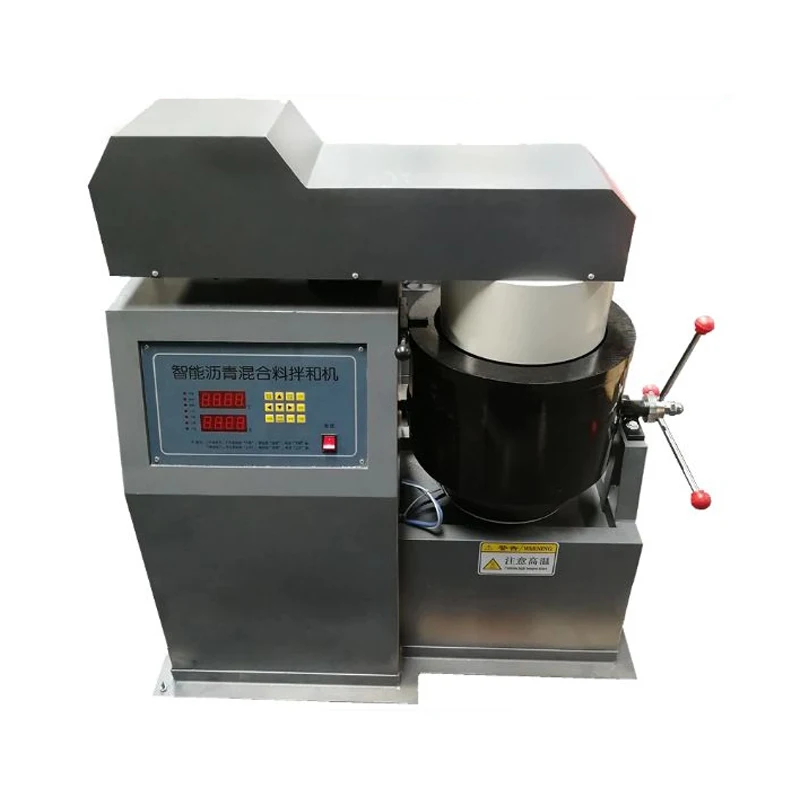

The intelligent asphalt mixture mixer is used for hot mixing various asphalt mixtures, as well as cold mixing various cement, lime, and other mixtures to replace manual mixing operations. This machine is widely used in scientific research, construction, and supervision department laboratories of highway systems.

Technical parameters:

Mixing capacity: 10/20 liters
Heating pot temperature range: room temperature~250 ℃ (arbitrary setting)
Temperature control accuracy: ± 3 ℃
Mixing time: 1-999 seconds (any setting)
Mixing paddle speed: 48 revolutions per minute
Rotation 76 rpm

Working conditions:

Temperature: -10 ℃~40 ℃
Relative humidity: not more than 80%
Power supply voltage: 220V
Current: 15A

1. Installation of the machine
Install the machine after unpacking. The installation of the ground should have a good foundation, and the distance from the wall and nearby fixtures should be greater than 0.6 meters. It can be fixed with or without foundation screws. When installing, the machine should be placed on a concrete foundation and kept stable without vibration.
When installing the power supply, the machine should have a good grounding to prevent electric leakage and injury to people.

2. Operation Panel Description
The operation panel is shown in Figure 3, which is divided into three independent parts, which control the temperature of the heating pot (on the left side); Control the lifting of the mixer (on the right side) and the mixing time (in the middle).

3. Heating pot temperature control
According to work needs, the required temperature is set by the dial and controlled and displayed by a temperature control meter. The temperature control mode of this machine is on-off. Due to thermal inertia, the displayed values on the temperature control meter have overshoot phenomenon, which is normal. The preset temperature value should prevail.

There is a knob in this section that indicates the “work” and “stop” positions. When temperature control is needed for the mixture, it is turned to the “work” position. When temperature control is not needed, such as for the mixing of cement mixture, the knob is turned to the “stop” position. At this time, the heater stops working.

4. Mixing time control
According to the regulations, the required time is set by the preset key. When working, press the “Start” button and the mixing motor starts to rotate. The mixing head drives the mixing paddle to perform revolution and rotation movements. After reaching the set time, the motor automatically stops. The next operation can only be carried out after “reset”. When encountering an emergency situation, the “reset” button can be pressed at any time to immediately stop the mixer from working.

5. Mixer lifting control
On the right side of the operation panel, there are “up”, “down”, and “emergency stop” buttons. When the “up” or “down” buttons are pressed, the mixer automatically rises to the highest or lowest position. If there is an emergency during the movement of the mixer, the “emergency stop” button can be pressed, and the mixer immediately stops moving.
