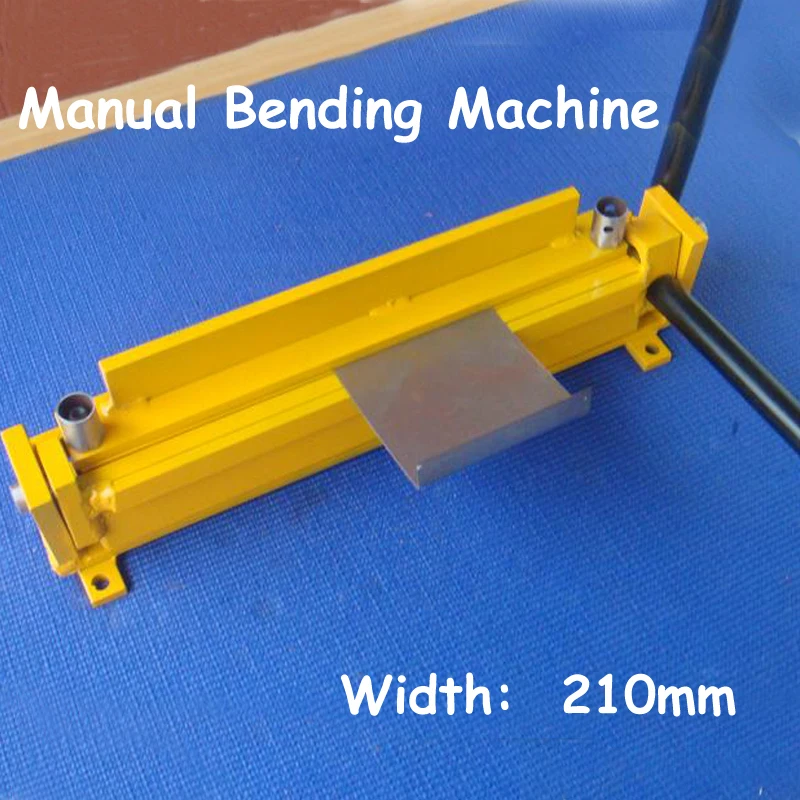

210MM Multi-function DIY Small Manual Bending Machine Folding Machine Iron Sheet Metal Bending Plate Bending Machine – 100mm
$101.14
- AUD: A$157.07
- GBP: £84.30
- EUR: €98.17
- JPY: ¥15,900
- CNY: ¥737.99
Description
DIY Small Bending Machine Manual Iron Sheet Folding Machine Aluminum Plate Bending Machine
Folding edgeProcessing capacity:
The maximum width: 0-210mm. Note: 0-210mm refers to the moment between the outermost two screws. Two sleeve wrench the distance between the outermost circle is 0-210mm.
Thickness: <2.0mm.
Minimum bending angle: 90 ° (slightly larger to prevent material rebound, the thinner the material, the greater the bounce angle).
Applicable materials:
Galvanized sheet, an aluminum plate (thickness can be suitably thicker), iron,
Copper (thickness may be appropriate a little thicker), stainless steel (thickness to be thinner) and so on.
The machine’s features are: Each part is very simple, thick, easy to process, not easy to damage.
Installation method:
1. Under normal circumstances, this product does not need to be fixed.
2. But fixing the machine will make it more convenient. (Small quantities, then there is no problem. Large quantities of the machine fixed more convenient)

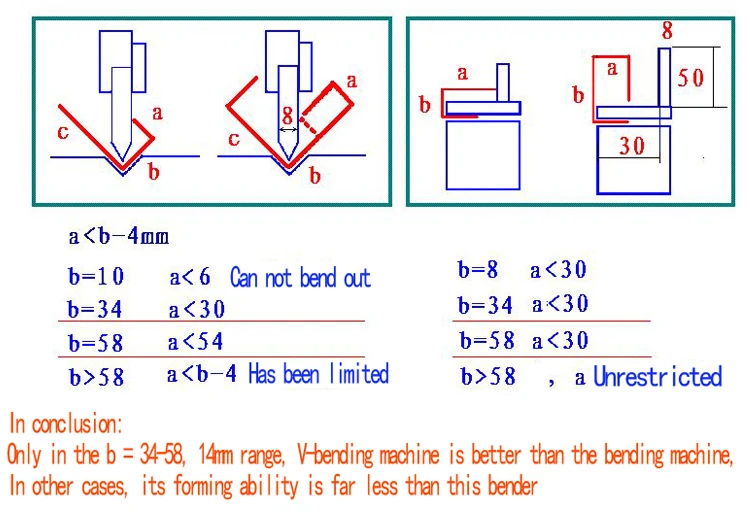

Contrast with other types of bending machines:
Features 1. With Coil processing capacity, processing rectangular tubes, polygonal tubes Machinable 35 * 43 above any closed rectangular tube.
T-shaped platen is designed for a thickness of 2.0, with thinner material or lower strength material,
The size can be smaller, customers can expand a variety of different pressure plate.
Features Description:
1. The bending machine with a multi-purpose machine, you can when the bending machine, but also when the bending machine (cross-section rectangular), a multi-purpose machine
2. The bending machine easy to use, without additional clamping device (such as vise, etc.), anytime, anywhere can be used, weighing about 10kg.
DIY Small Bending Machine Manual Iron Sheet Folding Machine Aluminum Plate Bending Machine
Folding edgeProcessing capacity:
The maximum width: 0-210mm. Note: 0-210mm refers to the moment between the outermost two screws. Two sleeve wrench the distance between the outermost circle is 0-210mm.
Thickness: <2.0mm.
Minimum bending angle: 90 ° (slightly larger to prevent material rebound, the thinner the material, the greater the bounce angle).
Applicable materials:
Galvanized sheet, an aluminum plate (thickness can be suitably thicker), iron,
Copper (thickness may be appropriate a little thicker), stainless steel (thickness to be thinner) and so on.
The machine’s features are: Each part is very simple, thick, easy to process, not easy to damage.
Installation method:
1. Under normal circumstances, this product does not need to be fixed.
2. But fixing the machine will make it more convenient. (Small quantities, then there is no problem. Large quantities of the machine fixed more convenient)
Contrast with other types of bending machines:
Features 1. With Coil processing capacity, processing rectangular tubes, polygonal tubes Machinable 35 * 43 above any closed rectangular tube.
T-shaped platen is designed for a thickness of 2.0, with thinner material or lower strength material,
The size can be smaller, customers can expand a variety of different pressure plate.
Features Description:
1. The bending machine with a multi-purpose machine, you can when the bending machine, but also when the bending machine (cross-section rectangular), a multi-purpose machine
2. The bending machine easy to use, without additional clamping device (such as vise, etc.), anytime, anywhere can be used, weighing about 10kg.
Specification
Additional information
| Weight | 100 kg |
|---|
