Factory Direct Wholesale Multi-color Intelligent Yarn Dyeing Systems Multi Color Yarn Dyeing Machine Fancy Master
A$178,203.31
- USD: $120,487.50
- GBP: £95,641.83
- EUR: €111,376.35
- JPY: ¥18,039,619
- CNY: ¥837,296.30
Description
Product descriptions from the supplier
Product Description
>Fancy Master
-Multi-color Intelligent Yarn Dyeing Systems
-Fancy Master, which has an ergonomic and easy to use construction, is designed to work efficiently with its structure that allows maximum 60 wire thread passes with plc controlled movable arm in desired report size lengths
It provides the opportunity to create a soiling pattern and ground pattern color on the yarn and to get different effects on the yarn.
-It is designed for high efficiency operation with special software and panel design that enables the super nozzle sets to open multiple times within seconds with special electromechanical valves. The system, which is integrated with a 400-rpm rotary spray system with 16 nozzles, 1 to 16 nozzles that can be operated individually, has been specially designed to achieve the desired dot effects on the yarn.
-There is an automatic controlled cooling system in the dye tank and a mixer to ensure a homogeneous mixture. Dye Reservoirs are specially designed in a different form to prevent dye spillages.
-The desired dyeing pressure is provided with the help of the relief valve with the high efficiency stainless pumps with
double-stage 4 bar 75 L / min. capacity.
-The machine dyeing units have an automatic timed rotary washing system in order to wash the reservoir in the upper reservoir.
-The top covers of the dye hoppers are equipped with a pneumatically controlled system in order to facilitate the yarn passages.
-The front main cover system of the machine is designed so that it can be safely opened vertically with the pneumatic system.
-The automatic level-controlled painting tank, which has a self-washing system that allows the use of a 250-liter bath, provides high-capacity single color dyeing.

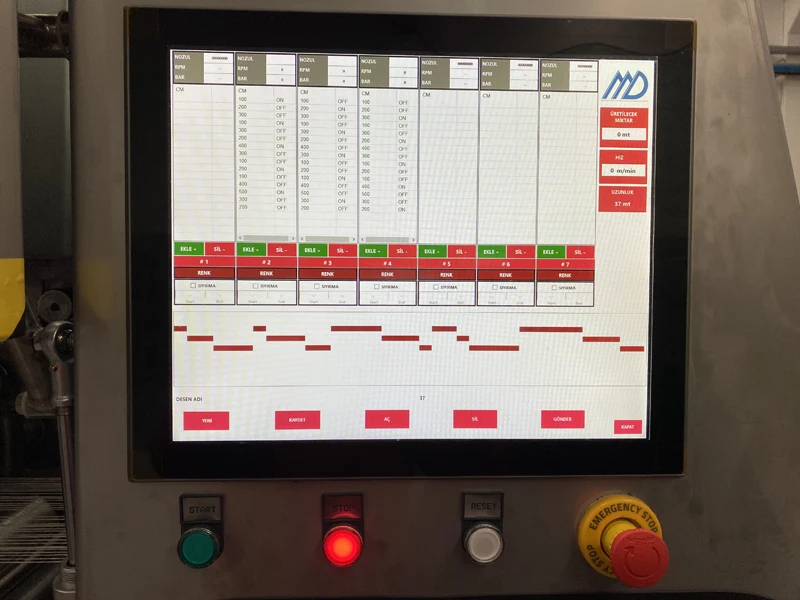

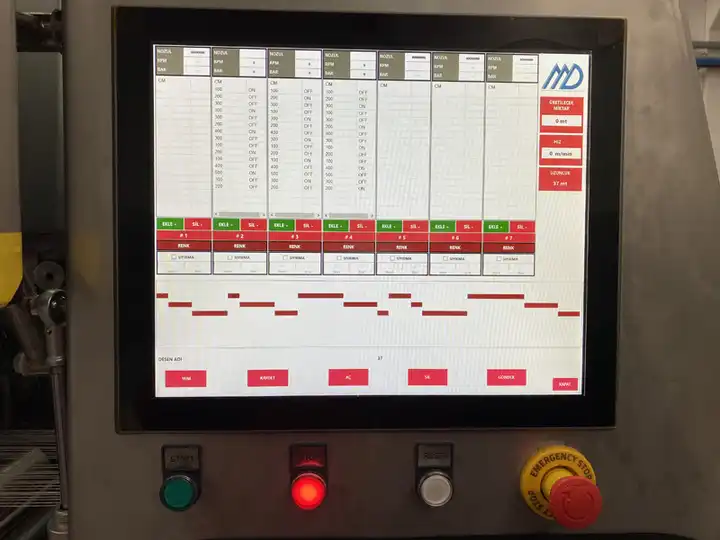

-By special PLC and screen software, it provides the opportunity to enter and monitor the desired report sizes with an easy
interface suitable for operator use. Recipes can be backed up with the help of USB or stored in the encrypted locker. 17
“Multitouch I5 4200 U 8 GB ram 128 GB SSD Wifi Windows 10 Pro Industrial PC was used for software and control.
In terms of work safety, the operator walkway is designed to be detachable from special composite material.
-Multi-color Intelligent Yarn Dyeing Systems
-Fancy Master, which has an ergonomic and easy to use construction, is designed to work efficiently with its structure that allows maximum 60 wire thread passes with plc controlled movable arm in desired report size lengths
It provides the opportunity to create a soiling pattern and ground pattern color on the yarn and to get different effects on the yarn.
-It is designed for high efficiency operation with special software and panel design that enables the super nozzle sets to open multiple times within seconds with special electromechanical valves. The system, which is integrated with a 400-rpm rotary spray system with 16 nozzles, 1 to 16 nozzles that can be operated individually, has been specially designed to achieve the desired dot effects on the yarn.
-There is an automatic controlled cooling system in the dye tank and a mixer to ensure a homogeneous mixture. Dye Reservoirs are specially designed in a different form to prevent dye spillages.
-The desired dyeing pressure is provided with the help of the relief valve with the high efficiency stainless pumps with
double-stage 4 bar 75 L / min. capacity.
-The machine dyeing units have an automatic timed rotary washing system in order to wash the reservoir in the upper reservoir.
-The top covers of the dye hoppers are equipped with a pneumatically controlled system in order to facilitate the yarn passages.
-The front main cover system of the machine is designed so that it can be safely opened vertically with the pneumatic system.
-The automatic level-controlled painting tank, which has a self-washing system that allows the use of a 250-liter bath, provides high-capacity single color dyeing.
-By special PLC and screen software, it provides the opportunity to enter and monitor the desired report sizes with an easy
interface suitable for operator use. Recipes can be backed up with the help of USB or stored in the encrypted locker. 17
“Multitouch I5 4200 U 8 GB ram 128 GB SSD Wifi Windows 10 Pro Industrial PC was used for software and control.
In terms of work safety, the operator walkway is designed to be detachable from special composite material.
|
item
|
value
|
|
Applicable Industries
|
Manufacturing Plant, Other, Yarn Dyehouses, Textile Plants, Textile Dyehouses
|
|
Showroom Location
|
Turkey
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2021
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC, Bearing, Motor, Pump
|
|
Condition
|
New
|
|
Automatic Grade
|
Automatic
|
|
Place of Origin
|
Turkey
|
|
Bursa
|
|
|
Brand Name
|
Doru
|
|
Voltage
|
380v
|
|
Power
|
8 kw
|
|
Dimension(L*W*H)
|
6500 x 2500 x 2000
|
|
Weight
|
1500KG
|
|
Warranty
|
2 years
|
|
Production Capacity
|
According to yarn type and design
|
|
Product name
|
Multi Color Yarn Dyeing Machine
|
|
Type
|
Fancy Master 7
|
|
Key word
|
Space Dyeing, Yarn Dyeing, Multi Color Yarn Dyeing
|
|
Control
|
Computer Control
|
|
Material
|
304 Stainless Steel
|
|
Temperature control range
|
Room Temperature+5~70
|
|
Application
|
Kinds
|
|
MAX. working pressure
|
Atmospheric Pressure
|
|
Features
|
High Efficiency
|
Related Products
Packing & Delivery
|
Packaging and Shipping
|
Export Value Package
|
|
Minimum Order Quantity
|
1
|
|
Delivery Time
|
60 days after order
|
Customer Service
Company Profile
We are a textile machinery and machinery company located in Bursa, Turkey.
We have many years of knowledge and experience in the Textile Machinery Sector and manufacture a wide variety of machines for yarn and fabric dyeing / finishing.
For Yarn Dyeing;
Fancy Master – Multi-color Intelligent Yarn Dyeing Systems
Multi-Color Hank Dyeing Machine
Multi-Color Cone Dyeing Machine
Package Dyeing Machine
Sample Dyeing Machines for cone and hank
Hank Dyeing Machine
Piece/Socks Dyeing Machine
For Yarn Finishing;
Cone and Hank Dryer Machine
Steam Master – Yarn Fixing and Conditioning Machine
Hydro Extractor Machine
For Fabric Dyeing;
Fabric Dyeing Machine for woven and knitted fabrics
Beam Dyeing Machine
For Fabric Finishing;
Wet Fabric Rope Opener Machine
Foulard / Fabric Squeezing Machine
Printing / Dye Kitchens
Screen Washing Machine
Molding Washing Machine
Squeegee Washing Machine
Drum Washing Machine
We have some other machines like contsruction machinery,cnc, metal work , automation system and etc.
We have many years of knowledge and experience in the Textile Machinery Sector and manufacture a wide variety of machines for yarn and fabric dyeing / finishing.
For Yarn Dyeing;
Fancy Master – Multi-color Intelligent Yarn Dyeing Systems
Multi-Color Hank Dyeing Machine
Multi-Color Cone Dyeing Machine
Package Dyeing Machine
Sample Dyeing Machines for cone and hank
Hank Dyeing Machine
Piece/Socks Dyeing Machine
For Yarn Finishing;
Cone and Hank Dryer Machine
Steam Master – Yarn Fixing and Conditioning Machine
Hydro Extractor Machine
For Fabric Dyeing;
Fabric Dyeing Machine for woven and knitted fabrics
Beam Dyeing Machine
For Fabric Finishing;
Wet Fabric Rope Opener Machine
Foulard / Fabric Squeezing Machine
Printing / Dye Kitchens
Screen Washing Machine
Molding Washing Machine
Squeegee Washing Machine
Drum Washing Machine
We have some other machines like contsruction machinery,cnc, metal work , automation system and etc.
FAQ
1. who are we?
We are based in Bursa, Turkey, start from 2014,sell to Domestic Market(32.00%),Southeast Asia(12.00%),Southern Europe(10.00%),Mid East(7.00%),Eastern Europe(5.00%),North America(5.00%),South Asia(5.00%),South America(5.00%),Africa(5.00%),Northern Europe(4.00%),Central America(3.00%),Eastern Asia(3.00%),Western Europe(2.00%). There are total about 5-10 people in our office.
We are based in Bursa, Turkey, start from 2014,sell to Domestic Market(32.00%),Southeast Asia(12.00%),Southern Europe(10.00%),Mid East(7.00%),Eastern Europe(5.00%),North America(5.00%),South Asia(5.00%),South America(5.00%),Africa(5.00%),Northern Europe(4.00%),Central America(3.00%),Eastern Asia(3.00%),Western Europe(2.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Textile Machinery,Machinery,Automation,Metal Work,Metal
4. why should you buy from us not from other suppliers?
Experience 20 years in Global Business especially in Middle East and Asia. Manufacturing, Marketing research, Consultancy. Advising. Professional vision, trust and solution oriented work.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Specification
