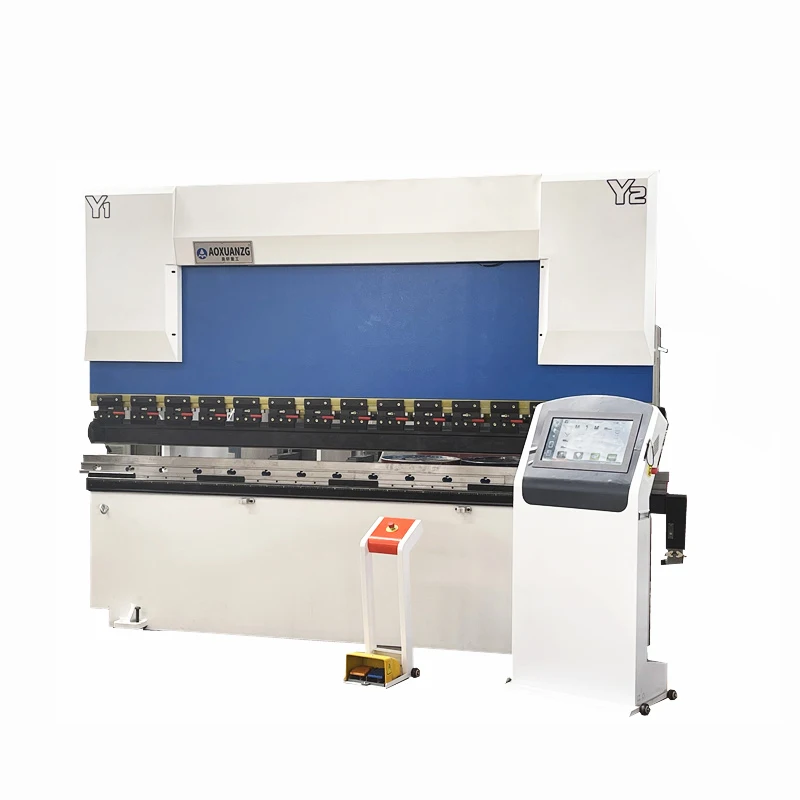

2021 New Design 4+1Axis Electric Hydraulic Press Brake Bending Iron Stainless Steel Forming Machine With TP10S System

Product description

Press brake is a kind of machine specially in bending plate, mainly used in automotive manufacturing, kitchen appliance manufacturing electricity poles, lamp posts, ship-building, military industry, steel industry, mechanical manufacturing. Bending dies can be designed and changed according to customers' different needs.Main types of press brake produced by our company are: manual torsion, CNC torsion press brake, electro-hydraulic press brake, large electro-hydraulic synchronization press brake Currently, production for many years and stable performance. manufacturing, electricity poles, lamp posts, ship-building, military industry, steel industry, mechanical manufacturing. Bending dies can be designed and changed according to customers' different needs. Main types of press brake produced by our company are: manual torsion, CNC torsion press brake, electro-hydraulic press brake,large electro-hydraulic synchronization press brake Currently, many years, and stable performance.

Main Features

1.All the components of the machine are designed under the instruction of the Computer aided design and software of CAD/CAE/CAM to fully guarantee the intensity and rigidity of all the components.
2.The whole body under total wielded, thickness and reliable in machine body with high-rigidity and good in shock absorption reduction.
3.The machine structure are composed by body frame, working table, slide block, main cylinder and backgauge.The advantage design and produce style can ensure the machine usage and high precision.The main produce procedure as below(all process under strictly inspection)
4.Plate stock—-physical and chemical inspection—-Plate Pre-treatment (Rust-Cleaning) — CNC flame Cutting– Cutting the welded joint—-Group Welding—-Gas Shielded Welding—Ageing treatment—-Milling Planer working—-The Assembly of finished products
5.The machine body, Slide Block, Working table and other main components are under one time clamping of large landing boring and milling machine to ensure several geometric accuracy of the main machine.
6.The machine is greatly enhanced in anti-torque and electronic load resistance. Machine can normally work in full loaded situation. Working table, Upright Column, Crossbeam and Ram are good and high in design rigidity. Little deformation between the working table and ram when work to guarantee good straightness and uniformity in angle

Note:The two oil tanks are equipped with two servo motors to control the operation through the system and the grating ruler. Improve machining accuracy.

Note:The factory developed by ourselves, although it is a torsion axis bending machine, it is driven by double servos. High-precision 4+1 axis control is used for the processing of various complex workpieces. High cost performance.

TP10S Main Features(press brake）
1.HD LCD display,with both Chinese and English optional page display programming parameters,faster and easier to write programs.
2.X,Y-axis intelligent positioning ,can also be manually adjusted as needed to remove the mechanical hand positioning device.
3.Built-in dwell time,uploading delay setting function,the operation easier,without time relay,to reduce costs.
4.With the function of one button backup and restore,always can restire parameters as required to reduce the maintenance costs.
5.Support multi-step programming,complex workpieces can complete a process,improve production efficiency and machining accuracy.
6.All keys on the panel are micro-switches,through EMC,high temperature,vibration and other rigorous testing to ensure product stability and service life.
7.CE certified to meet the needs of overseas markets.

Note:The standing operating system is more stable and easy to operate.

Wireless bluetooth control for easy operation

Standard configuration

※ Germany Rexroth valve group

※ Pipe joint Germany EMB

※ Siemens Motors, Germany

※ Sunny oil pump, the US

※ Ball screw linear guide, Tawan(China)

※ Schneider Electric System, France

※ a set of mold for free (if you want a customized mold, just tell us, we can customized them for you.)

※ Front support

※ High accuracy backguage

※ Side guardrail and rear guardrail(Optional)

※ Light curtain protection and Laser protection (Optional)

※ Foot switch

※ Or can be customized by your requirements

Note:High-precision grating rulers are installed on both sides of the machine cylinder.

Manual mechanical compensation device improves the accuracy of bending..

Product Paramenters

Product detail

Certifications

Packing & Delivery

☂ Each Hydraulic Bending Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.

✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.

Delivery Detail :

☀ Shipped in 30 days after paymen

Our Company

Our Service

Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging

* Inquiry and consulting support.
* Sample testing support.

In-sales.

* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sales.
* We will provide free accessories for the damage to non – human parts.

* Training how to install the machine, training howto use the machine with video and so on

* And our technical staff can go abroad to provide technical guidance.

RFQ

1. Are you the manufacture?Can we visit your factory?
We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.

2.What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.Our main foreign market are Asia, North America, Europe, Africa.

3. what are the advantages of your machines?And how can i believe the quality of your product?
The main configuration is to import quality products, and Professional product quality inspection team ensure machine in top-quality, precision and life.
For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on. Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?
Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.

7.Are you provide product metal parts and provide us technical guidance?
Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.

8. How long is your warranty?
13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?
we accept kinds of customized ,including logo and machine .

10.About shipment fees?

Our machine is very largeand the shipping method is sea. The freight cannot be determined. Please confirm with the salesperson.Thanks !
