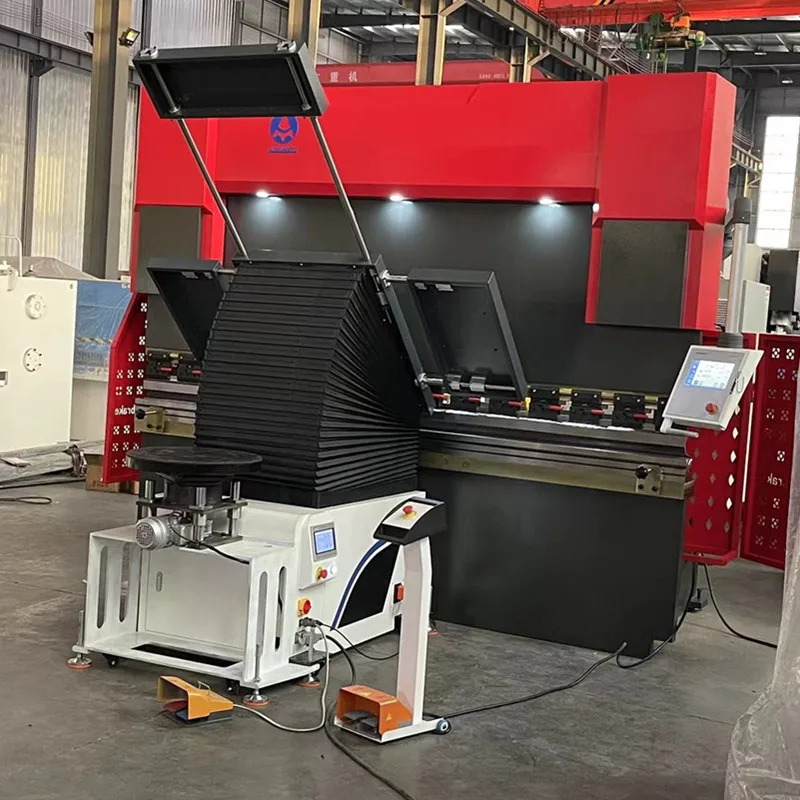

Introduction:

The press folding is a machine that can bend sheet metal. Its structure mainly includes a support, a work table and a clamping plate. The working table is placed on the support which consists of a base and a pressing plate. The base is attached to the clamping plate by a hintering, and is composed of a shell, coil, and cover plate.
When using, the wire is fed to the coil, so that the coil generates a force of attraction on the pressing plate in order to achieve clamping of the sheet between the pressing plate and the base. Due to the use of electromagnetic clamping, the pressing plate can be used in a variety of parts requirements, and parts with side walls can also be processed. The bending press can meet the needs of various parts by changing the mold.

Features:

1. All machine components are designed under the instructions of computer-aided design and CAD/CAE/CAM software to fully guarantee the intensity and rigidity of all components.
2. The whole body under total used, thickness and reliable in the machine body with high rigidity and good reduction of shock absorption.
3. The machine structure is composed of a chassis, a work table, a sliding block, a main cylinder and a rear stop. Advantage design and production style can ensure the use of the machine and high precision. The main production procedure as below (all processes strictly inspection).
4. Plate stock — Physical and chemical inspection — Plate pre-treatment (rust cleaning) — CNC flame cutting — Welded joint cutting — Group welding — Gas protection welding — Aging treatment — Planting milling — Finished assembly of products.
5. The machine body, the sliding block, the worktable and other main components are subjected to a single clamping of a large landing bore and the milling machine to ensure multiple geometric accuracy of the main machine.
6. Machine capacity is greatly increased in anti-torque and electronic charging resistance. The machine can normally work in full load situation. The work table, the vertical column, the Traverse beam and the sliding block are of good design rigidity. Little deformation between the worktable and the junk when working to ensure good rectitude and angle uniformity.

Standard configuration:

IPE Group of valves, Germany Rexroth
IPE Joint, Germany EMB
IPE Oil Pump Sunny, United States
Made ball screw Linear guide, Taiwan HIWIN (China)

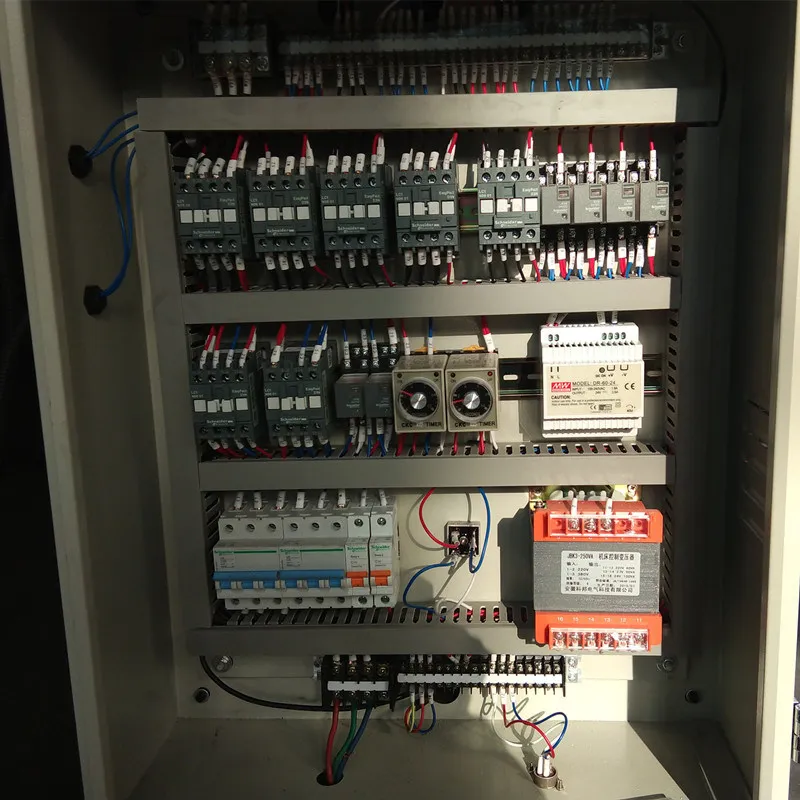

IPE Schneider electric system, France
IPE Front support
Cards High precision backguing
IPE pedal switch
IPE Side railing and rear guardrail (option)
IPE Intangible barrier protection and laser protection (option)
IPE Free mold set (if you want custom mold, tell us, we can customize it for you.)
Aku Or the machine can be customized according to your needs

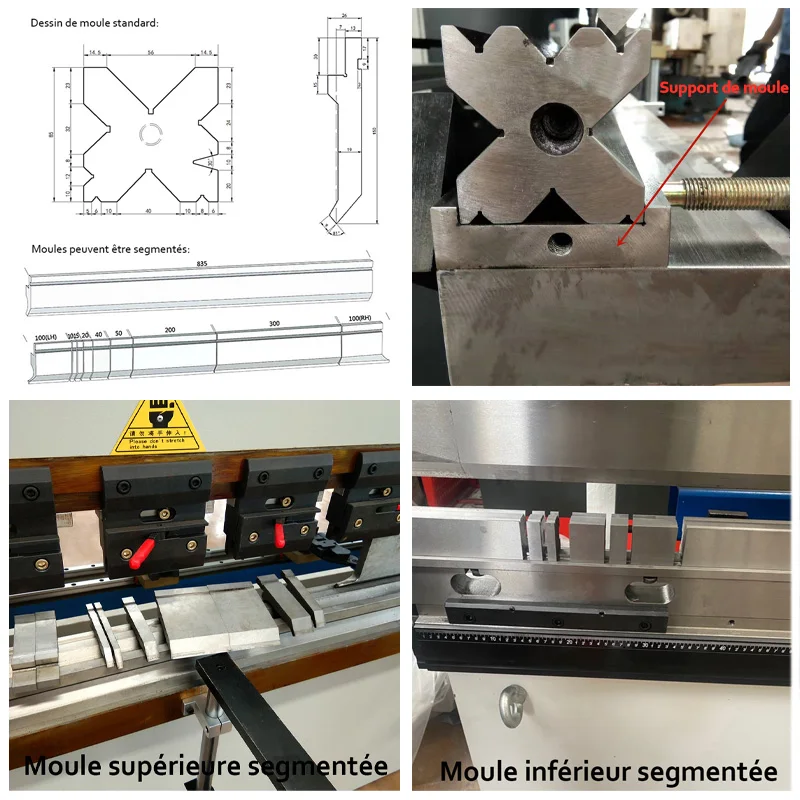

Custom mold

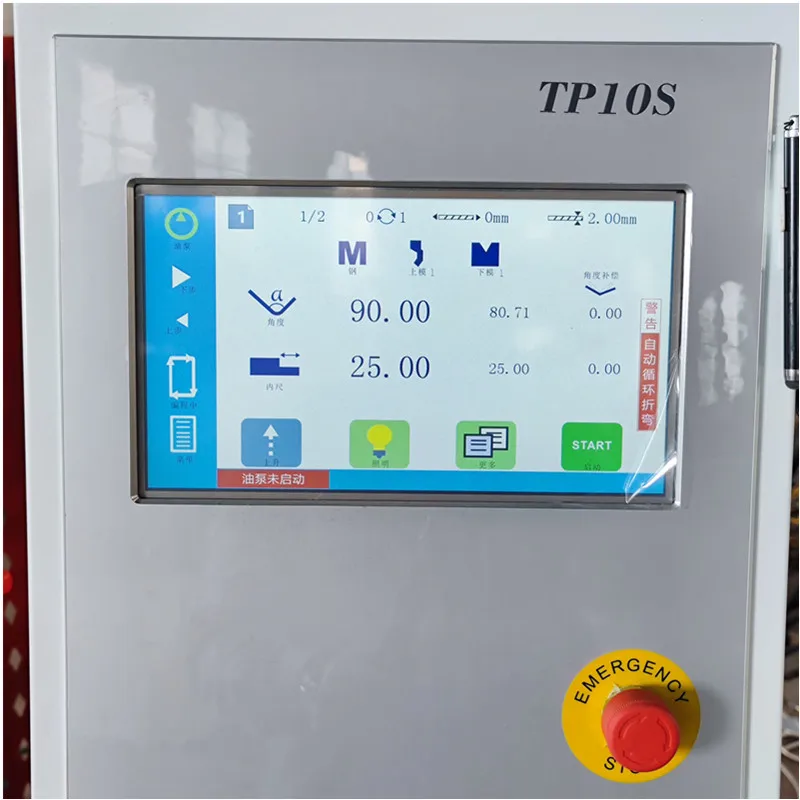

tp10s Controller System:

1. HD LCD screen in Chinese and English, optional page display programming settings, faster and easier to write programs.
2. The intelligent positioning, can also be manually adjusted as needed to remove the positioning device from the manipulator.
3. Built-in residence time, download time setting function, easier operation without time relay to reduce costs.
4. With one-button backup and restore function, you can always restore the settings as required to reduce maintenance costs.
5. Support multi-stage programming, complex parts can complete a process, improve production efficiency and machining accuracy.
6. All the keys of the panel are micro switches, by EMC, high temperature, vibration and other rigorous testing to ensure the stability and service life of the product.
7. CE certified to meet the needs of overseas markets.

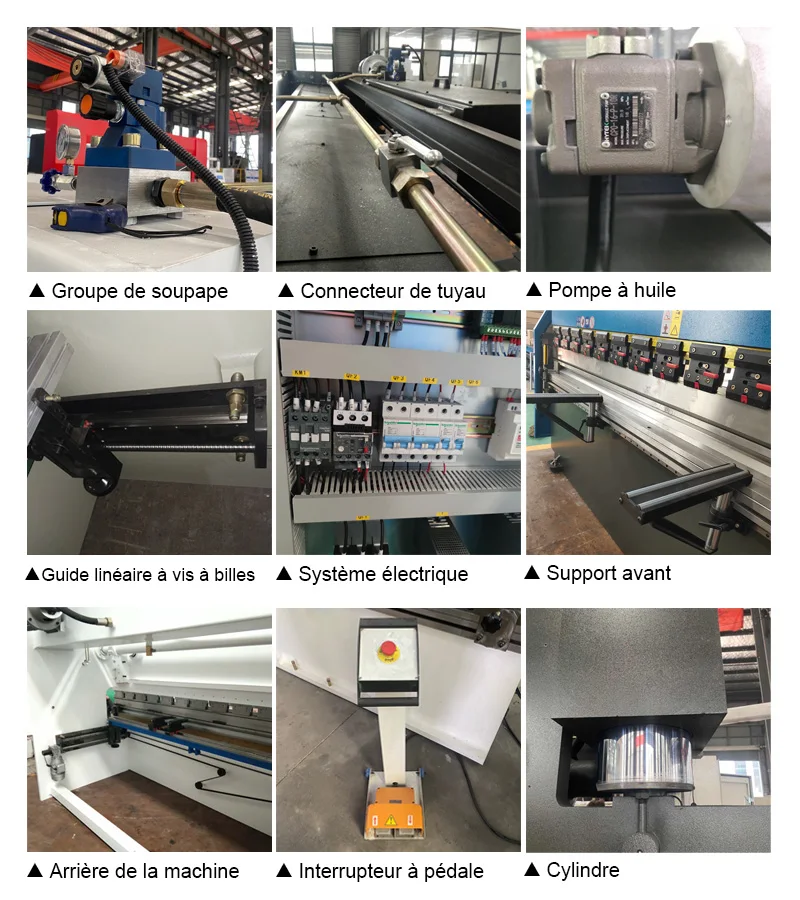

Details:

Parameters:

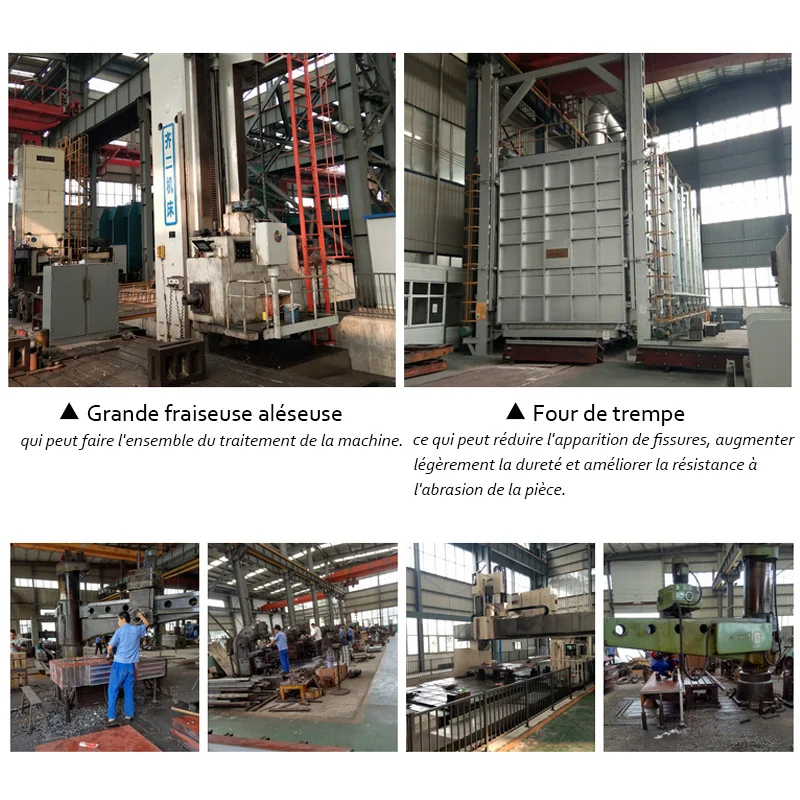

Machine Process:

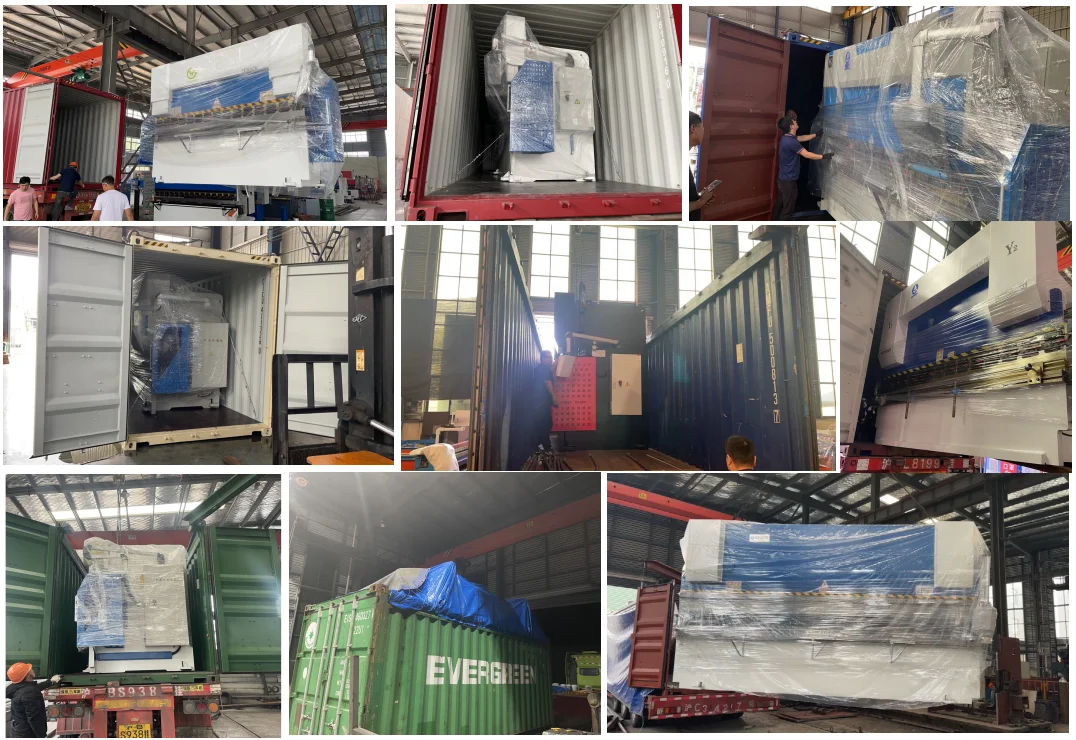

Packaging and Delivery:

2 kinds of means: LCL is for small machine, FLL is for large machine.

Gen LCL: covered in plastic film, packed in wooden crate.
Hugfl: covered by plastic films, packed by a container.

☀Before being packed, the machines will be tested strictly to ensure its stability and high precision.
☂After being tested, the machines will be packed in a plastic cloth, the machine will be securely wired inside the container.
☂Each machine first packed with plastic film, then placed in a wooden crate with foam filling.
✈We loaded the machines with heavy trucks to load the cargo to the port terminal. At the dock, we pack the goods in containers and ship them abroad.

Delivery Detail:
✈Shiped within 30 days after payment.

Certificate:

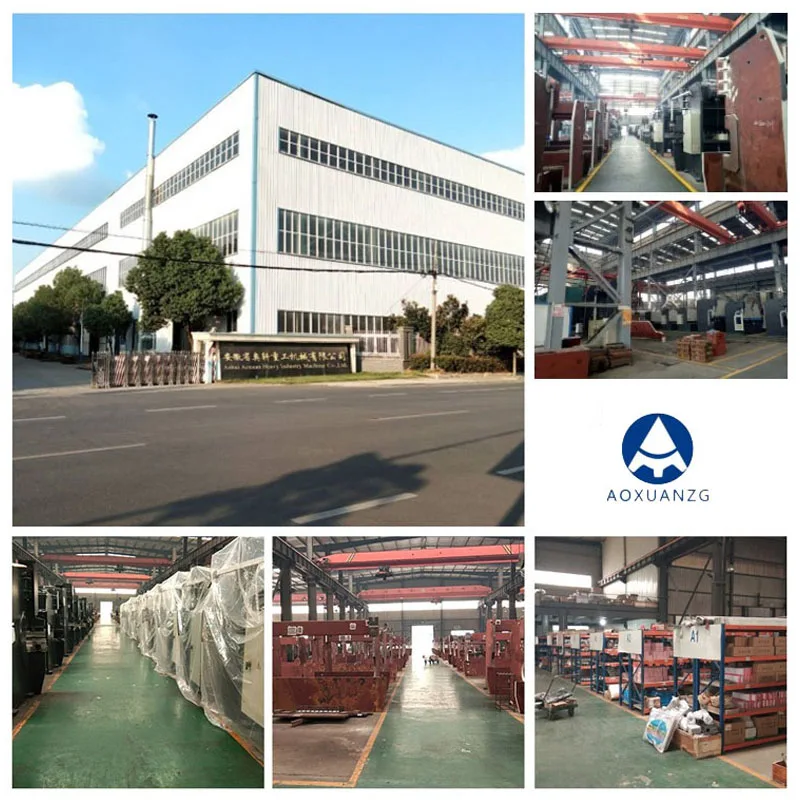

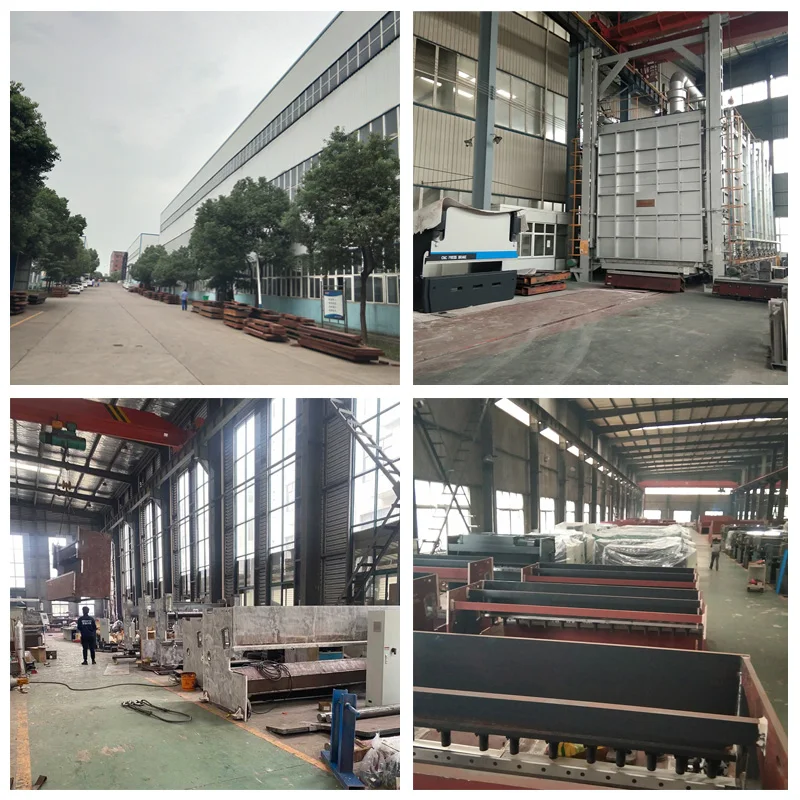

Our Factory:

Exposure:

Coordinate:

Please contact me for details about the machine.
