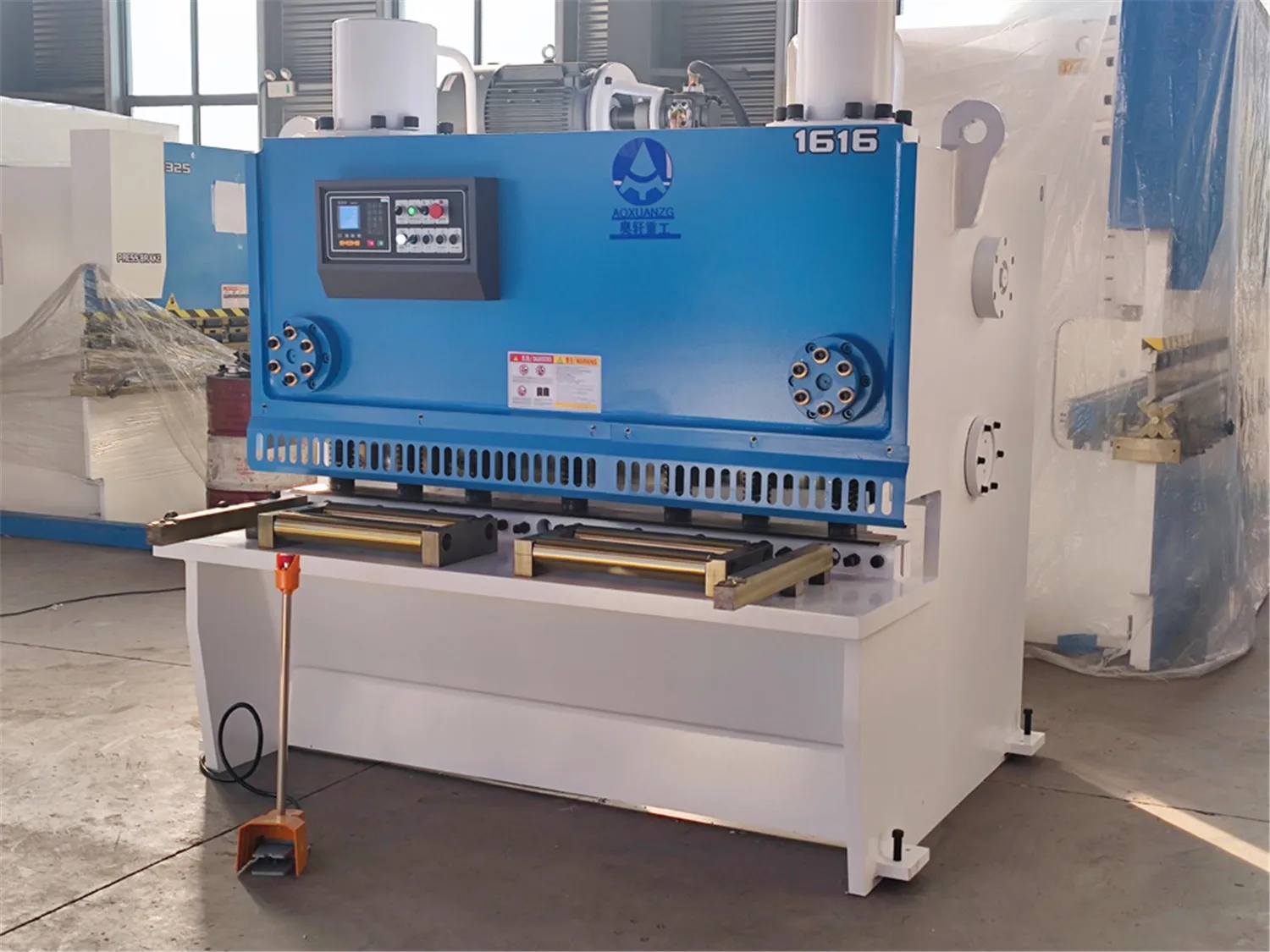

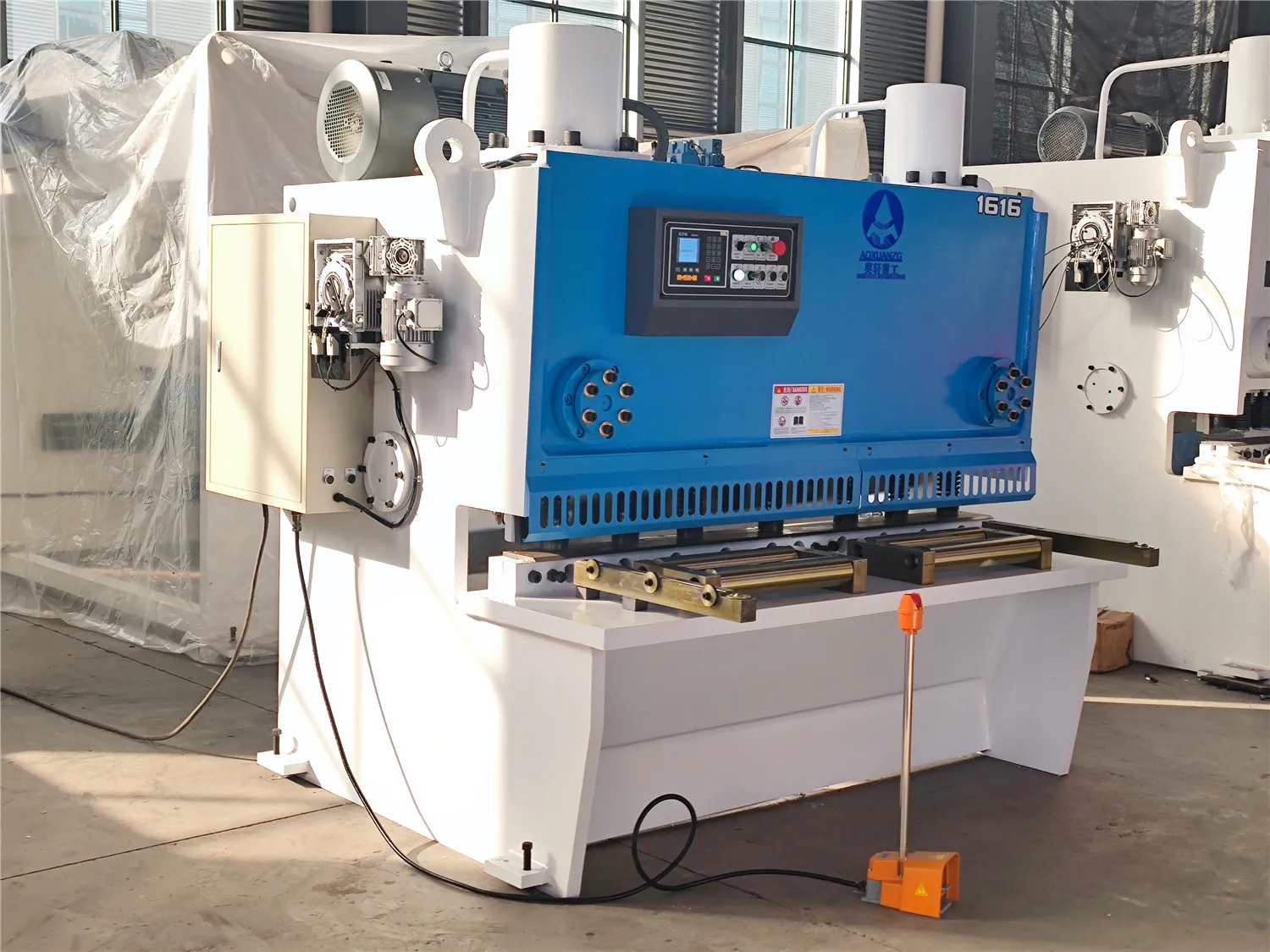

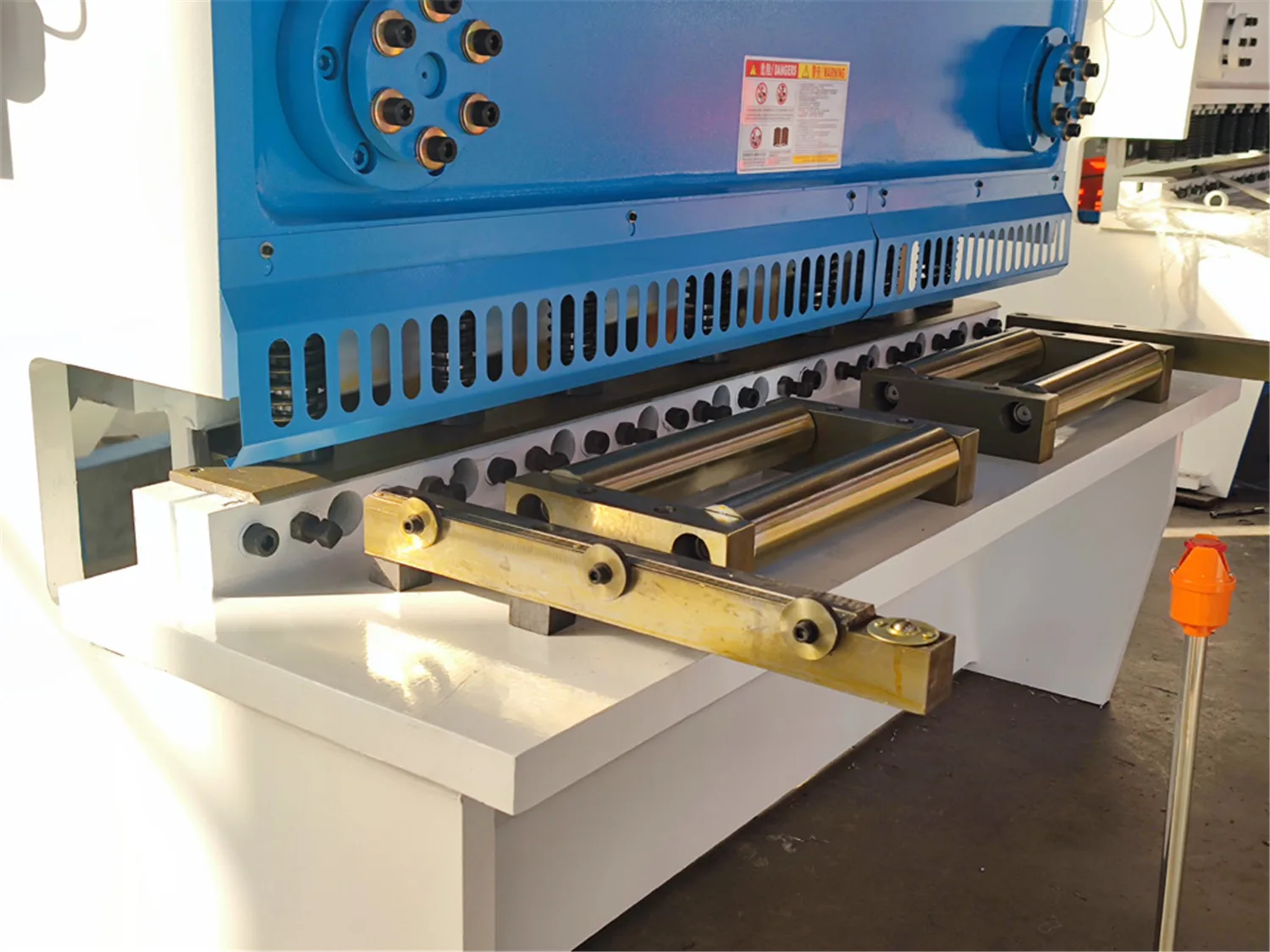

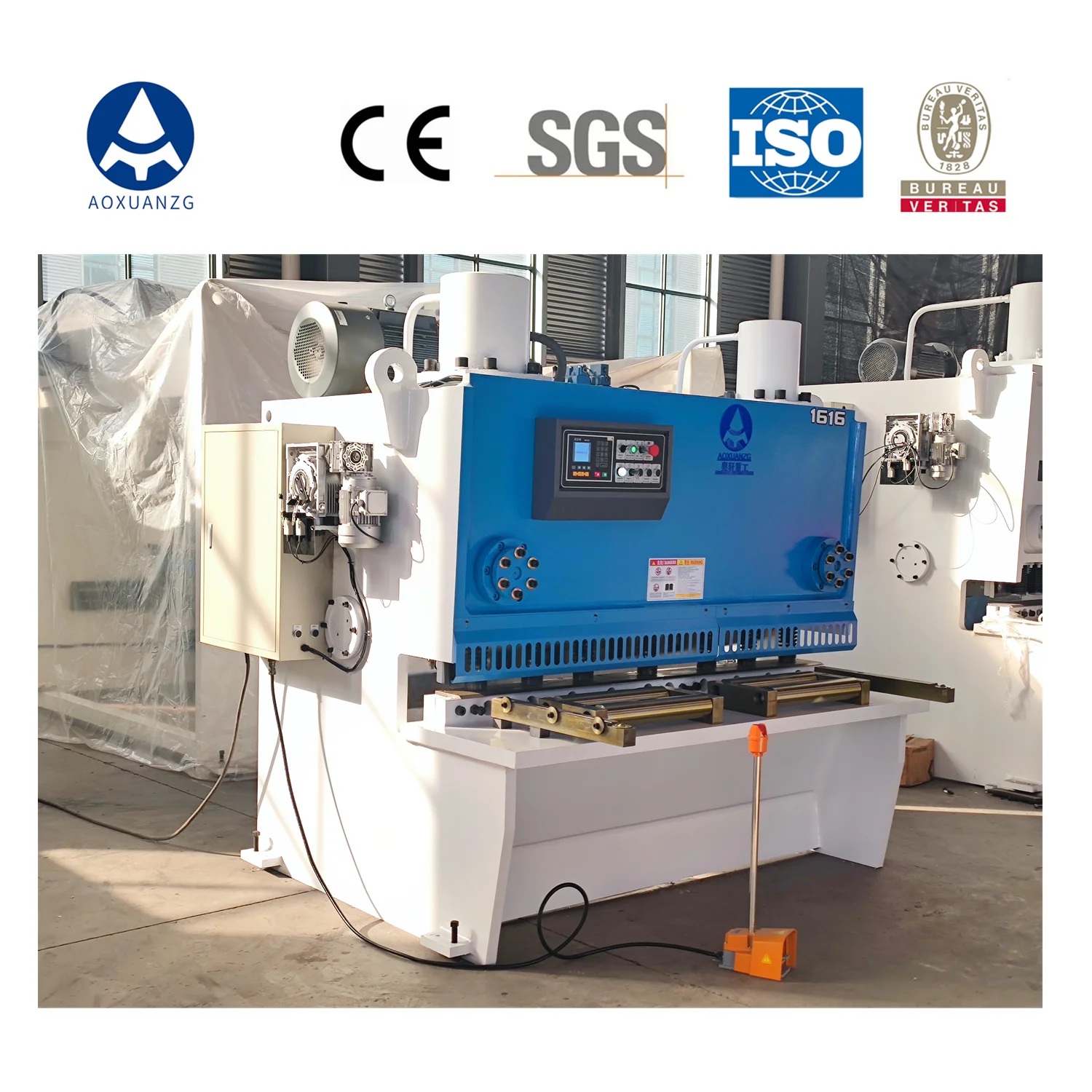

Name: ▷ Buy New 16 1600MM Guillotine Hydraulic Shearing Machine () - Available at MachineryGenie.com
SKU: 1005006412348486
Price: 8888.00 USD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

Main Features:

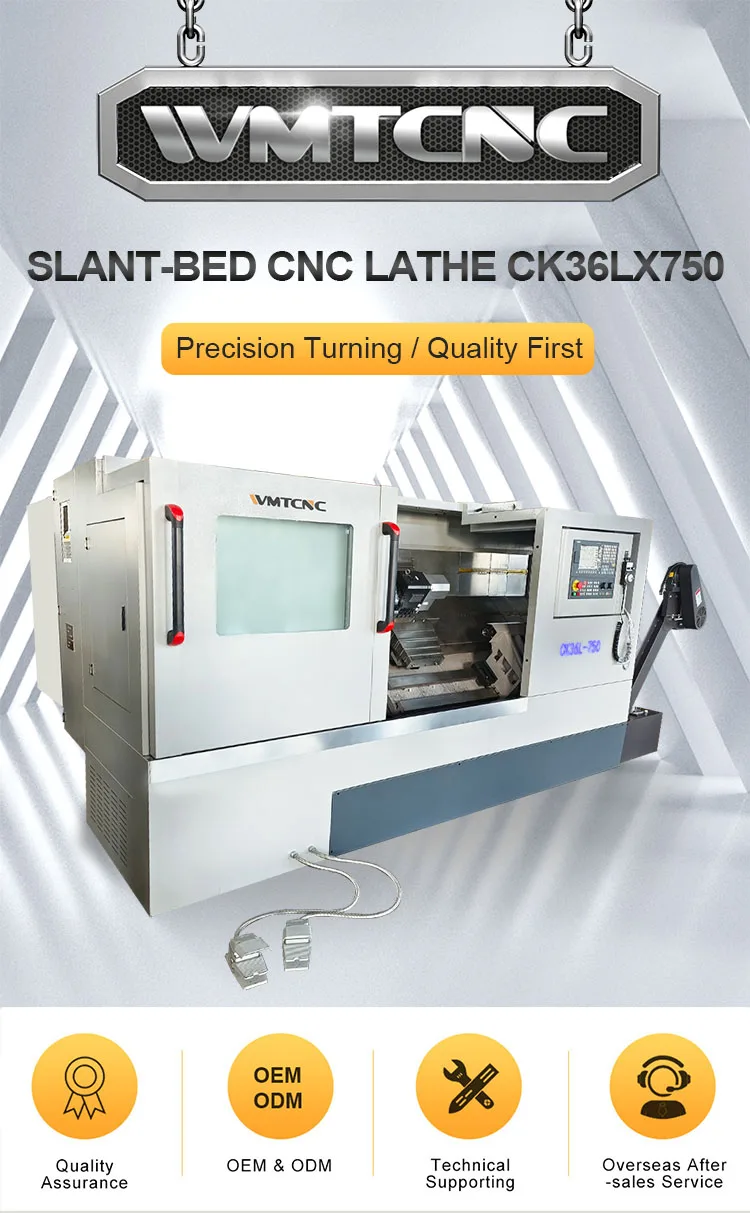

1. High precision slant CNC lathe with Taiwan screw & linear guideway.

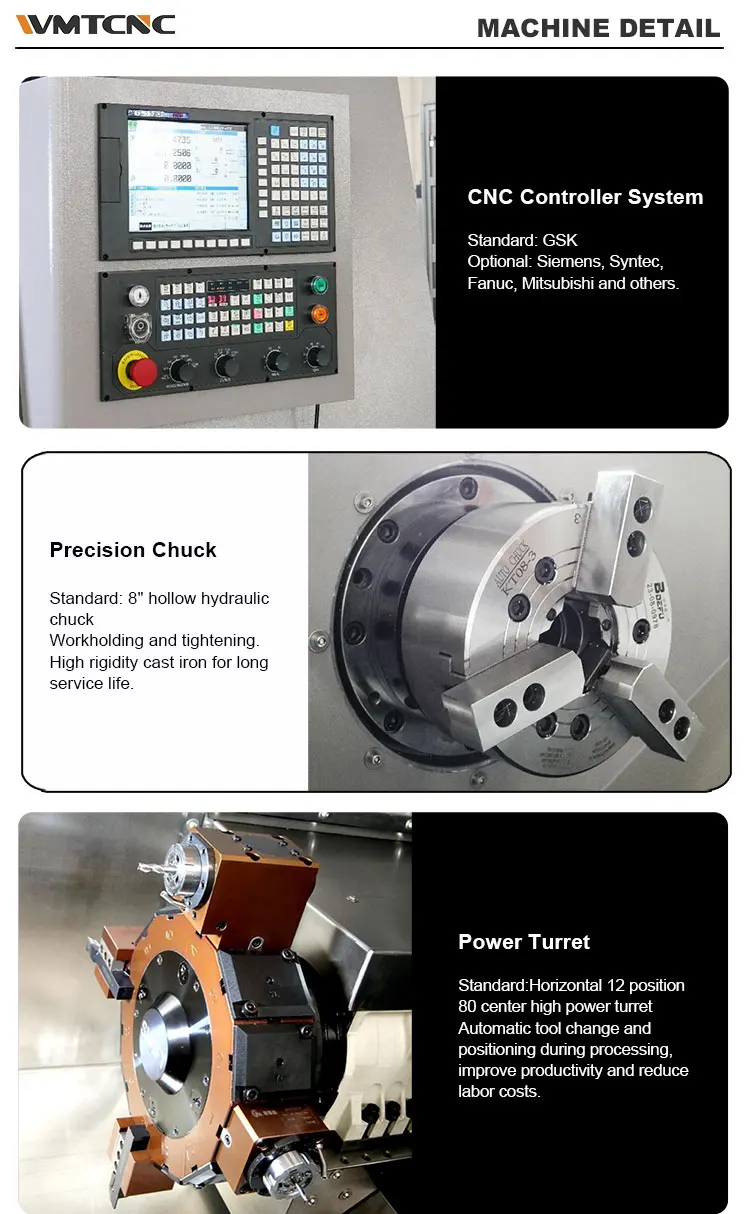

2. High precision cartridge type spindle ensure the rigidity and precision.
3. Taiwan high precision C3 grade ball screw ensure positioning accuracy more stable.
4. Siemens, Fanus, Syntec, Fagor controller as optional.
5. Monoblock cast iron of the whole machine ensure high rigidity.

Specification	CK36L
Capacity
Max. swing dia. over bed	φ360mm
Max. length of workpiece	500,*750mm
Max. swing dia. over slide	φ180mm
Spindle
Spindle speed range	4000rpm
Spindle bore	φ56,*φ66mm
Max. dia. of through-hole	φ40mm,*φ50mm
Spindle nose	A2-5, *A2-6
Chuck size	φ160mm,*φ200mm
Axis
Type of guideway & screw	Taiwan linear guideway & screw
X axis travel	210mm
Z axis travel	500,*750mm
X/Z axis rapid traverse	15/15 m/min
Turret
Type	Electric turret,*Hydraulic turret
No. of tool stations	8 position
Tool shank size	20×20mm

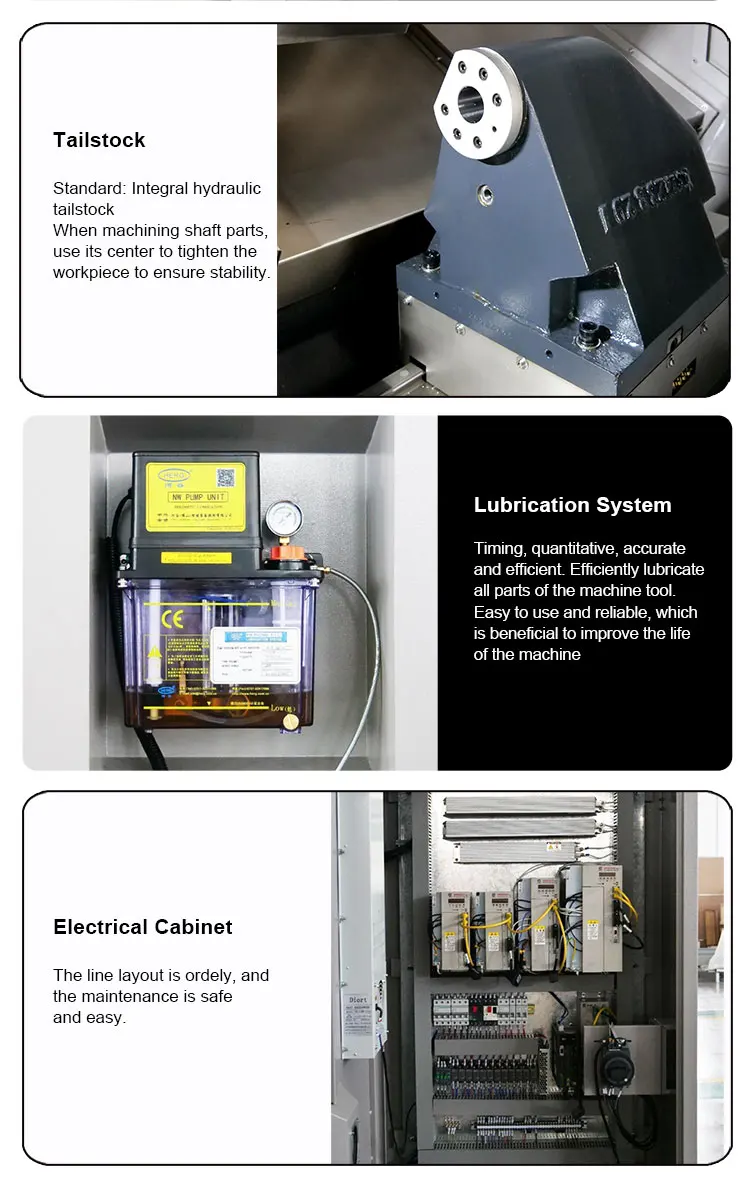

Tailstock
Type of tailstock	Hydraulic sleeves
External diameter	φ60mm
Travel of tailstock quill	80mm
Taper of tailstock quill	MT4
Motor
Spindle motor power	5.5kw,*7.5kw
Coolant pump power	370w
Machine Dimensions
Overal dimension (L×W×H)	2700,*3050×1550×1700mm
Packing size(L×W×H)	2950,*3300×2260×2280mm
Net/Gross weight	2900/3200,*3300/3600kg

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?

A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?

A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?

A4: One set only.

Q5: How about your quality?

A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?

A6: Yes, we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?

A7: Yes, we can design and manufacture according to your specific requirements.
